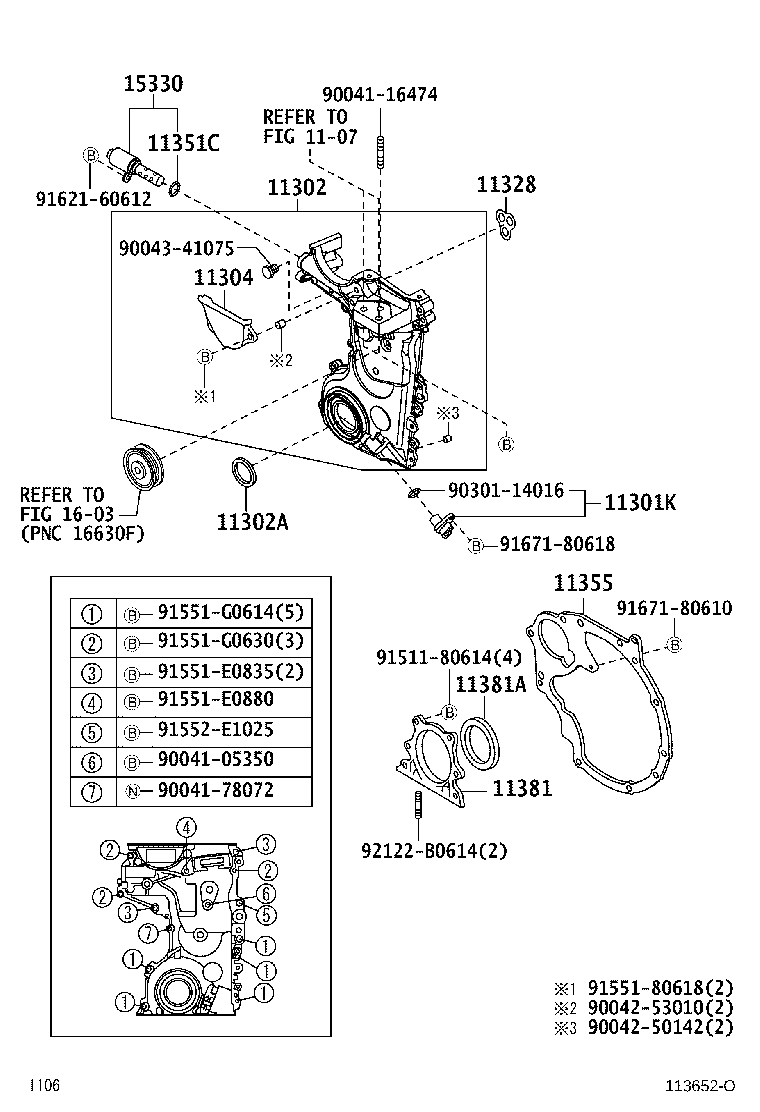

Toyota Passo QNC10 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301K - SENSOR, CRANK POSITION
19311-97401	K3VE..QNC10	05/2004 - 12/2006	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-B1010	K3VE..QNC10	05/2004 - 12/2005	1
11310-B1011	K3VE..QNC10	12/2005 - 12/2006	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-35040	K3VE..QNC10	05/2004 - 12/2006	1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-97401	K3VE..QNC10	05/2004 - 12/2006	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-97401	K3VE..QNC10	05/2004 - 11/2005	1
11328-B1010	K3VE..QNC10	12/2005 - 12/2006	1
11351C - RING, O
90043-01262	K3VE..QNC10	05/2004 - 12/2006	1
11355 - PLATE, REAR END
11355-97401	K3VE..QNC10	05/2004 - 12/2006	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-97402	K3VE..QNC10	01/2005 - 12/2006	1
11381-97401	K3VE..QNC10	05/2004 - 01/2005	1
11381A - SEAL, ENGINE REAR OIL
90043-11292	K3VE..QNC10	05/2004 - 09/2004	1
90043-11402	K3VE..QNC10 内径=73.5 外径=89 幅=8.5	06/2006 - 12/2006	1
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
15330-97403	K3VE..QNC10	05/2004 - 12/2006	1
Common parts
90041-05350
90041-16474
90041-78072
90042-50142
90042-53010
90043-41075
90301-14016
91511-80614
91551-80618
91551-E0835
91551-E0880
91551-G0614
91551-G0630
91552-E1025
91621-60612
91671-80610
91671-80618
92122-B0614
Linked diagrams
1107
1603

QNC10-AHSEK (2004)
