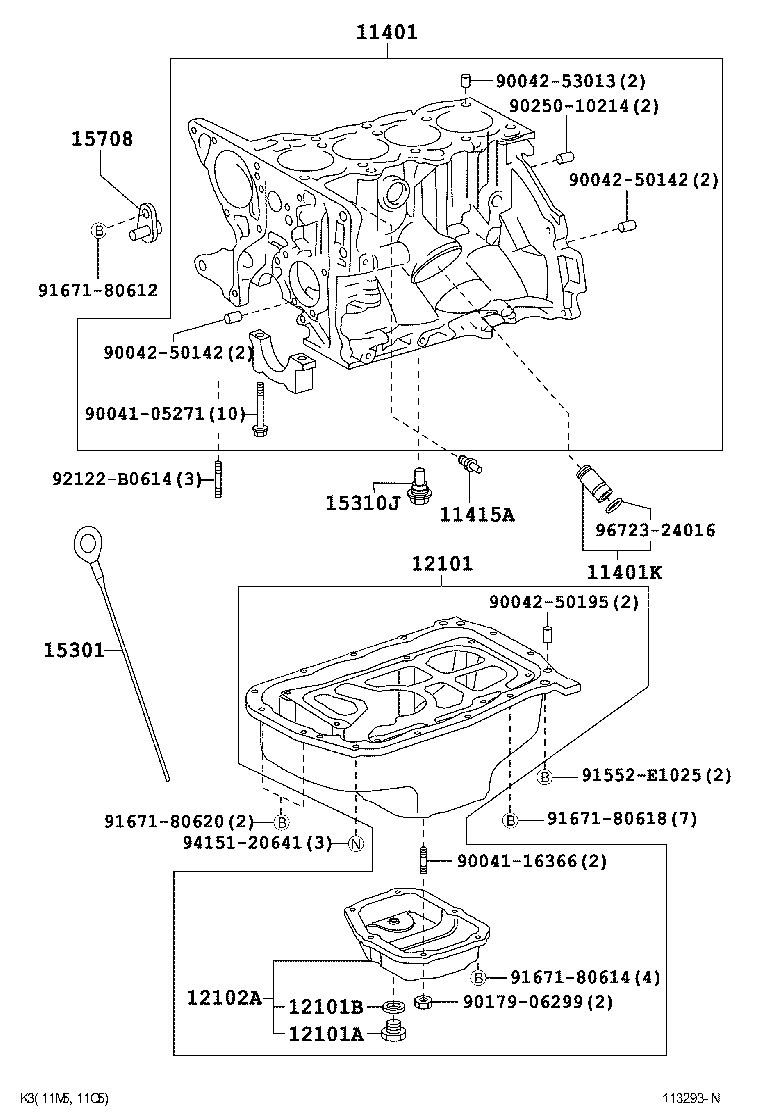

Toyota Passo QNC10 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-B1031	K3VE..QNC10	12/2006 - 02/2010	1
11401-97404	K3VE..QNC10	05/2004 - 05/2006	1
11401K - UNION(FOR OIL FILTER BRACKET)
90044-04120	K3VE..QNC10	05/2004 - 12/2006	1
90044-04120	K3VE..QNC10	12/2006 - 02/2010	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90048-08005	K3VE..QNC10	12/2006 - 02/2010	1
90048-08005	K3VE..QNC10	05/2004 - 12/2006	1
12101 - PAN SUB-ASSY, OIL
12101-B1020	K3VE..QNC10	12/2006 - 02/2010	1
12101-97401	K3VE..QNC10	05/2004 - 12/2005	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	K3VE..QNC10 長さ=11	12/2009 - 02/2010	1
90043-41087	K3VE..QNC10 長さ=21.5	02/2008 - 11/2009	1
90043-41041	K3VE..QNC10 長さ=11	05/2004 - 12/2006	1
90043-41041	K3VE..QNC10 長さ=11	12/2006 - 01/2008	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90044-30281	K3VE..QNC10	05/2004 - 12/2006	1
90044-30281	K3VE..QNC10	12/2006 - 02/2010	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-97401	K3VE..QNC10	05/2004 - 12/2006	1
12102-97401	K3VE..QNC10	12/2006 - 02/2010	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-97401	K3VE..QNC10	05/2004 - 12/2006	1
15301-B1090	K3VE..QNC10 L=528.3	06/2007 - 02/2010	1
15301-B1070	K3VE..QNC10 L=511.5	12/2006 - 06/2007	1
15310J - REGULATOR ASSY, OIL
15310-97401	K3VE..QNC10	05/2004 - 12/2006	1
15310-97401	K3VE..QNC10	12/2006 - 02/2010	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-97402	K3VE..QNC10	12/2006 - 02/2010	1
15708-97402	K3VE..QNC10	05/2004 - 12/2006	1
Common parts
90041-05271
90041-16366
90042-50142
90042-50195
90042-53013
90179-06299
90250-10214
91552-E1025
91671-80612
91671-80614
91671-80618
91671-80620
92122-B0614
94151-20641
96723-24016

QNC10-AHSDK (2006)

(0405-1002)K3VE
