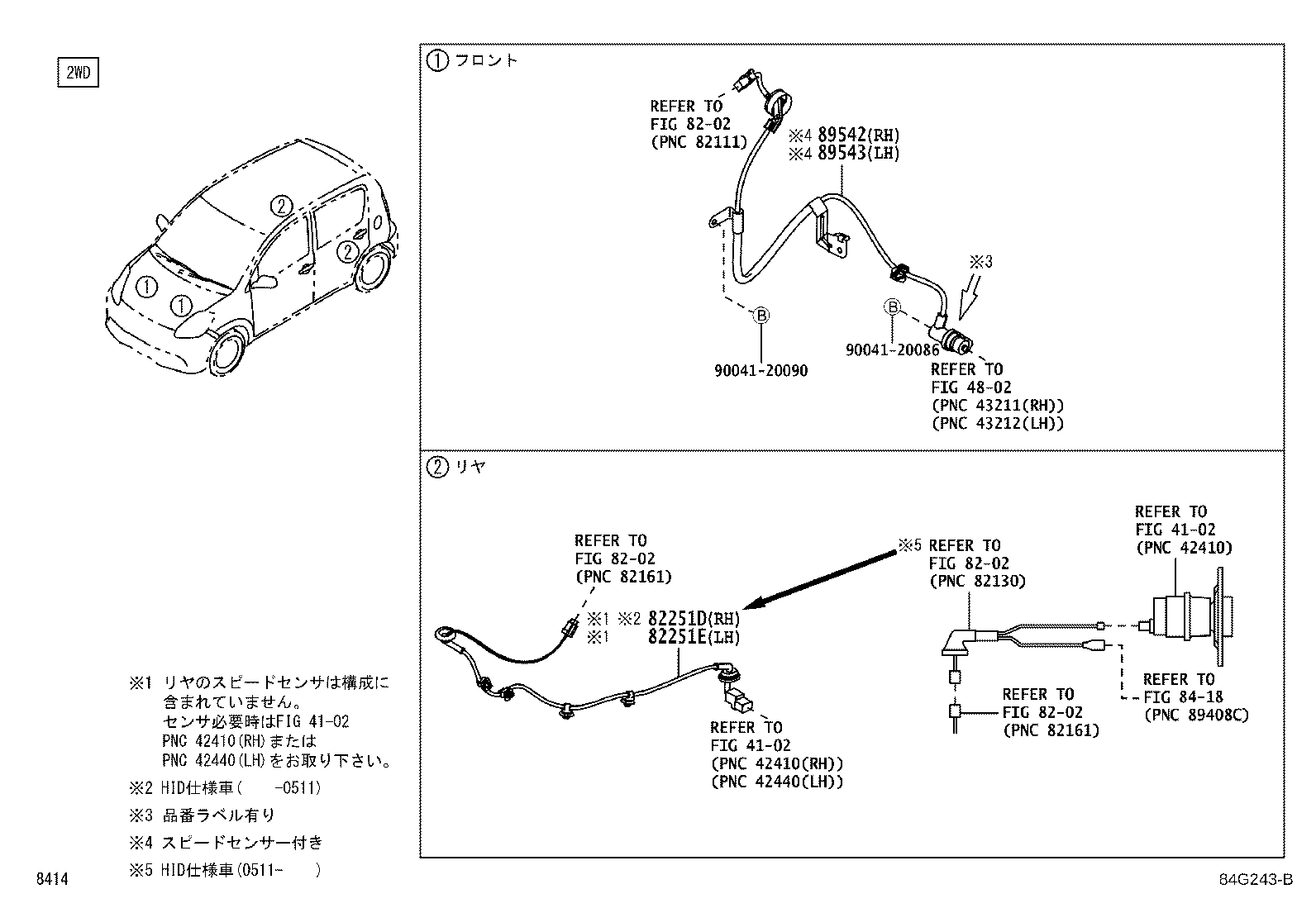

Toyota Passo QNC10 ABS & VSC - JDM Part Detective

Part #	Description	Period	Qty
82251D - WIRE, SPEED SENSOR, RH
82251-B1010	KGC10,QNC10	06/2005 - 11/2005	1
82251-B1010	KGC10,QNC10	05/2004 - 06/2005	1
82251-B1011	KGC10,QNC10	11/2005 - 12/2006	1
GAITO-NASHI	KGC10,QNC10..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−HID(ｸﾞﾚｰﾊｳｼﾞﾝｸﾞ)	11/2005 - 12/2006	1
82251E - WIRE, SPEED SENSOR, LH
82251-B1020	KGC10,QNC10	05/2004 - 12/2006	1
89542 - SENSOR, SPEED, FRONT RH
89542-B1010	KGC1#,QNC10 品番ﾗﾍﾞﾙ有り	05/2004 - 09/2006	1
89542-B1011	KGC1#,QNC10 品番ﾗﾍﾞﾙ有り	09/2006 - 12/2006	1
89543 - SENSOR, SPEED, FRONT LH
89543-B1010	KGC1#,QNC10 品番ﾗﾍﾞﾙ有り	05/2004 - 09/2006	1
89543-B1011	KGC1#,QNC10 品番ﾗﾍﾞﾙ有り	09/2006 - 12/2006	1
Common parts
90041-20086
90041-20090
Linked diagrams
4102
4802
8202
8418

QNC10-AHSDK (2004)
