QNC10-AHSDK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)

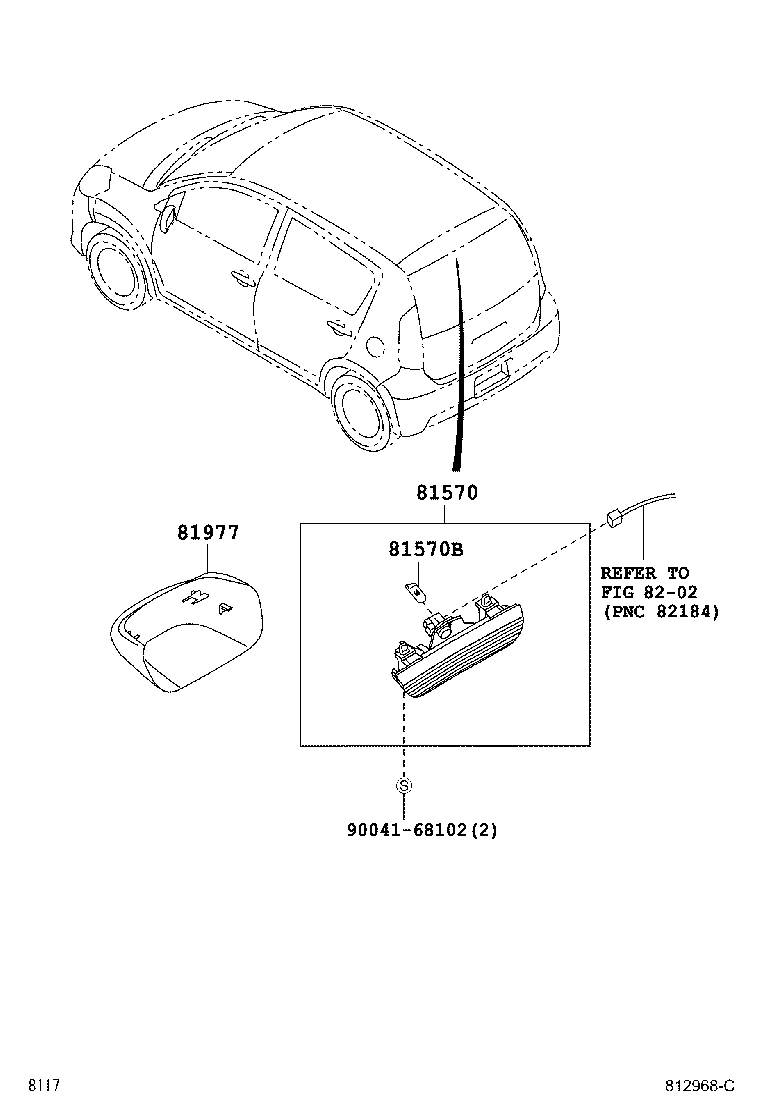

Click highlighted areas on diagram

diagram 81570 81570B 81977 8202 9004168102
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-B1020

KGC1#,QNC10

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

KGC1#,QNC10

12V 16W

 1
81977 - COVER, CENTER STOP LAMP
81977-B1010

KGC1#,QNC10

 1
Common parts
90041-68102
Linked diagrams
8202
