QNC10-AHSDK (2004)

Toyota Passo

Production May 2004 - Dec 2006
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0405-1002)QNC10

Click highlighted areas on diagram

2WD K3VE

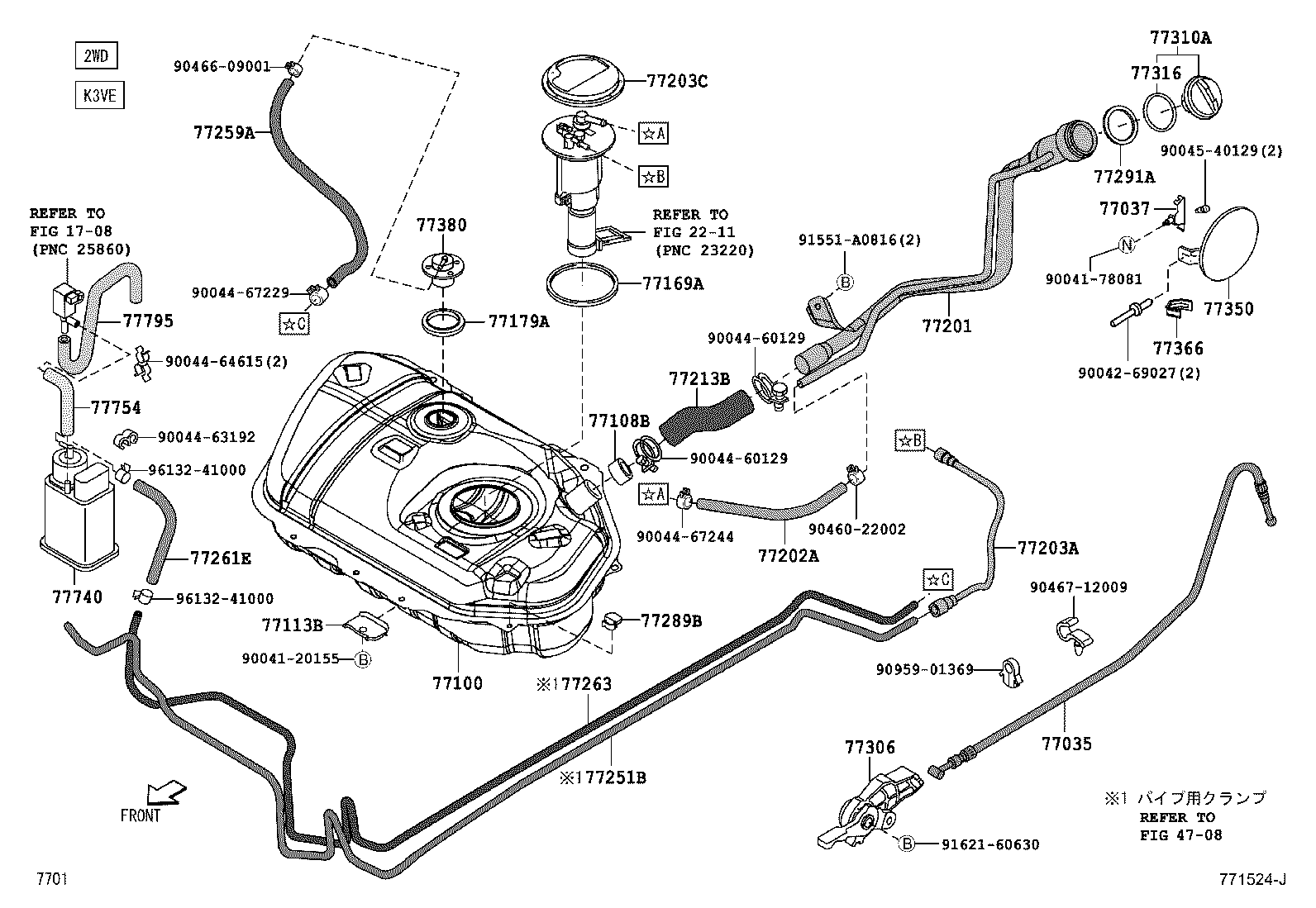

diagram 1708 2211 4708 77035 77037 77100 77108B 77113B 77169A 77179A 77201 77202A 77203A 77203C 77213B 77251B 77259A 77261E 77263 77289B 77291A 77306 77310A 77316 77350 77366 77380 77740 77754 77795 9004120155 9004178081 9004269027 9004460129 9004460129 9004463192 9004464615 9004467229 9004467244 9004540129 9046022002 9046609001 9046712009 9095901369 91551A0816 9162160630 9613241000 9613241000
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-B1010

KGC1#,QNC10

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-97201

KGC1#,QNC10

 1
77100 - TANK ASSY, FUEL
77001-B1011

KGC10,QNC10

 1
77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK
77108-B2010

KGC1#,QNC10

 1
77113B - PLATE, FUEL TANK SIDE
77141-B1020

KGC1#,QNC10

 4
77141-B1010

QNC10;KGC1#..G,X

 4
77169A - GASKET, FUEL SUCTION TUBE SET
23232-87401

KGC1#,QNC10

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-33010

KGC1#,QNC10

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-B1020

KGC10,QNC10

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77269-97201

KGC10,QNC10

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-B1010

KGC10,QNC10

 1
77203C - BRACKET, FUEL PUMP
23265-B2010

KGC1#,QNC10

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-B1010

KGC10,QNC10

 1
77251B - TUBE, FUEL MAIN
77251-B1010

KGC1#,QNC10

 1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-B1010

KGC10,QNC10

長さ=620

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95331-04028

KGC1#,QNC10

*H,L=280

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1010

KGC1#,QNC10

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-B2010

KGC1#,QNC10

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-B2020

KGC1#,QNC10

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-97202

KGC1#,QNC10

 1
77310A - CAP ASSY, FUEL TANK
77310-48010

KGC1#,QNC10

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

KGC1#,QNC10

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-B1010

KGC1#,QNC10

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52010

KGC1#,QNC10

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-B2010

KGC1#,QNC10

 1
77740 - CANISTER ASSY, CHARCOAL
77740-B1010

KGC1#,QNC10

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-B1040

QNC10

 1
77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77795-B1010

QNC10

 1
Common parts
90041-20155
90041-78081
90042-69027
90044-60129
90044-63192
90044-64615
90044-67229
90044-67244
90045-40129
90460-22002
90466-09001
90467-12009
90959-01369
91551-A0816
91621-60630
96132-41000
