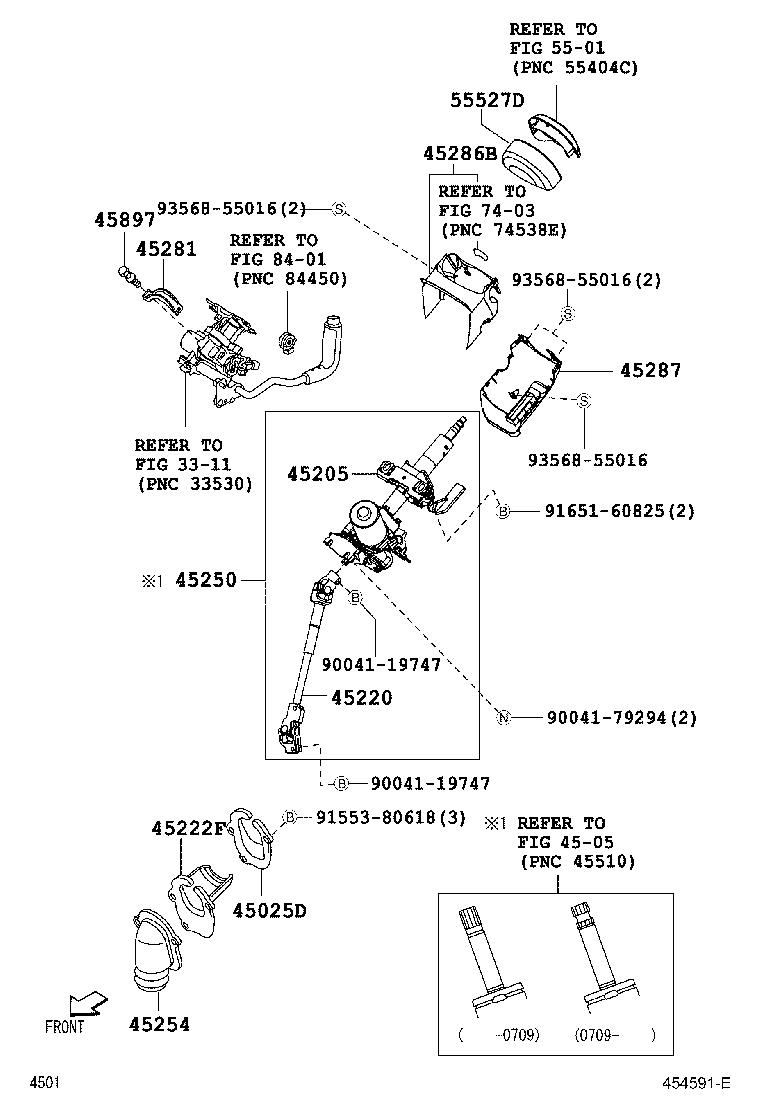

Toyota Passo QNC10 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45223-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-B1050	KGC1#,QNC10	05/2004 - 09/2004	1
45205-B1070	KGC1#,QNC10	10/2004 - 12/2006	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B1010	KGC1#,QNC10	10/2004 - 12/2006	1
45220-B1010	KGC1#,QNC10	05/2004 - 09/2004	1
45222F - COVER, DUST
45222-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
45250 - COLUMN ASSY, STEERING
45250-B1010	KGC1#,QNC10	05/2004 - 09/2004	1
45250-B1011	KGC1#,QNC10	10/2004 - 12/2006	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B1010	KGC1#,QNC10	05/2004 - 12/2006	1
45281 - HOUSING, STEERING COLUMN
45281-B2010	KGC1#,QNC10	05/2004 - 12/2006	1
45286B - COVER, STEERING COLUMN, UPR
45286-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
45286-B1020B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1#	05/2004 - 12/2005	1
45286-B1020B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY,TRIM1#	12/2005 - 10/2006	1
45287 - COVER, STEERING COLUMN, LWR
45287-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
45287-B1010B0	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ,DK.GRAY	05/2004 - 10/2006	1
45897 - BOLT, STEERING LOCK SET
45897-B2010	KGC1#,QNC10	11/2005 - 12/2006	1
45897-87401	KGC15..G;KGC10,QNC10..G,X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ−F ﾊﾟｯｸ	05/2004 - 12/2005	1
45897-87401	KGC1#,QNC10	05/2004 - 11/2005	1
55527D - COVER, METER OPENING
55527-B1010B0	KGC1#,QNC10 DK.GRAY,TRIM1#	05/2004 - 12/2006	1
Common parts
90041-19747
90041-79294
91553-80618
91651-60825
93568-55016
Linked diagrams
3311
4505
5501
7403
8401

QNC10-AHSDK (2004)

(0405-1002)
