NGC30-AHEFK (2010)
Toyota Passo

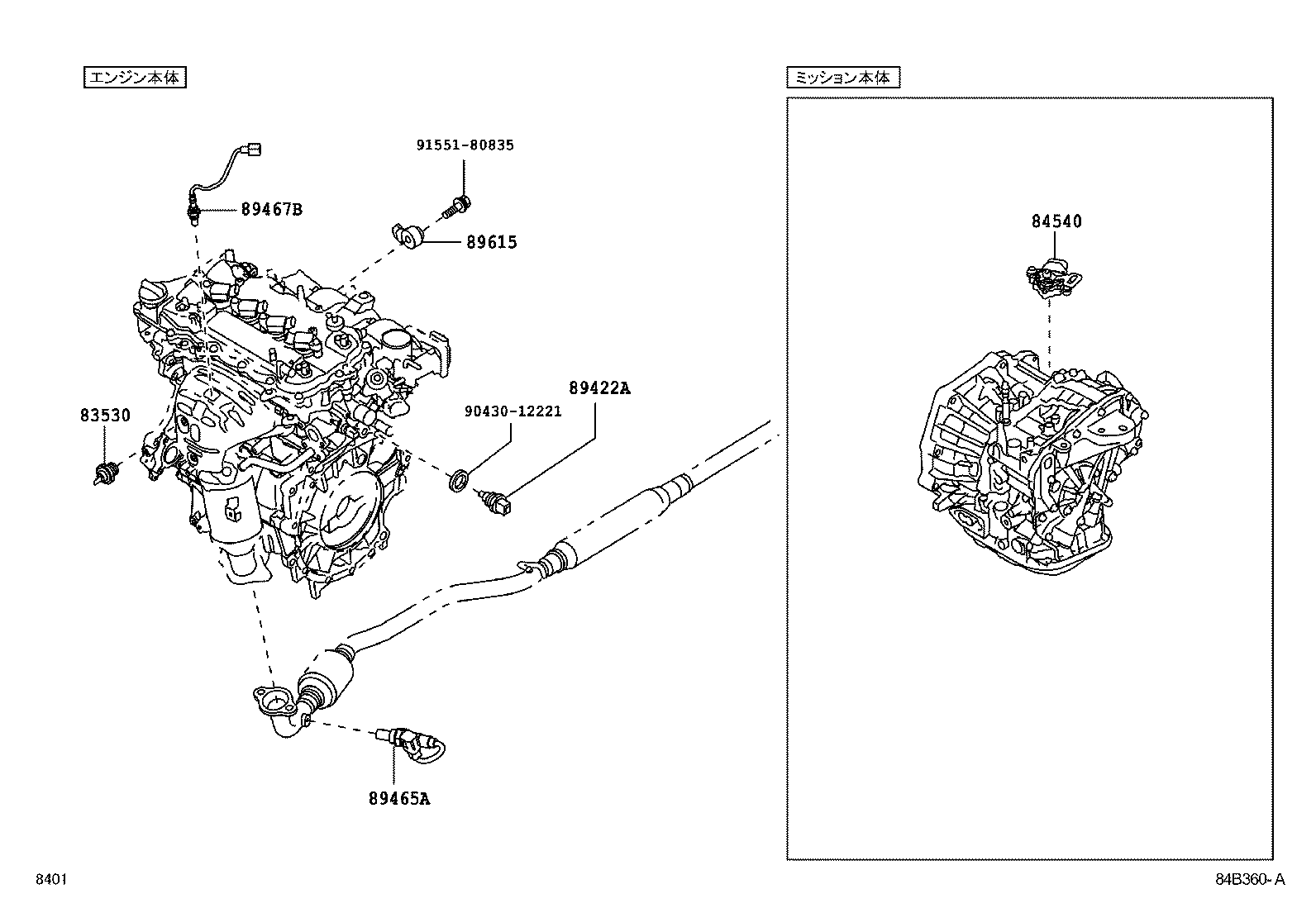

ILLUST NO. 2 OF 7(1002- )NGC30
ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NGC30 DENSO |
1 | ||
| 83530-60020 |
NGC30 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-B1010 |
NGC30 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
KGC3#,NGC30 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B1110 |
NGC30 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52090 |
NGC30 |
1 | ||
| 89467-52070 |
NGC30 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||

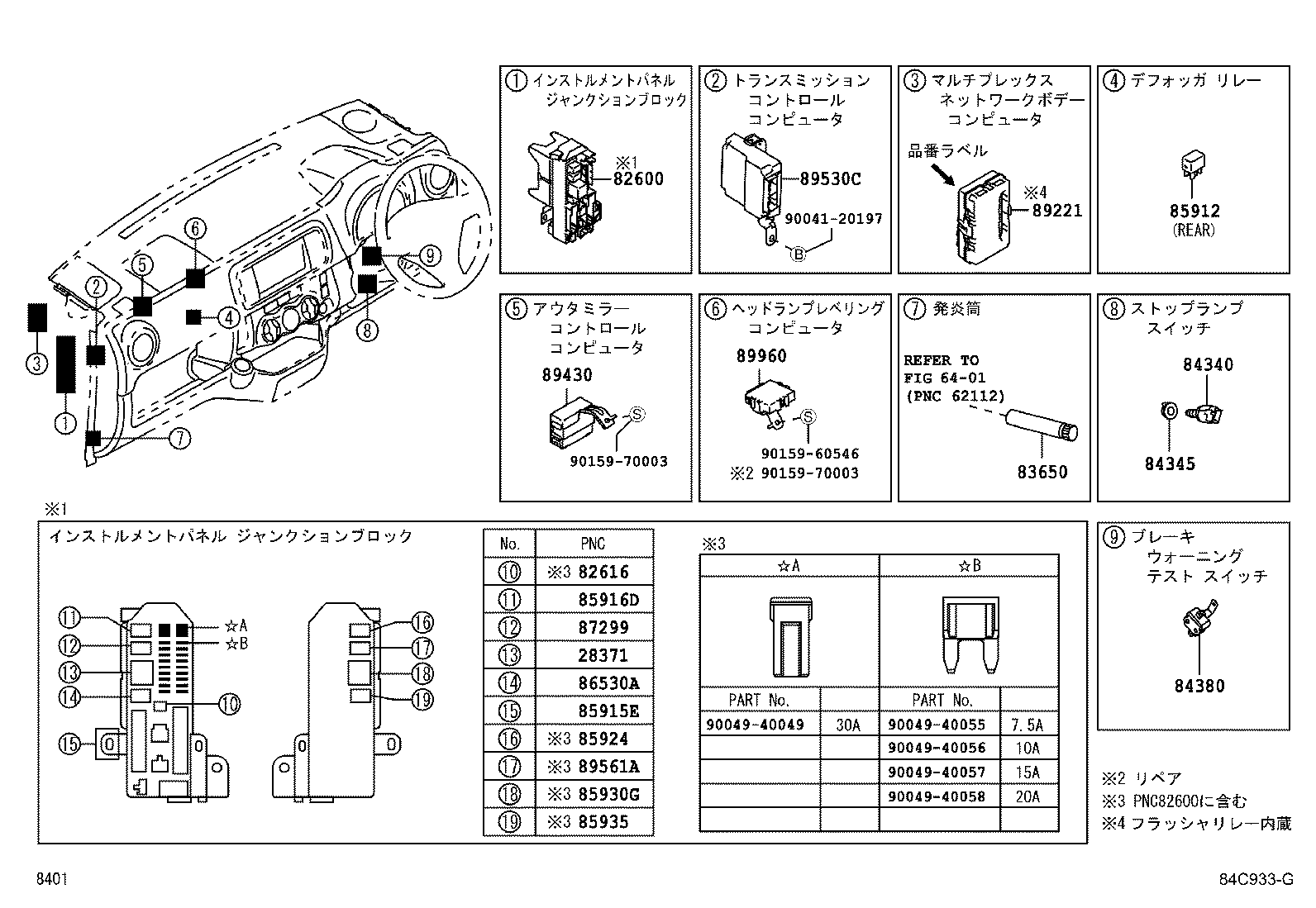

ILLUST NO. 4 OF 7(1002- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90049-88001 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-B1060 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 82600-B1050 |
KGC3#,NGC30 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-B2010 |
KGC3#,NGC30 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
KGC3#,NGC30 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2010 |
KGC3#,NGC30 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
KGC3#,NGC30 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-B2010 |
KGC3#,NGC30 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90049-88004 |
KGC3#,NGC30..G,HANA ﾘﾔ |
1 | ||
| 90049-88002 |
KGC3#,NGC30..G,HANA 寒冷地仕様,ﾘﾔ |
1 | ||
| 85915E - RELAY | ||||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様,電子制御 ｽﾛｯﾄﾙ ﾘﾚｰ |
1 | ||
| 90049-88004 |
KGC3#,NGC30 電子制御 ｽﾛｯﾄﾙ ﾘﾚｰ |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90049-88004 |
KGC3#,NGC30..G,X D−OPT(35W) |
1 | ||
| 90049-88002 |
KGC3#,NGC30..G,X D−OPT(35W) |
1 | ||
| 90049-88004 |
KGC3#,NGC30..HANA |
1 | ||
| 90049-88002 |
KGC3#,NGC30..HANA 寒冷地仕様 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-B1010 |
KGC3#,NGC30 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-B1020 |
NGC30..G |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-B1411 |
NGC30 |
1 | ||
| 89530-B1410 |
NGC30 |
1 | ||
| 89561A - RELAY, EFI | ||||
| 90049-88002 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-B1140 |
KGC30,NGC30..HANA +HANA(HID 4灯) |
1 | ||
| Common parts | ||||
| 90041-20197 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40058 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 6401 | ||||

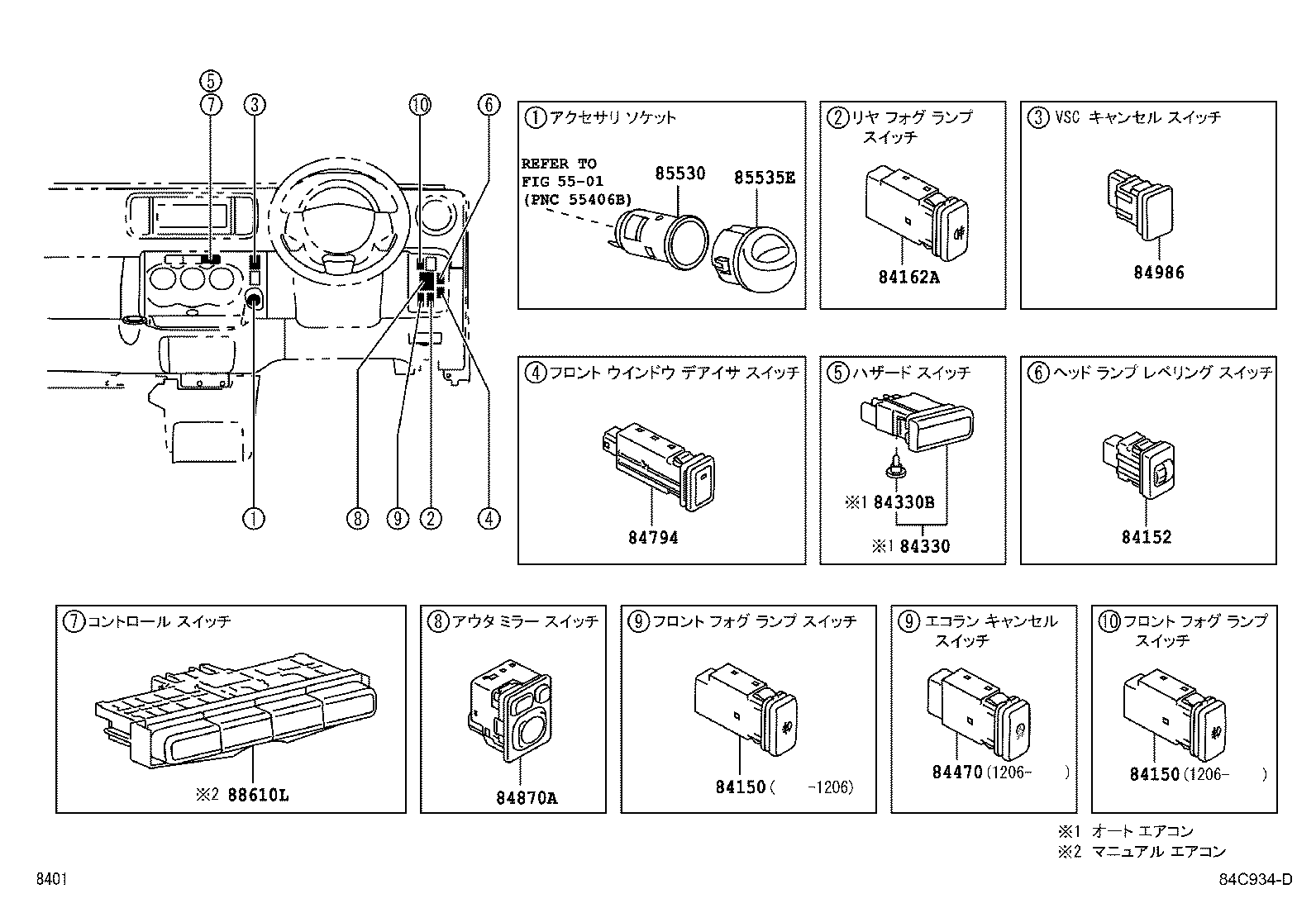

ILLUST NO. 5 OF 7(1002- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-B1030 |
KGC3#,NGC30..G,X D−OPT(35W) |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-B1030 |
KGC3#,NGC30..G,X D−OPT(35W) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 84152-B1080 |
KGC3#,NGC30..HANA |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-B1040 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B1030E0 |
KGC3#,NGC30..G,HANA EBONY BROWN,TRIM4# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B1010 |
KGC3#,NGC30..G,HANA 14V 0.93W |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52020 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-97401 |
KGC3#,NGC30 |
1 | ||
| 84986 - SWITCH, VEHICLE STABILITY CONTROL | ||||
| 84986-12010 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KGC3#,NGC30 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-47020 |
KGC3#,NGC30 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||

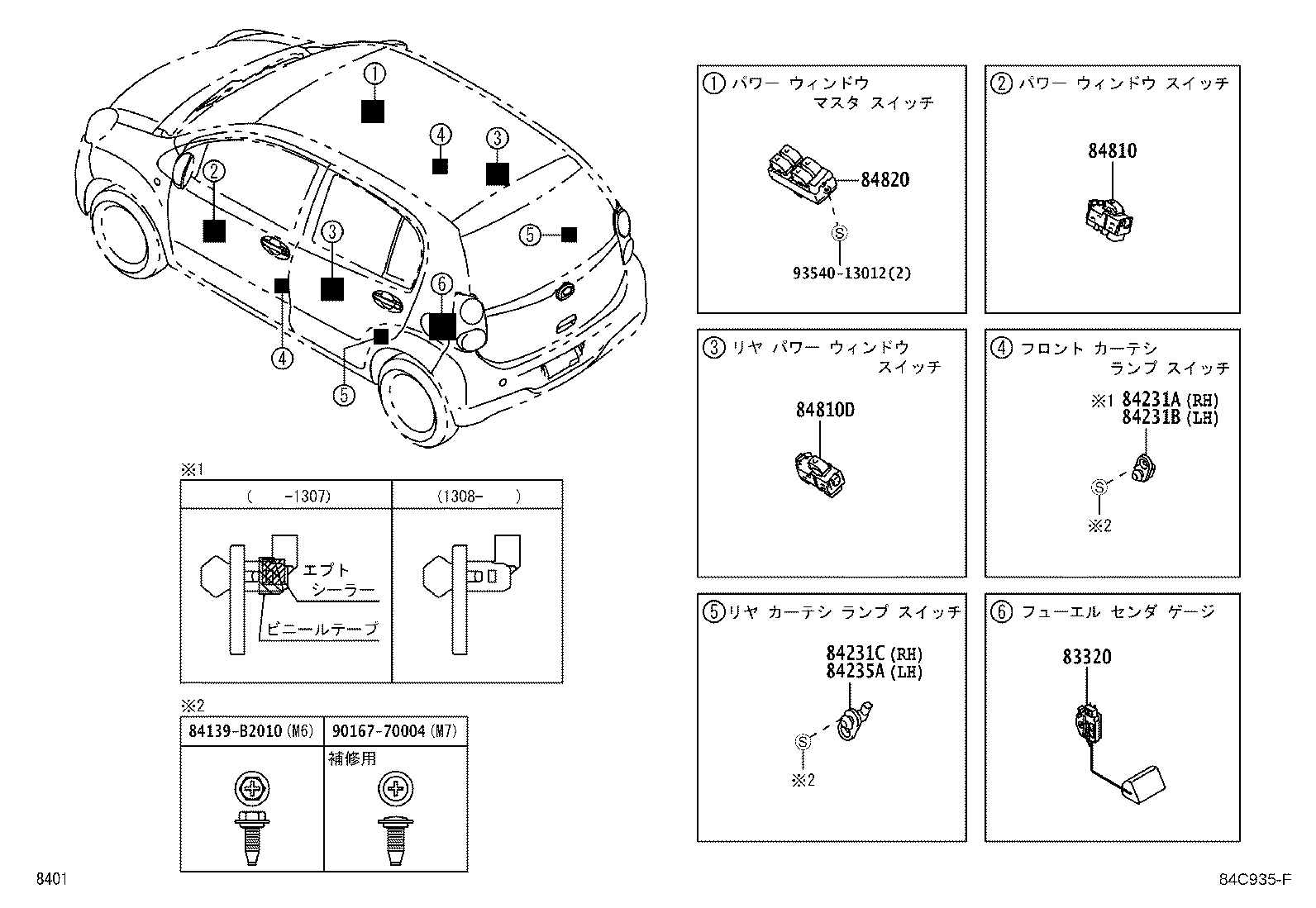

ILLUST NO. 7 OF 7(1002- )
ﾄﾞｱ&ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B1011 |
KGC3#,NGC30 |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-B1010 |
KGC3#,NGC30 |
1 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-B1010 |
KGC3#,NGC30 |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-B1010 |
KGC3#,NGC30 |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84231-B1010 |
KGC3#,NGC30 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-B1010 |
KGC3#,NGC30 |
1 | ||
| 84030-B1010 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-B1010 |
KGC3#,NGC30 |
2 | ||
| 84030-B1050 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,右側 |
1 | ||
| 84030-B1060 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,左側 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B1100 |
KGC3#,NGC30 |
1 | ||
| 84040-B1010 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 84820-B1101 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 84139-B2010 | ||||
| 90167-70004 | ||||
| 93540-13012 | ||||

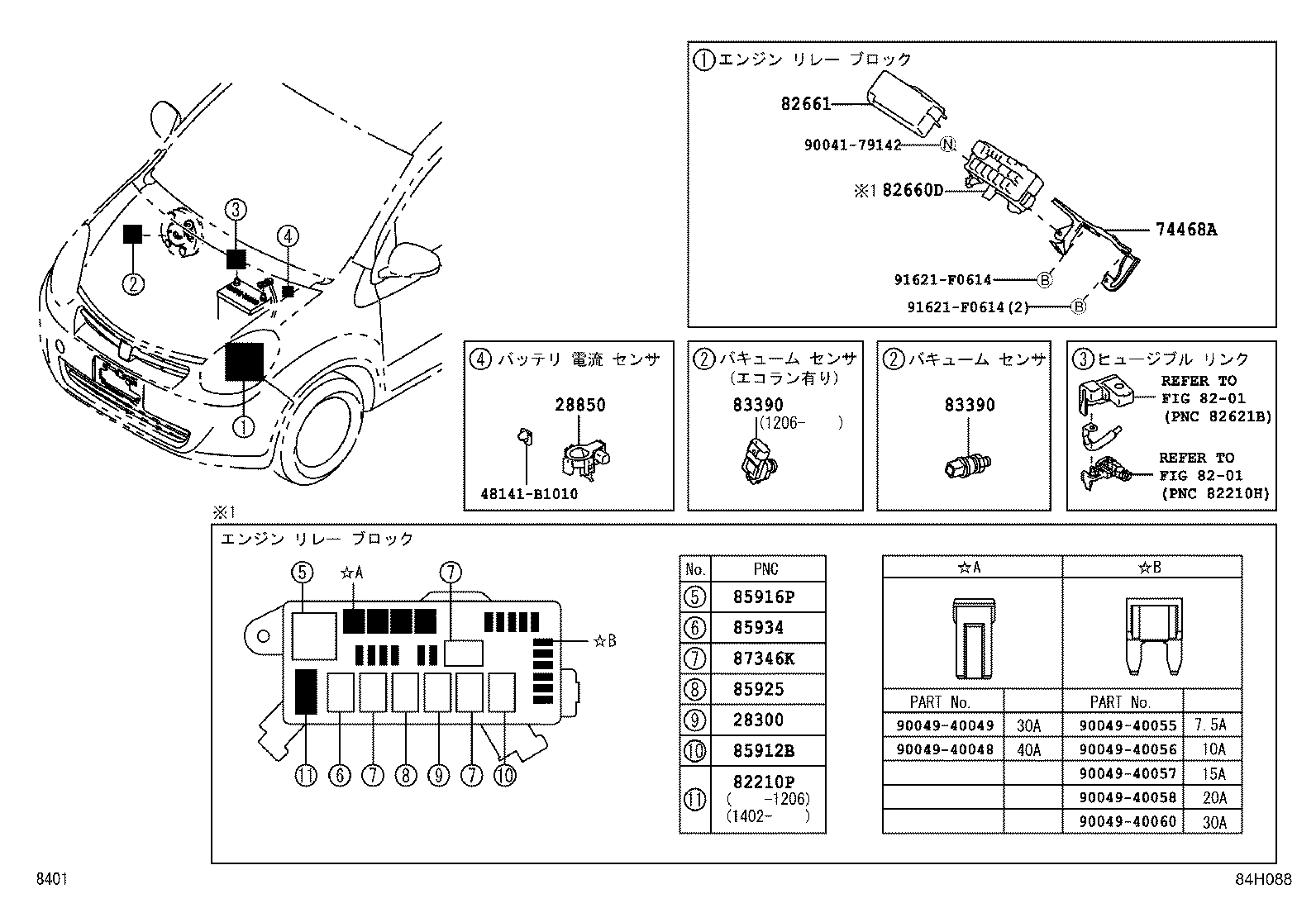

ILLUST NO. 3 OF 7(1002- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90049-88004 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B1060 |
KGC3#,NGC30 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
KGC3#,NGC30 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-B1030 |
KGC3#,NGC30 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B1340 |
KGC3#,NGC30..HANA +HANA(HID 4灯) |
1 | ||
| 82661-B1330 |
KGC3#,NGC30 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-B1010 |
KGC3#,NGC30 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-B1010 |
KGC3#,NGC30 |
1 | ||
| 85912B - RELAY, DEFOGGER(FOR FRONT WINDOW) | ||||
| 90049-88004 |
KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90049-87026 |
KGC3#,NGC30 |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90049-88004 |
KGC3#,NGC30 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90049-88004 |
KGC3#,NGC30 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 48141-B1010 | ||||
| 90041-79142 | ||||
| 90049-40048 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40058 | ||||
| 90049-40060 | ||||
| 91621-F0614 | ||||
| Linked diagrams | ||||
| 8201 | ||||

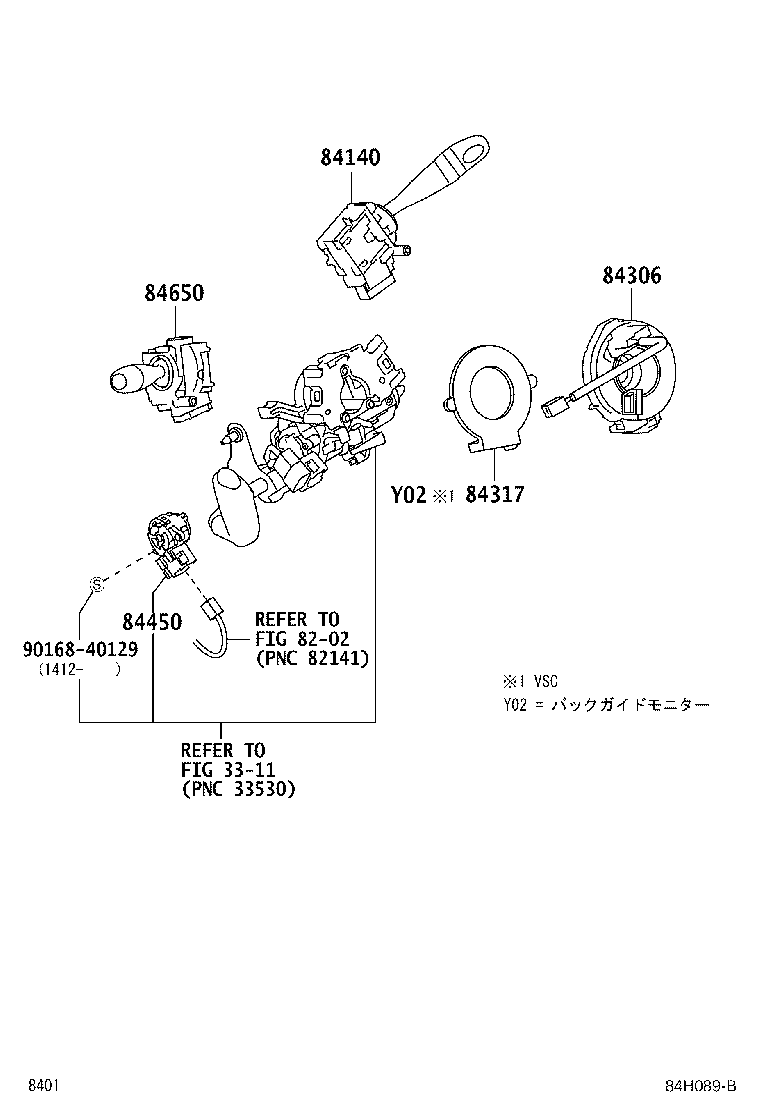

ILLUST NO. 6 OF 7(1002- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-B1040 |
KGC3#,NGC30..G,X ﾌｫｸﾞﾗﾝﾌﾟｽｲｯﾁﾅｼ |
1 | ||
| 84140-B1030 |
KGC3#,NGC30..HANA ﾌｫｸﾞﾗﾝﾌﾟｽｲｯﾁｱﾘ |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-B1010 |
KGC3#,NGC30 |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-B1020 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-B2010 |
KGC3#,NGC30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| Common parts | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8202 | ||||
