NGC30-AHEEK (2014)
Toyota Passo
(1404- )G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-B2010 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-B2010 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81110-B1360 |
KGC3#,NGC30..G,X |
1 | ||
| 81110-B1370 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81110-B1360 |
KGC3#,NGC30..G,X |
1 | ||
| 81110-B1370 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90049-51088 |
KGC3#,NGC30..G,X 12V 60/55W |
2 | ||
| 90049-51088 |
KGC3#,NGC30..G,X 12V 60/55W |
2 | ||
| 90049-51155 |
KGC3#,NGC30..G,X 12V 60W HB3,ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90049-51088 |
KGC3#,NGC30..G,X 12V 60/55W |
2 | ||
| 90049-51088 |
KGC3#,NGC30..G,X 12V 60/55W |
2 | ||
| 90049-51155 |
KGC3#,NGC30..G,X 12V 60W HB3,ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90049-51169 |
KGC3#,NGC30..G,X 12V 35W D4R,ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-B1070 |
KGC3#,NGC30..G,X NO.1 |
2 | ||
| 81125-B1090 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.2 |
2 | ||
| 81125-B1080 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.1 |
2 | ||
| 81125-B1070 |
KGC3#,NGC30..G,X |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-B1070 |
KGC3#,NGC30..G,X NO.1 |
2 | ||
| 81125-B1090 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.2 |
2 | ||
| 81125-B1080 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.1 |
2 | ||
| 81125-B1070 |
KGC3#,NGC30..G,X |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-B1070 |
KGC3#,NGC30..G,X NO.1 |
2 | ||
| 81125-B1090 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.2 |
2 | ||
| 81125-B1080 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯),NO.1 |
2 | ||
| 81125-B1070 |
KGC3#,NGC30..G,X |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 9004C-30005 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1160 |
KGC3#,NGC30..G,X |
1 | ||
| 81145-B1030 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81130-B1200 |
KGC3#,NGC30..G,X |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1160 |
KGC3#,NGC30..G,X |
1 | ||
| 81145-B1030 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81130-B1200 |
KGC3#,NGC30..G,X |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-B2010 |
KGC3#,NGC30..G,X |
2 | ||
| 81139-B2010 |
KGC3#,NGC30..G,X |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81150-B1370 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81150-B1360 |
KGC3#,NGC30..G,X |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81150-B1370 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81150-B1360 |
KGC3#,NGC30..G,X |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-B1160 |
KGC3#,NGC30..G,X |
1 | ||
| 81170-B1200 |
KGC3#,NGC30..G,X |
1 | ||
| 81185-B1030 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-B1160 |
KGC3#,NGC30..G,X |
1 | ||
| 81170-B1200 |
KGC3#,NGC30..G,X |
1 | ||
| 81185-B1030 |
KGC3#,NGC30..G,X ﾍｯﾄﾞﾗﾝﾌﾟ−STD(HID 2灯) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-B1190 |
KGC3#,NGC30..G,X |
1 | ||
| 81193-B1280 |
KGC3#,NGC30..G,X |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81193-B1210 |
KGC3#,NGC30..G,X |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-B1190 |
KGC3#,NGC30..G,X |
1 | ||
| 81194-B1280 |
KGC3#,NGC30..G,X |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-B1290 |
KGC3#,NGC30..G,X |
1 | ||
| 81194-B1210 |
KGC3#,NGC30..G,X |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51179 |
KGC3#,NGC30 12V 21W |
2 | ||
| 90049-51179 |
KGC3#,NGC30 12V 21W |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51179 |
KGC3#,NGC30 12V 21W |
2 | ||
| 90049-51179 |
KGC3#,NGC30 12V 21W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11013 |
KGC3#,NGC30 12V 5W T10 |
2 | ||
| 90981-11013 |
KGC3#,NGC30 12V 5W T10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-11013 |
KGC3#,NGC30 12V 5W T10 |
2 | ||
| 90981-11013 |
KGC3#,NGC30 12V 5W T10 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 9004C-82001 |
KGC3#,NGC30 |
2 | ||
| 9004C-82001 |
KGC3#,NGC30 |
2 | ||
| Common parts | ||||
| 90041-68134 | ||||
| 90044-68320 | ||||
| 9004C-82002 | ||||
| 91631-G0616 | ||||

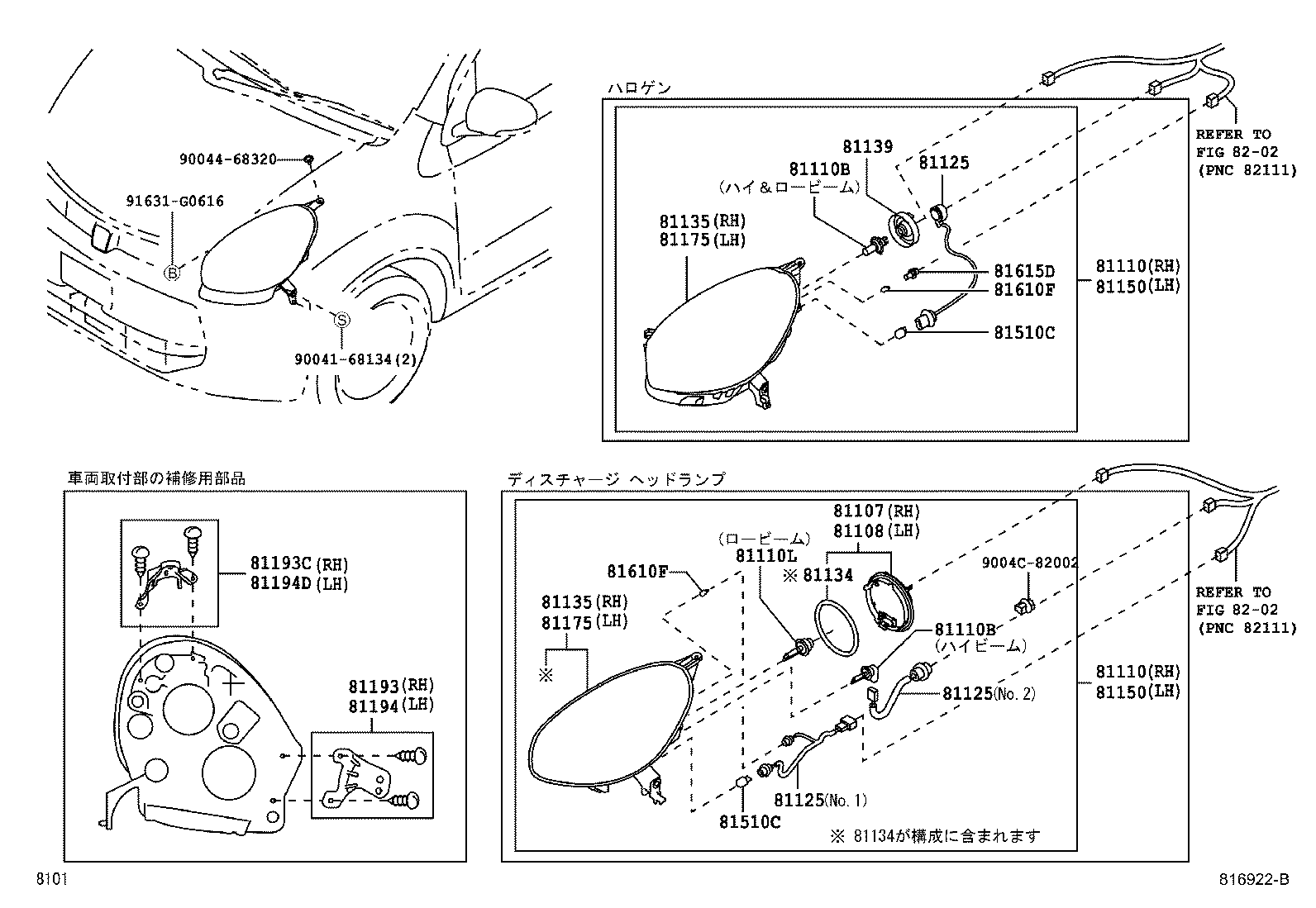

| Linked diagrams | ||||
| 8202 | ||||
