NGC30-AHEEK (2010)
Toyota Passo
Production
Feb 2010
-
Jun 2012
Engine
1NRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002- )

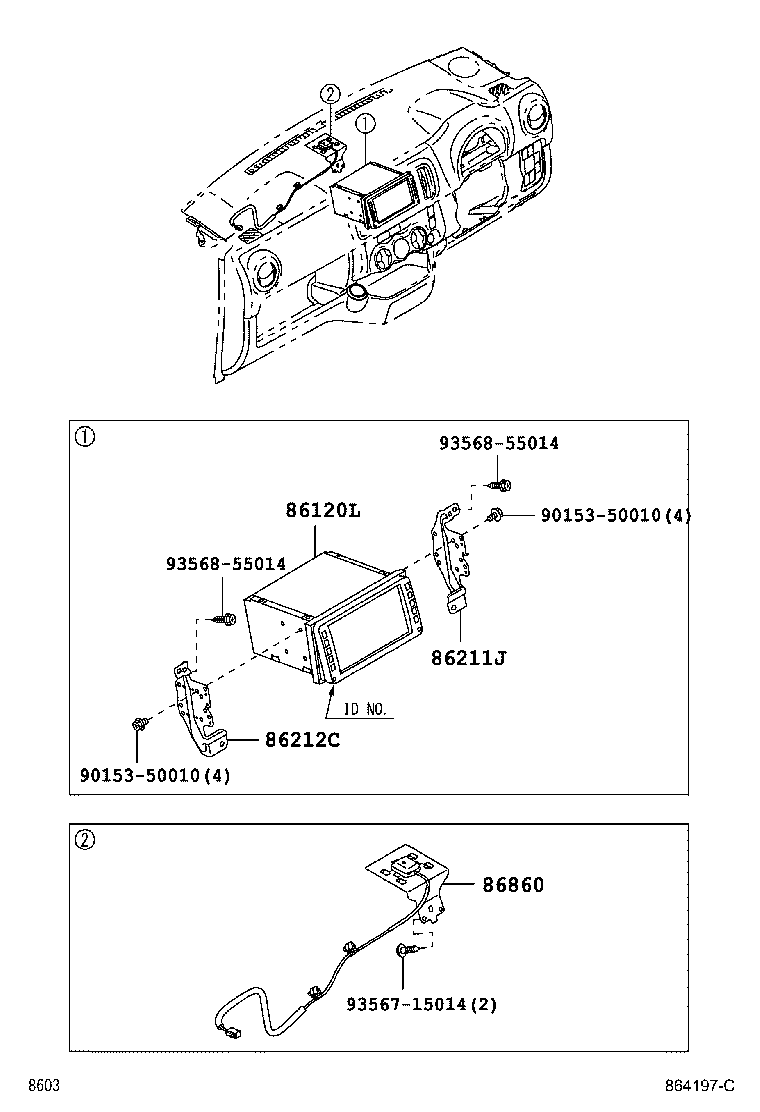

Click highlighted areas on diagram
W/NAVIGATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86100-B1060 |
KGC3#,NGC30 FUJITSU TEN,ID=26053,ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86100-B1061 |
KGC3#,NGC30 FUJITSU TEN,ID=26053,ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86100-B1062 |
KGC3#,NGC30 FUJITSU TEN,ID=26053,ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86211-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-B1060 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 93567-15014 | ||||
| 93568-55014 | ||||
(1002- )

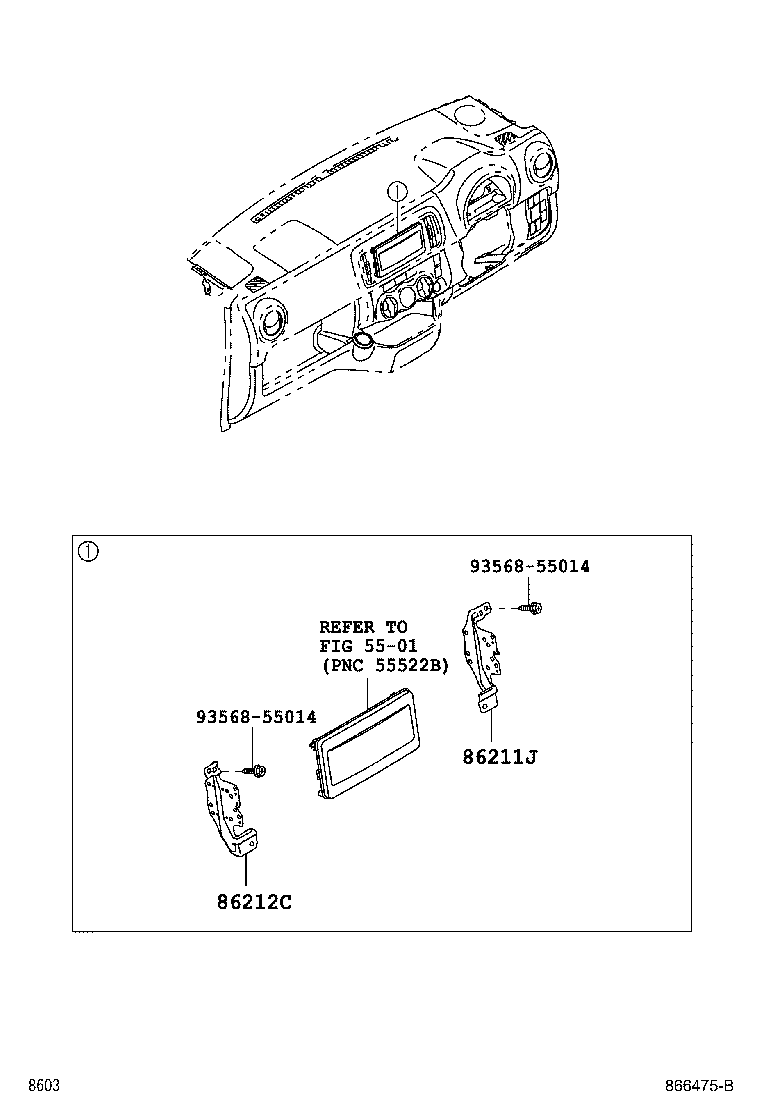

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| 86211-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ 10CM*2 ｲﾝﾊﾟﾈ |
1 | ||
| 86212-B1110 |
KGC3#,NGC30 ｵｰﾃﾞｨｵ−’11年 ﾅﾋﾞ 2SP |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
