NGC30-AHEEK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )

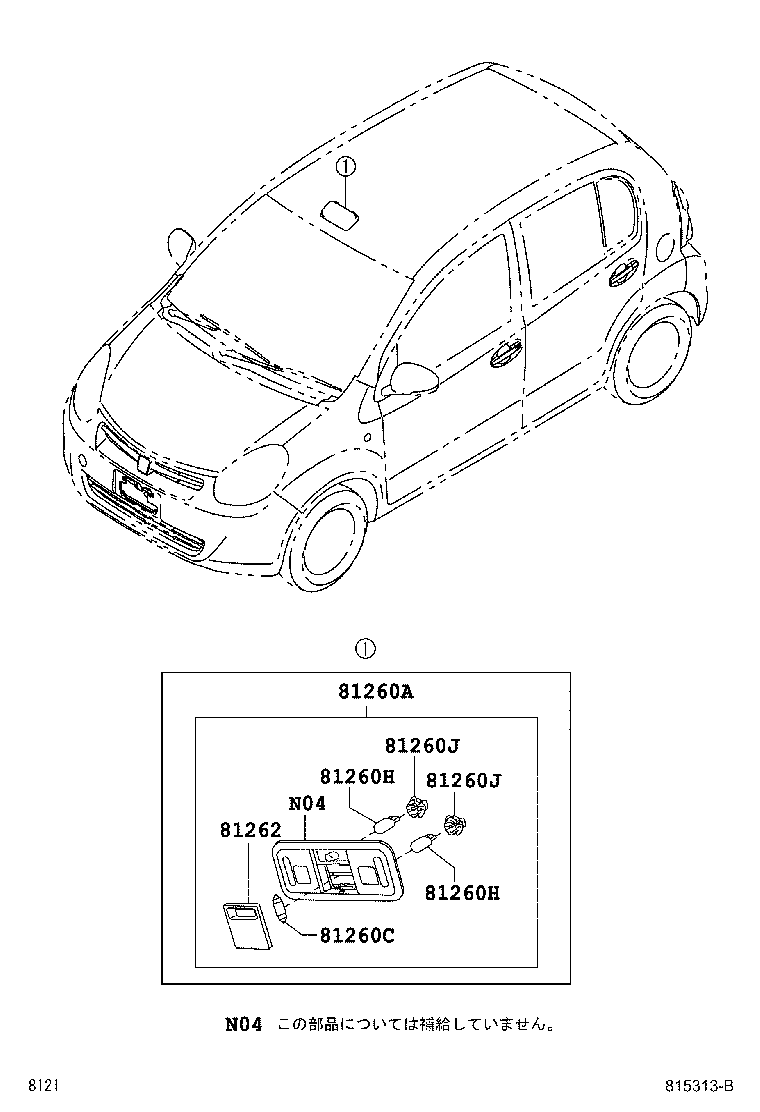

Click highlighted areas on diagram

diagram 81260A 81260C 81260H 81260H 81260J 81260J 81262
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-B1010E0

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 1
81260-B2020E0

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90049-51153

KGC3#,NGC30

12V 8W

 1
81260H - BULB(FOR MAP LAMP), NO.2
90981-11013

KGC3#,NGC30

12V 5W T10

 2
81260H - BULB(FOR MAP LAMP), NO.2
90981-11013

KGC3#,NGC30

12V 5W T10

 2
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-87705

KGC3#,NGC30

 2
81260J - SOCKET, BULB(FOR MAP LAMP)
83101-87705

KGC3#,NGC30

 2
81262 - LENS, MAP LAMP
81265-97201

KGC3#,NGC30

 1
