NGC30-AHEEK (2010)
Toyota Passo
Production
Feb 2010
-
Jun 2012
Engine
1NRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002- )1NRFE

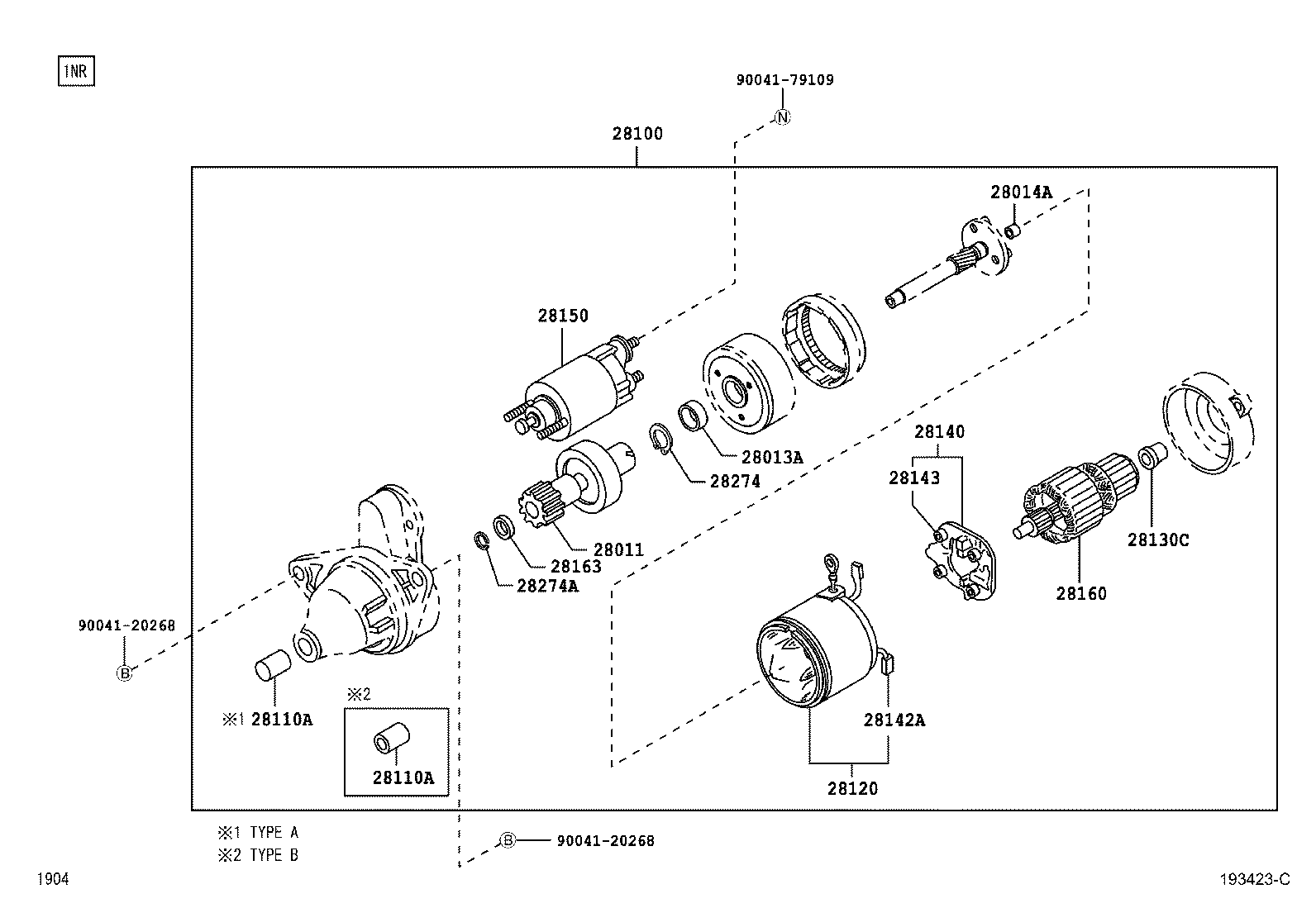

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-B1030 |
1NRFE..NGC30 |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
1NRFE..NGC30 |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
1NRFE..NGC30 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-B1030 |
1NRFE..NGC30 12V 0.8KW |
1 | ||
| 28100-B1040 |
1NRFE..NGC30 12V 1.0KW,寒冷地仕様 |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 9004C-03001 |
1NRFE..NGC30 ﾀｲﾌﾟ B |
1 | ||
| 28277-87201 |
1NRFE..NGC30 ﾀｲﾌﾟ A |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 9004C-03001 |
1NRFE..NGC30 ﾀｲﾌﾟ B |
1 | ||
| 28277-87201 |
1NRFE..NGC30 ﾀｲﾌﾟ A |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87401 |
1NRFE..NGC30 |
1 | ||
| 28120-87216 |
1NRFE..NGC30 寒冷地仕様 |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
1NRFE..NGC30 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-87202 |
1NRFE..NGC30 |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-87204 |
1NRFE..NGC30 |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-87202 |
1NRFE..NGC30 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87536 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-87208 |
1KRFE,1NRFE..KGC3#,NGC30 寒冷地仕様 |
1 | ||
| 28160-87207 |
1NRFE..NGC30 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-87202 |
1NRFE..NGC30 |
1 | ||
| 28274 - SNAP RING, STARTER, NO.1 | ||||
| 90096-90030 |
1NRFE..NGC30 |
1 | ||
| 28274A - SNAP RING, STARTER, NO.2 | ||||
| 28274-87503 |
1NRFE..NGC30 |
1 | ||
| Common parts | ||||
| 90041-20268 | ||||
| 90041-79109 | ||||
