NGC30-AHEEK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1NRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )1NRFE

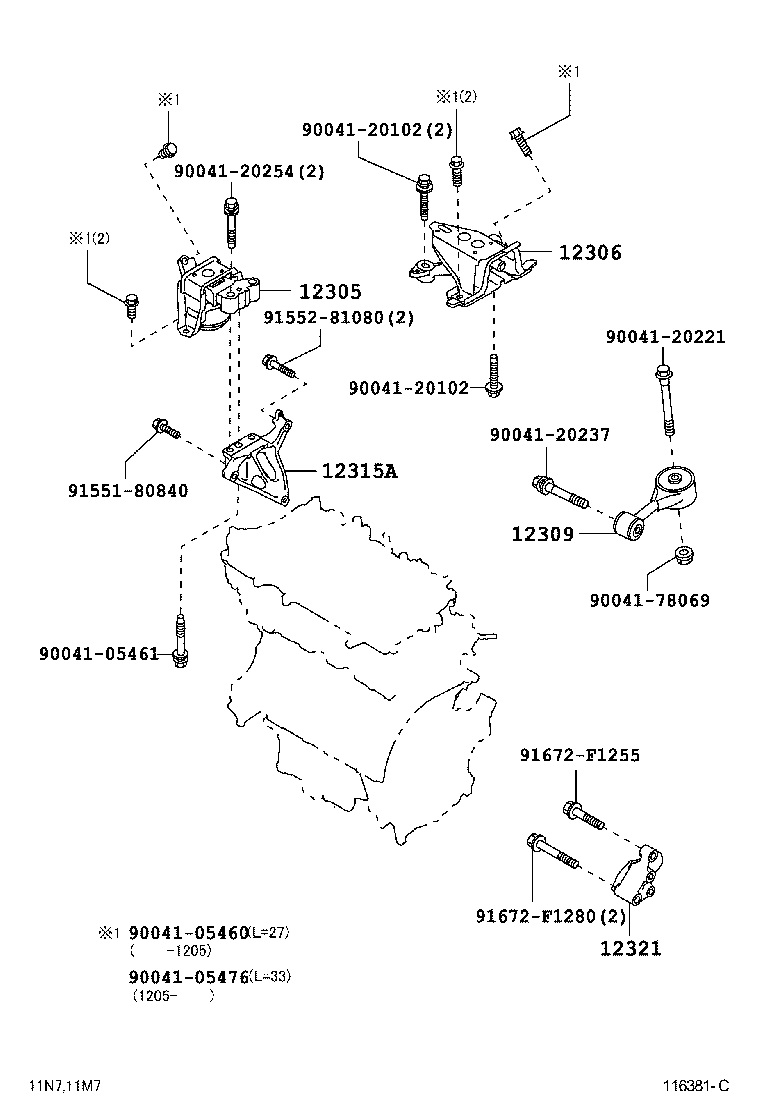

Click highlighted areas on diagram

diagram 12305 12306 12309 12315A 12321 9004105460 9004105461 9004105476 9004120102 9004120102 9004120221 9004120237 9004120254 9004178069 9155180840 9155281080 91672F1255 91672F1280
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-B1110

1NRFE..NGC30

 1
12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
12306-B1090

1NRFE..NGC30

 1
12309 - ROD SUB-ASSY, ENGINE MOVING CONTROL
12309-B1070

1NRFE..NGC30

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-B1010

1NRFE..NGC30

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-B1070

1NRFE..NGC30

 1
Common parts
90041-05460
90041-05461
90041-05476
90041-20102
90041-20221
90041-20237
90041-20254
90041-78069
91551-80840
91552-81080
91672-F1255
91672-F1280
