M710A-GBSE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )

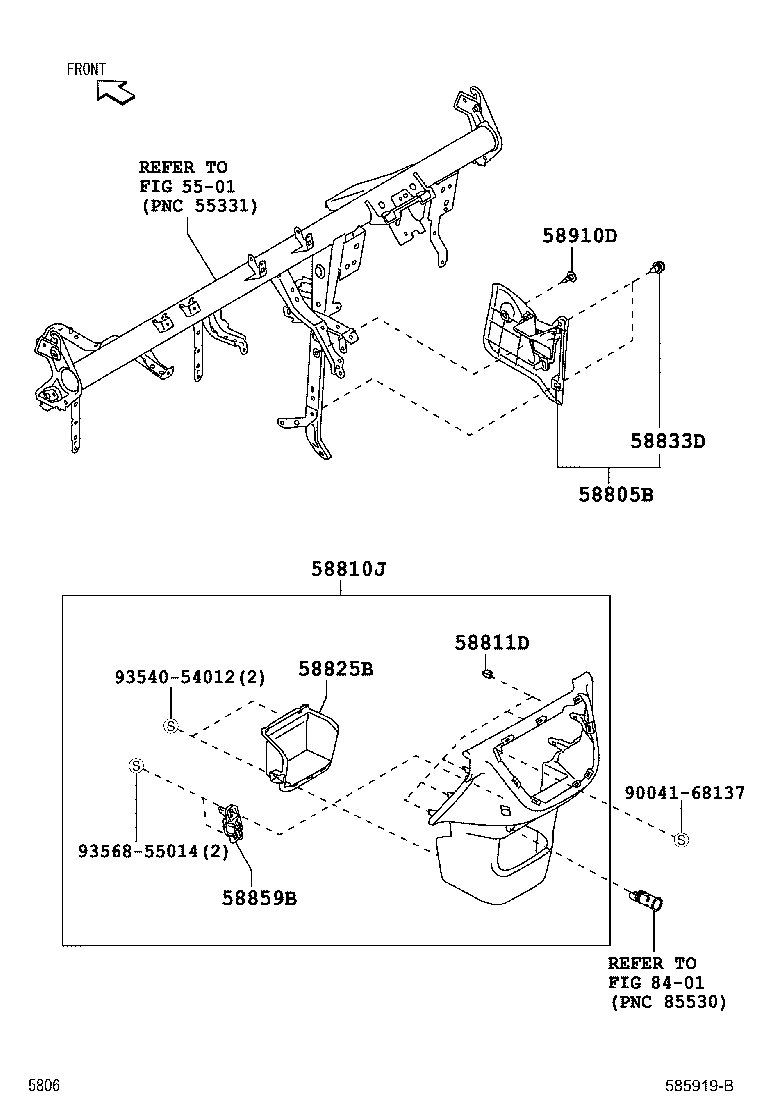

Click highlighted areas on diagram

diagram 5501 58805B 58810J 58811D 58825B 58833D 58859B 58910D 8401 9004168137 9354054012 9356855014
Part # Description Qty Price
58805B - PANEL SUB-ASSY, CONSOLE, LOWER
58805-B1010B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
58810J - BOX ASSY, CONSOLE
58810-B1010B1

M700,710..MODA

DK.GRAY,TRIM1#

 1
58810-B1010B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-05171

M700,710

 5
58825B - POCKET, CONSOLE BOX
58825-B1010B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
58833D - CLIP(FOR CONSOLE COVER)
90467-10161

M700,710

 2
58859B - HOOK, CONSOLE BOX HOLDER
51960-B1030C0

M700,710..MODA

BLACK,TRIM1#

 1
51960-B1030B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
58910D - CLIP(FOR CONSOLE BOX)
90044-67579B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
90044-67579C2

M700,710..MODA

BLACK,TRIM1#

 1
Common parts
90041-68137
93540-54012
93568-55014
Linked diagrams
5501
8401
