M710A-GBSE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

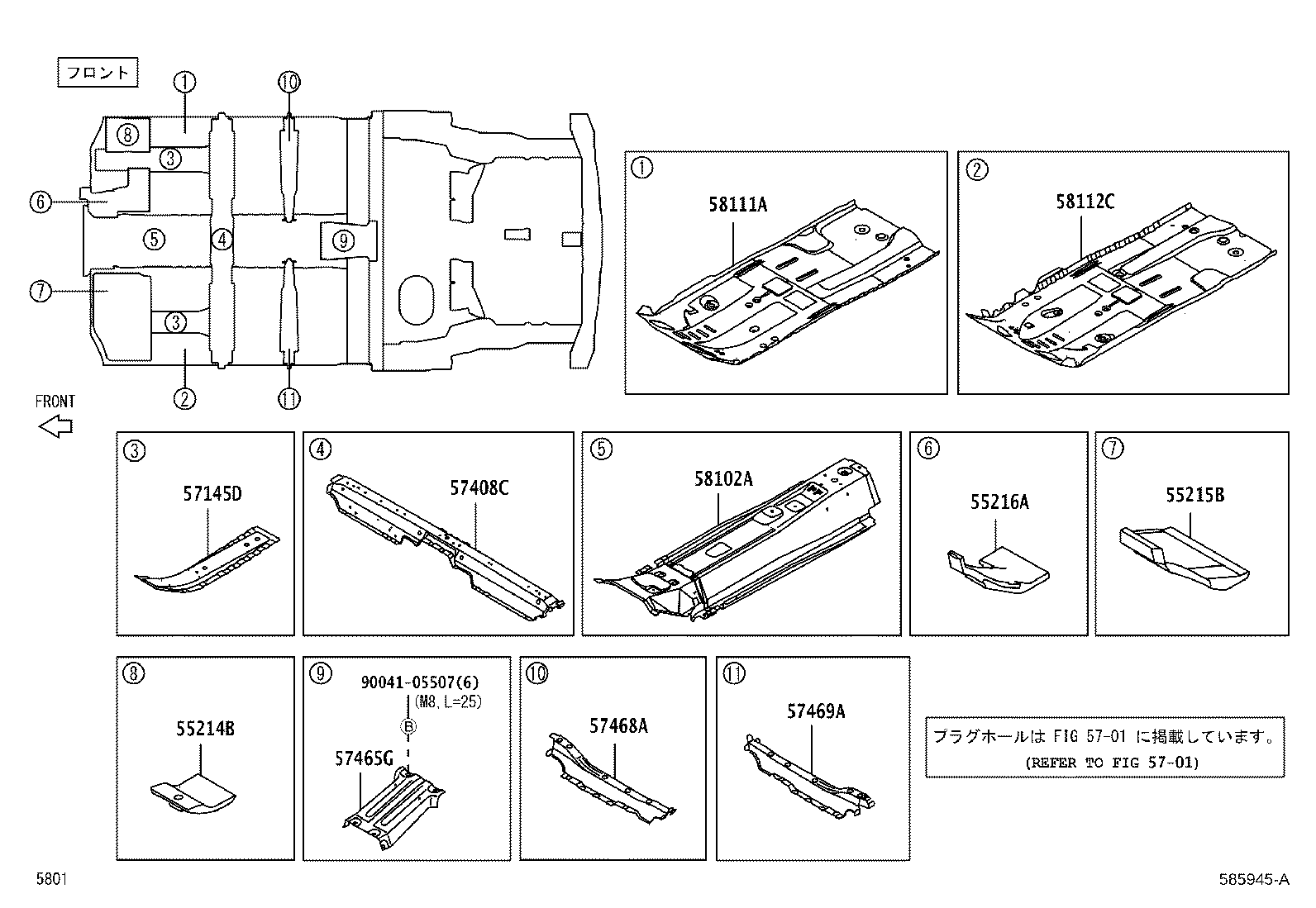

ILLUST NO. 1 OF 2(1604- )M710

Click highlighted areas on diagram

diagram 55214B 55215B 55216A 5701 57145D 57408C 57465G 57468A 57469A 58102A 58111A 58112C 9004105507
Part # Description Qty Price
55214B - PAD, DASH PANEL INSULATOR, NO.2
55214-B1050

M700,710

 1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-B1050

M700,710

 1
55216A - PAD, DASH PANEL INSULATOR, NO.4
55216-B1060

M700,710

 1
57145D - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57145-B1010

M700,710

 2
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57051-B1050

M700,710

 1
57465G - GUSSET, CENTER FLOOR CROSSMEMBER
57465-B1020

M700,710

 1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-B1030

M700,710

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-B1030

M700,710

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-B1550

M710

 1
58111A - PAN, FRONT FLOOR, RH
58111-B1010

M700,710

 1
58112C - PAN, FRONT FLOOR, LH
58112-B1020

M700,710

 1
Common parts
90041-05507
Linked diagrams
5701

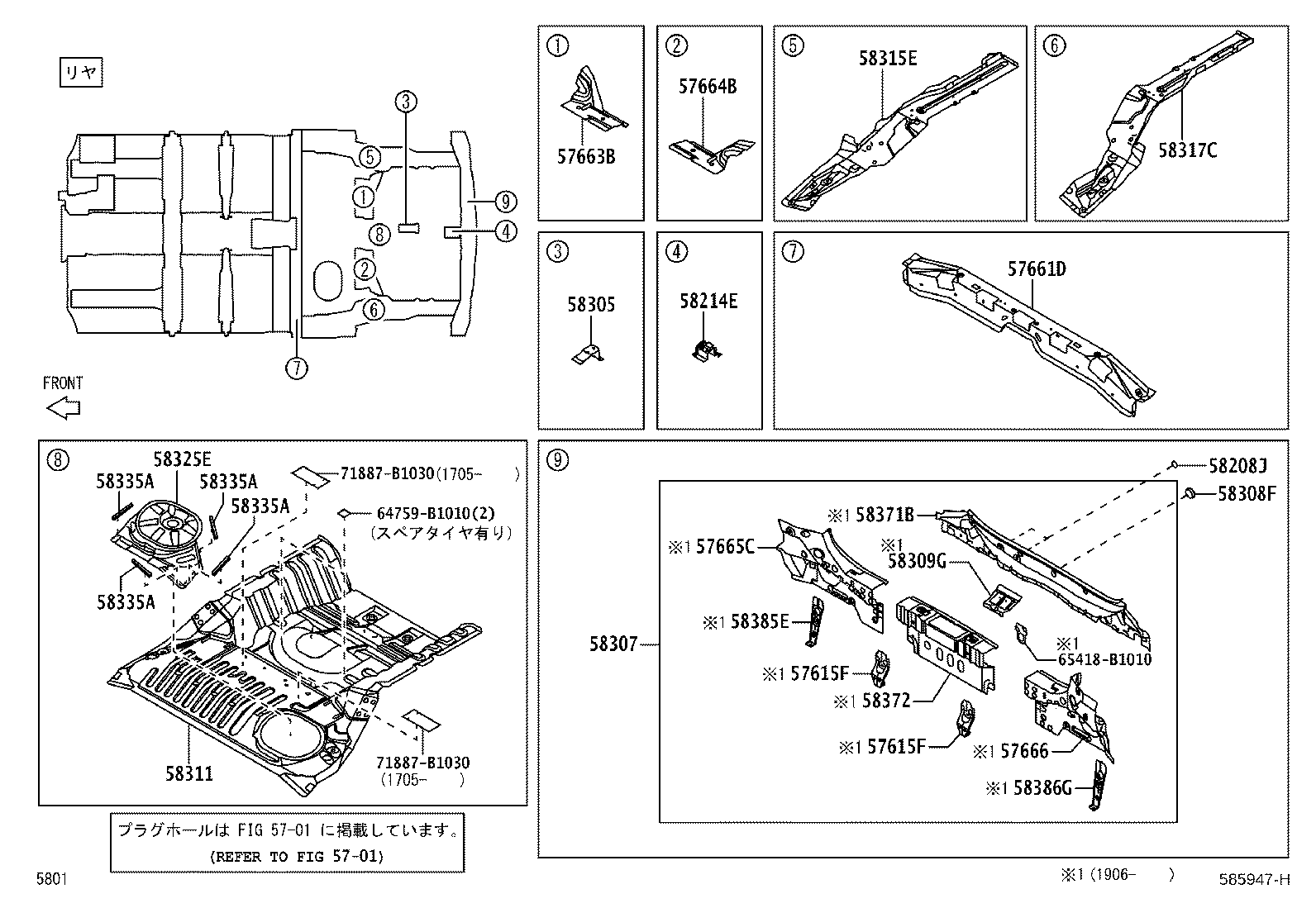

ILLUST NO. 2 OF 2(1604- )M710

Click highlighted areas on diagram

diagram 5701 57615F 57615F 57661D 57663B 57664B 57665C 57666 58208J 58214E 58305 58307 58308F 58309G 58311 58315E 58317C 58325E 58335A 58335A 58335A 58335A 58371B 58372 58385E 58386G 64759B1010 65418B1010 71887B1030 71887B1030
Part # Description Qty Price
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57661-B1040

M700,710

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-B1030

M700,710

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
57664-B1030

M700,710

 1
58208J - COVER, HOLE
90048-74004

M700,710..PS1;M700,710..X..PS2

 2
58214E - BRACKET, JACK SUPPORT
58214-B1010

M700,710

ﾃﾝﾊﾟｰﾀｲﾔ&SRSｴｱﾊﾞｯｸﾞ(ｳﾝﾃﾝｾｷ/ｼﾞｮｼｭｾｷ,ｻｲﾄﾞ,ｶｰﾃﾝ)

 1
58214-B1010

M700,710

ﾃﾝﾊﾟｰﾀｲﾔ

 1
58214-B1010

M700,710

SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&ﾃﾝﾊﾟｰﾀｲﾔ

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-B1030

M700,710

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-B1060

M700,710

 1
58308F - PLUG, HOLE(FOR LOWER BACK)
90048-71198

M700,710..PS1;M700,710..X..PS2

ﾅｼ(ﾌﾟﾘｸﾗｯｼｭ ｼｽﾃﾑ)

 1
58311 - PAN, REAR FLOOR
58311-B1040

M710

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-B1030

M700,710

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-B1030

M700,710

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-B1010

M710

 1
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-B1010

M710

 4
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-B1010

M710

 4
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-B1010

M710

 4
58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58335-B1010

M710

 4
Common parts
64759-B1010
65418-B1010
71887-B1030
Linked diagrams
5701
