M710A-GBSE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )

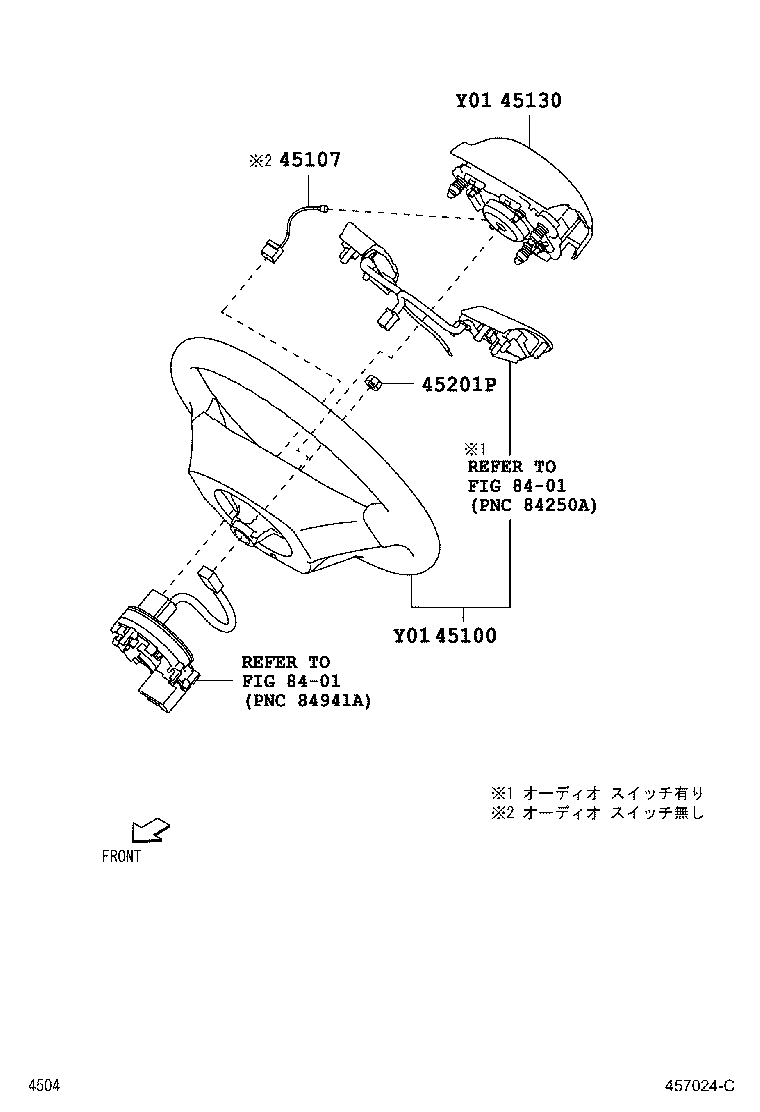

Click highlighted areas on diagram

diagram 45100 45107 45130 45201P 8401 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45102-B1250B1

M700,710..MODA

3本ｽﾎﾟｰｸ,純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#

 1
45102-B1270B0

M700,710..MODA

3本ｽﾎﾟｰｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(”G ﾊﾟｯｹｰｼﾞ”)&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰhﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ,DK.GRAY,TRIM1#

 1
45102-B1240B1

M700,710..MODA

3本ｽﾎﾟｰｸ,DK.GRAY,TRIM1#

 1
45102-B1270C0

M700,710..MODA

3本ｽﾎﾟｰｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(”G ﾊﾟｯｹｰｼﾞ”)&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰhﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ,SILVER,TRIM1#

 1
45102-B1240C0

M700,710..MODA

3本ｽﾎﾟｰｸ,SILVER,TRIM1#

 1
45102-B1260C0

M700,710..MODA

3本ｽﾎﾟｰｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(”G ﾊﾟｯｹｰｼﾞ”),SILVER,TRIM1#

 1
45102-B1250C0

M700,710..MODA

3本ｽﾎﾟｰｸ,純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ,SILVER,TRIM1#

 1
45102-B1260B0

M700,710..MODA

3本ｽﾎﾟｰｸ,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2050

M700,710

 1
45130 - BUTTON ASSY, HORN
45130-B1150B0

M700,710..MODA

DK.GRAY,TRIM1#

 1
45130-B1150C0

M700,710..MODA

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90041-70014

M700,710

M12

 1
Linked diagrams
8401
