M710A-GBNE (2016)
Toyota Passo

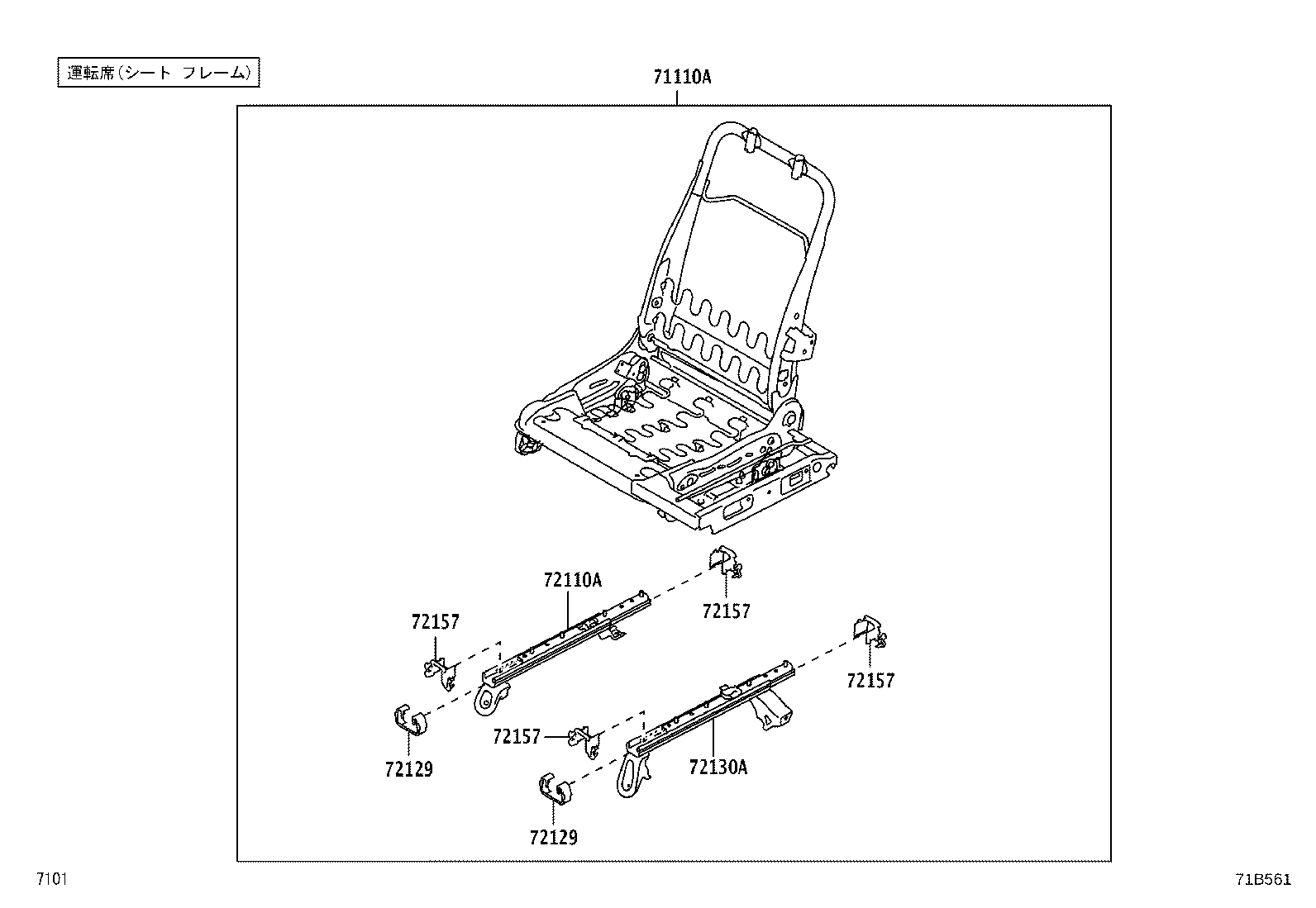

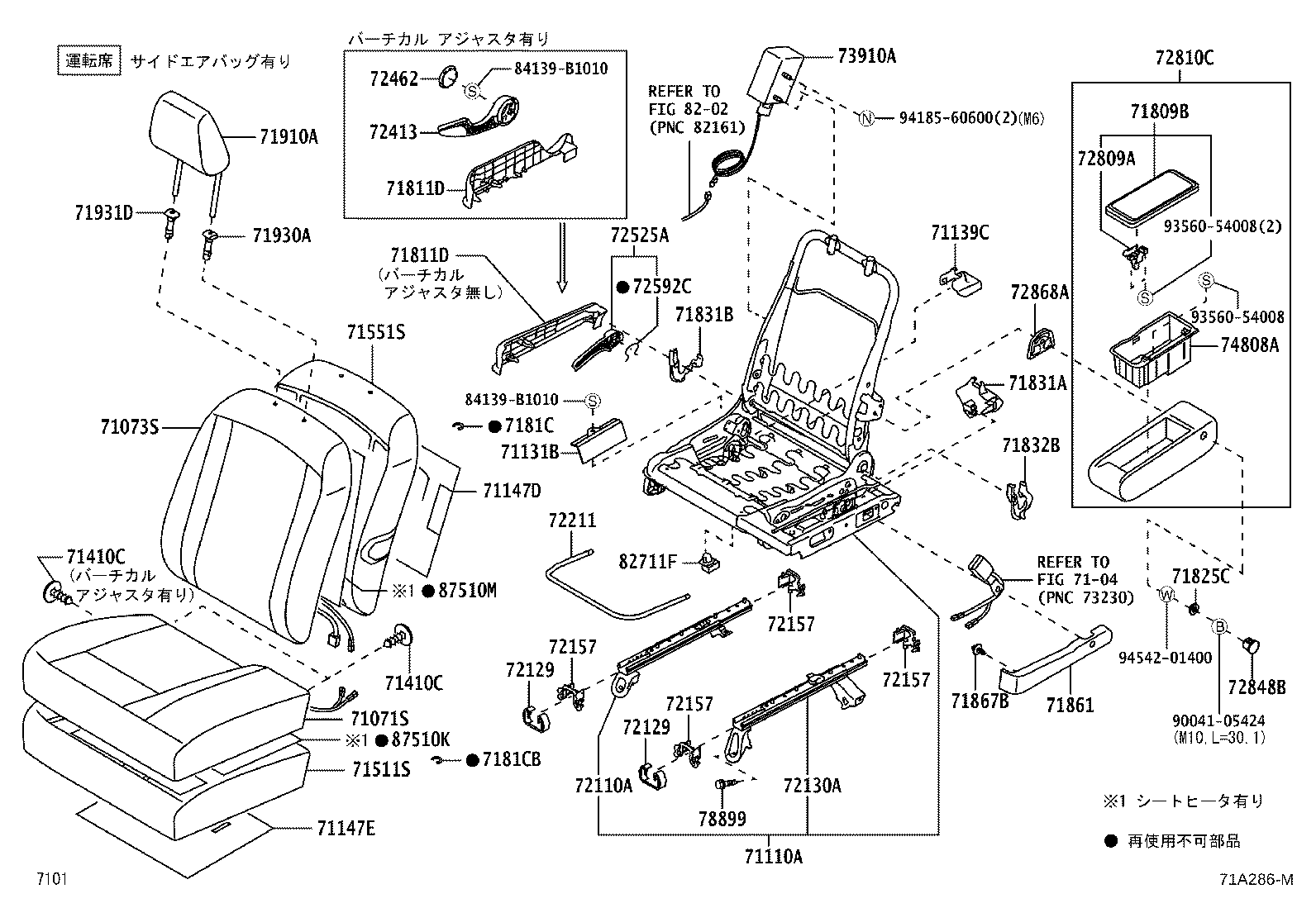

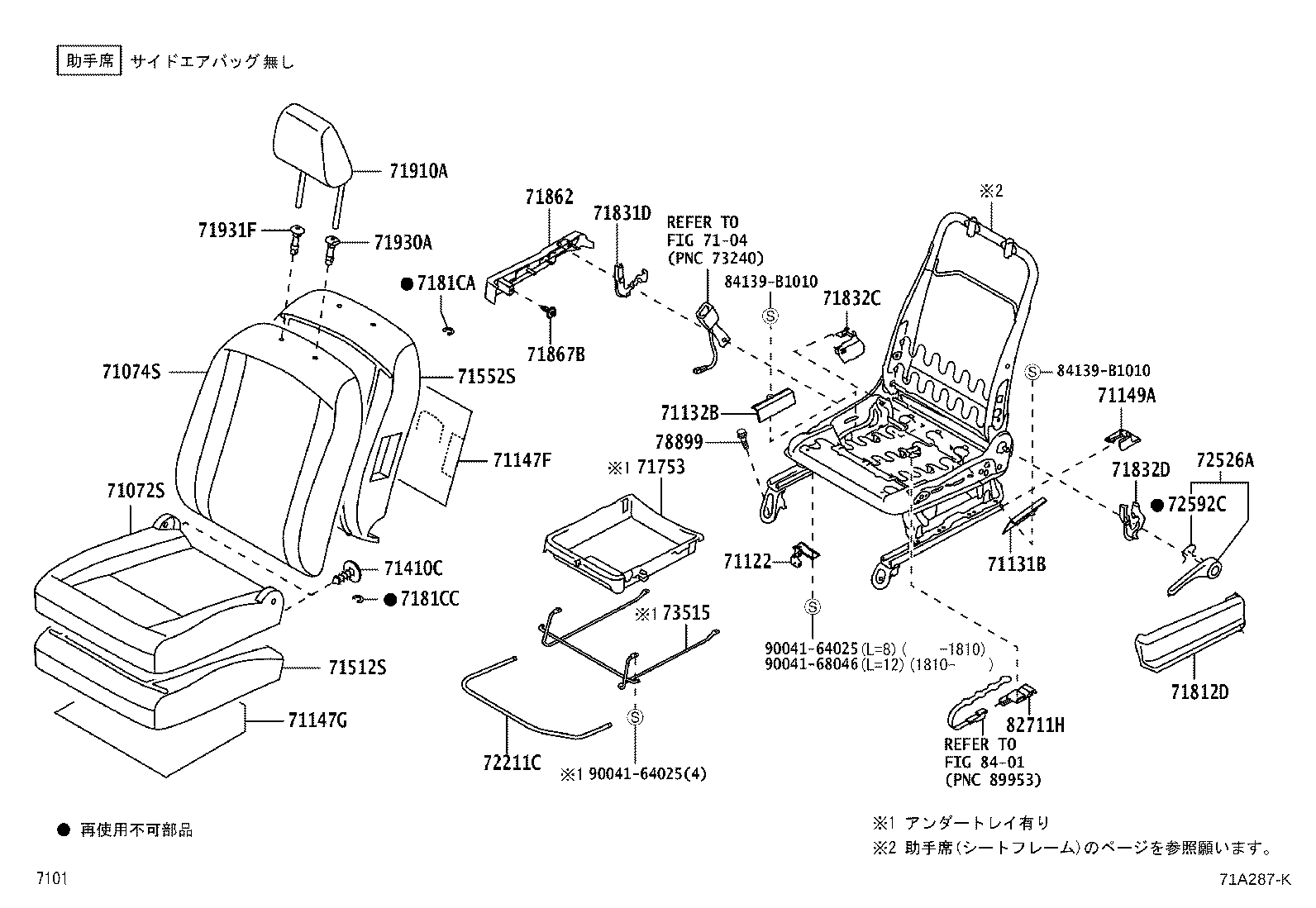

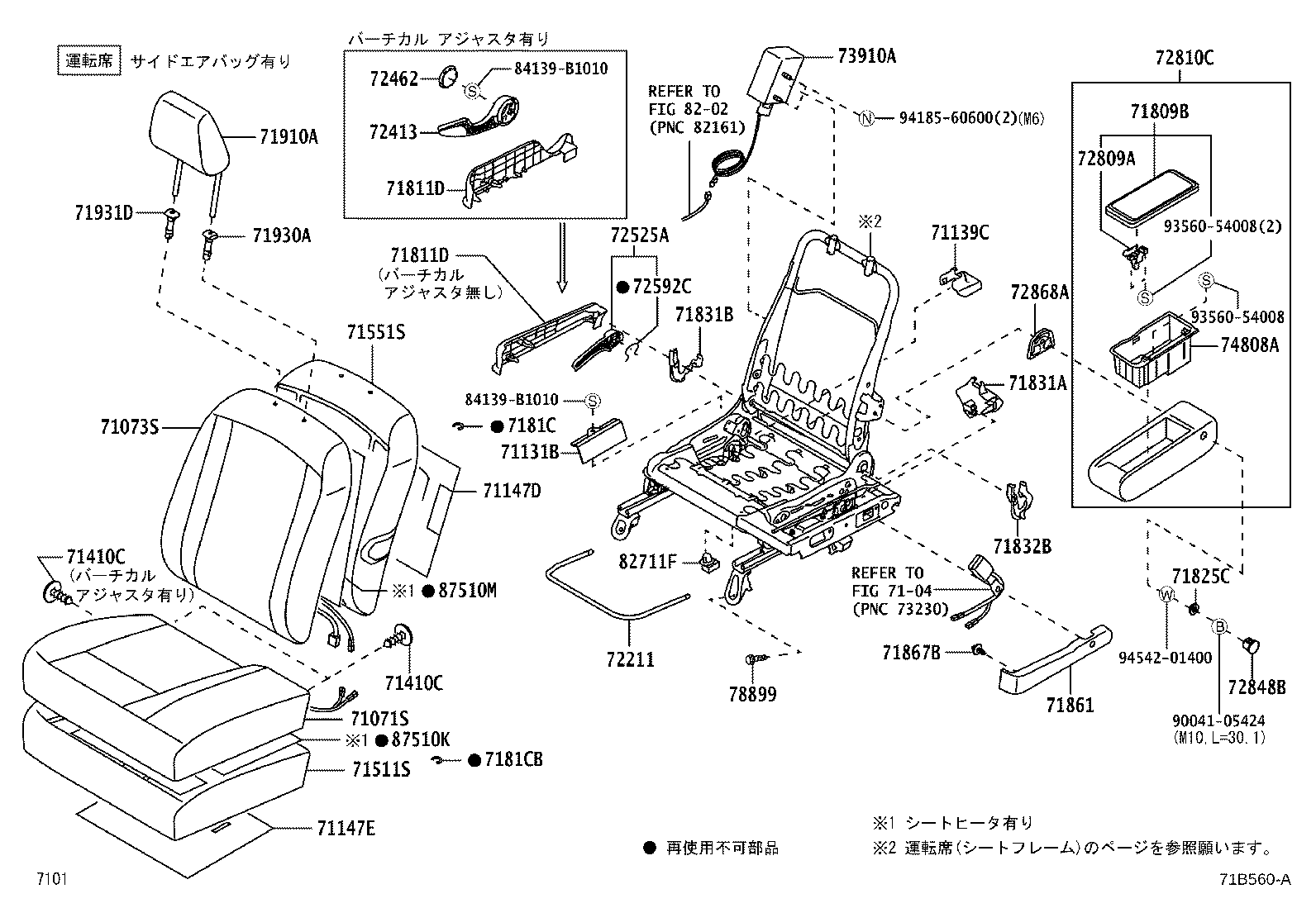

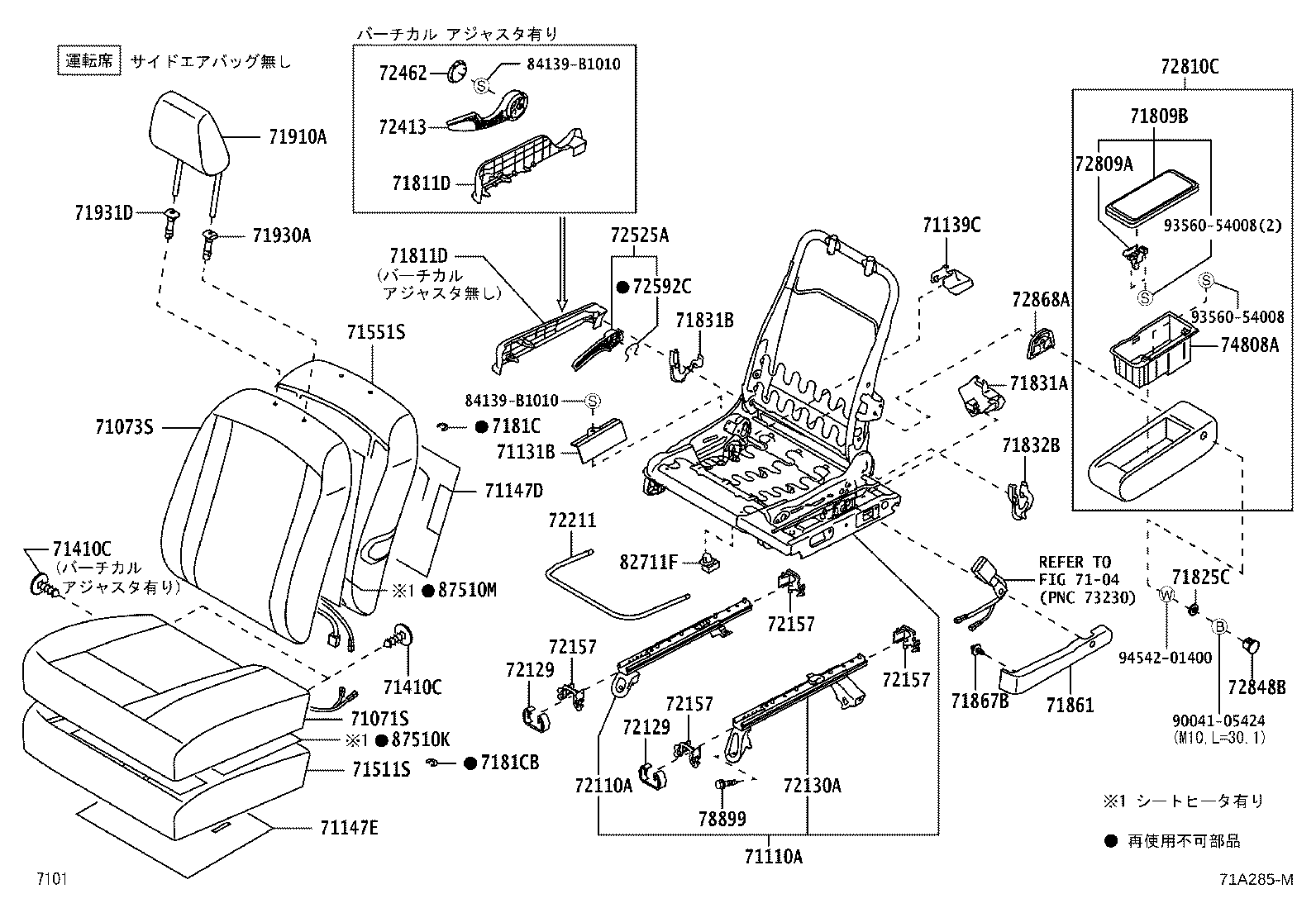

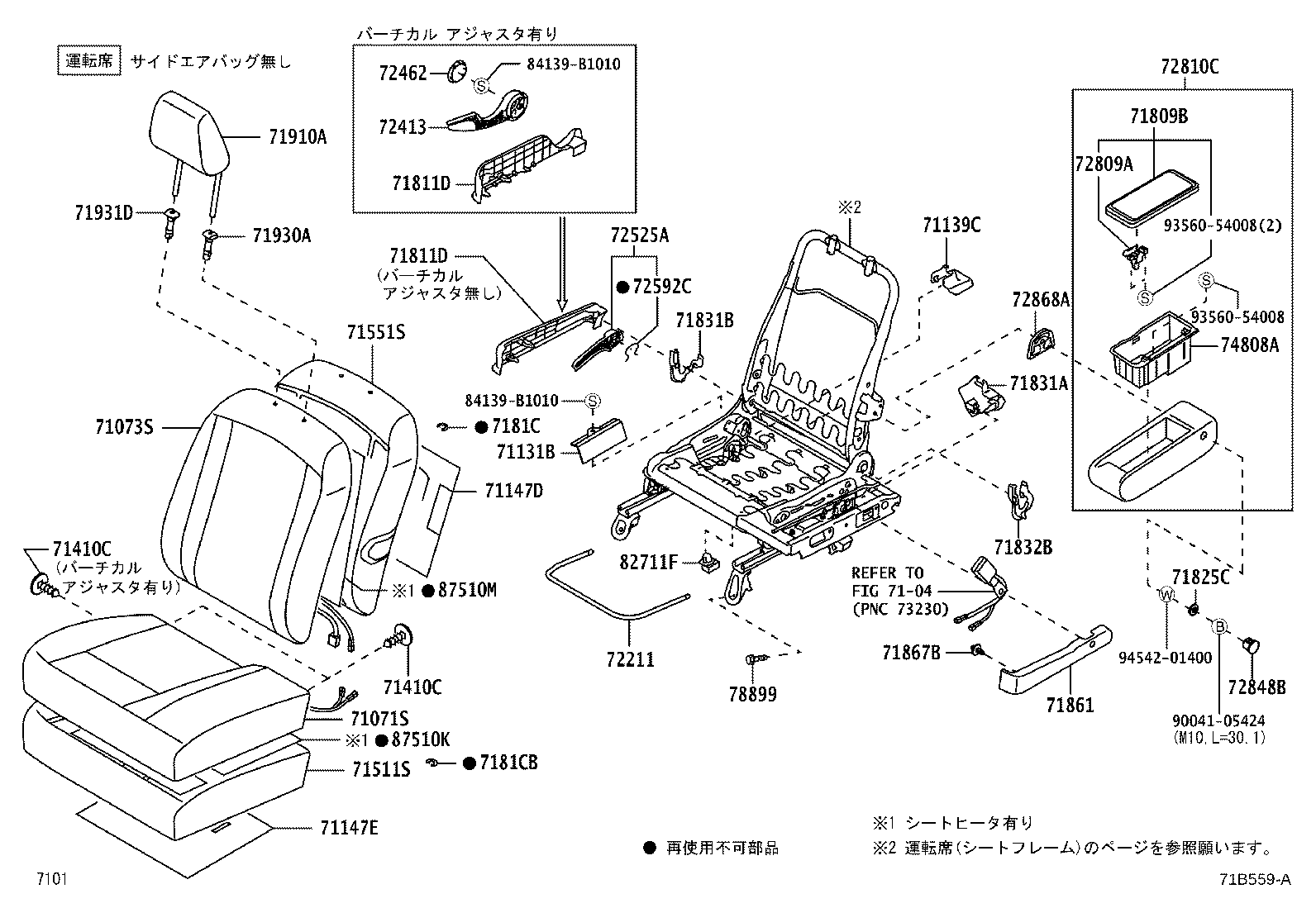

ILLUST NO. 1 OF 3(1604-1701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1340B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X 寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1C30B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1090 |
M700,710..X |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71139-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
M700,710 |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1230 |
M700,710 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1340 |
M700,710 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1150B0 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
9 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
M700,710 |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-B1070B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71831-B1070C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1040E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B1010 |
M700,710 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-B1010 |
M700,710 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
M700,710 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-B2010E4 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1190B2 |
M700,710..X -,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-B2020 |
M700,710 |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-B2040E2 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 15549-B4010 |
M700,710 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 3(1604-1701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1340B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X 寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1C30B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1090 |
M700,710..X |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71139-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
M700,710 |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1230 |
M700,710 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1340 |
M700,710 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1150B0 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
9 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
M700,710 |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-B1070B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71831-B1070C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1040E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B1010 |
M700,710 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-B1010 |
M700,710 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
M700,710 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-B2010E4 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1190B2 |
M700,710..X -,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-B2020 |
M700,710 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73910-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-B2040E2 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 15549-B4010 |
M700,710 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 2(1604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1450B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D10B2 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-B1010 |
M700,710 |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71132B - PLATE, FRONT SEAT CUSHION, NO.2 | ||||
| 71127-BZ010 |
M700,710 |
1 | ||
| 71127-B1020 |
M700,710 |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
M700,710 |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71149-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1240 |
M700,710 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1110 |
M700,710 |
1 | ||
| 71506-B1120 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71506-B1120 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71753-B2010 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B2290E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
7 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71832-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1050E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931F - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2100 |
M700,710 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B1030E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-B2530 |
M700,710 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-64025 | ||||
| 90041-68046 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1450B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D10B2 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71074-B1D20B2 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-B1010 |
M700,710 |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71132B - PLATE, FRONT SEAT CUSHION, NO.2 | ||||
| 71127-BZ010 |
M700,710 |
1 | ||
| 71127-B1020 |
M700,710 |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
M700,710 |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71149-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1240 |
M700,710 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1110 |
M700,710 |
1 | ||
| 71506-B1120 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71506-B1120 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71506-B1120 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71753-B2010 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B2290E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
7 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71832-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1050E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931F - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2100 |
M700,710 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B1030E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 73507-B2090 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73920-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73920-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73920-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73920-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73920-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-B2530 |
M700,710 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-64025 | ||||
| 90041-68046 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1340B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X 寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1C30B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71139-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
M700,710 |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1230 |
M700,710 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1340 |
M700,710 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1150B0 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
9 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
M700,710 |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-B1070B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71831-B1070C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1040E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
M700,710 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-B2010E4 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1190B2 |
M700,710..X -,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-B2020 |
M700,710 |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-B2040E2 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 15549-B4010 |
M700,710 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1340B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1590B0 |
M700,710..X 寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1500B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71071-B1570B0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1C30B3 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LIGHT GRAY,TRIM4# |
1 | ||
| 71073-B1C40B3 |
M700,710..X SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LIGHT GRAY,TRIM4# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71127-BZ010 |
M700,710 |
2 | ||
| 71127-B1010 |
M700,710 |
2 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1050C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71139-B1050B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2100 |
M700,710 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
M700,710 |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68185B1 |
M700,710..X DK.GRAY |
4 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),DK.GRAY |
5 | ||
| 90044-68185B1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,DK.GRAY |
5 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1230 |
M700,710 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1340 |
M700,710 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71505-B1350 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1150B0 |
M700,710..X LIGHT GRAY,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B2420E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1100E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
M700,710 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
M700,710 |
9 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
M700,710 |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-B1070B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71831-B1070C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1080C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71831-B1080B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B1090B0 |
M700,710..X DK.GRAY,TRIM4# |
1 | ||
| 71832-B1090C0 |
M700,710..X BLACK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1040E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1060E0 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 71867B - CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) | ||||
| 90044-68061C0 |
M700,710 BLACK |
2 | ||
| 90044-68061B1 |
M700,710 DK.GRAY |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1370B0 |
M700,710..X LIGHT GRAY,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-B2010E1 |
M700,710..X ﾛｯｸ付,LINEN BEIGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-B2010E1 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
M700,710 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B2110E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B2080E1 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ,LINEN BEIGE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
M700,710 |
2 | ||
| 72809A - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-B2010E4 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1190B2 |
M700,710..X -,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B1020E0 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 72868A - COVER, CENTER ARMREST HINGE | ||||
| 72868-B2020 |
M700,710 |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 73910-B2060 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 73910-B2060 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-B2040E2 |
M700,710..X LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 90041-05506 |
M700,710 M8,L=20 |
8 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 15549-B4010 |
M700,710 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87510-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-B2110 |
M700,710..MODA;M700,710..X..PS1 SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710 寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 87530-B2110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 3(1701- )
ｳﾝﾃﾝｾｷ(ｼｰﾄﾌﾚｰﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 71110-B1090 |
M700,710..X |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&寒冷地仕様 |
1 | ||
| 71110-B1110 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”)&SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-B1010 |
M700,710 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-B1010 |
M700,710 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
M700,710 |
4 | ||
ILLUST NO. 2 OF 2(1604- )
ｼﾞｮｼｭｾｷ(ｼｰﾄﾌﾚｰﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1100 |
M700,710 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-B1010 |
M700,710 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
M700,710 |
4 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-B1010 |
M700,710 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
M700,710 |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
M700,710 |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
