M710A-GBNE (2016)
Toyota Passo
Production
Apr 2016
-
Oct 2018
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )

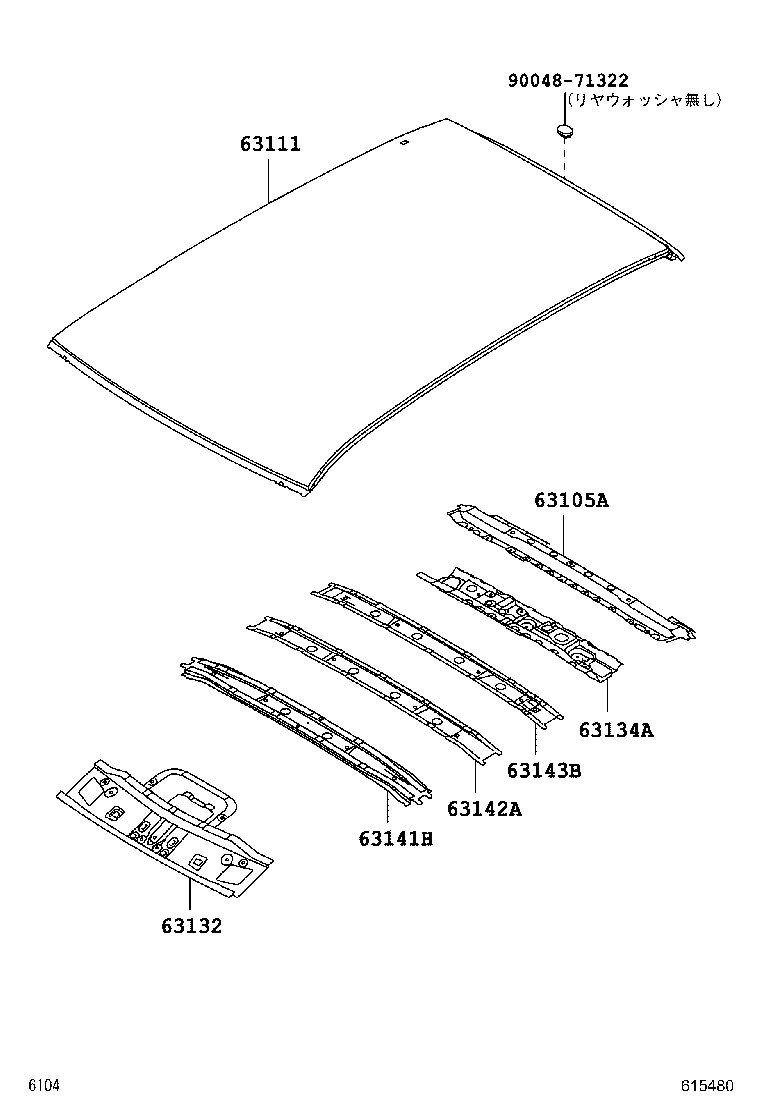

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-B1080 |
M700,710 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-B1070 |
M700,710 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-B1050 |
M700,710 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-B1080 |
M700,710 |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-B1060 |
M700,710 |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-B1060 |
M700,710 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-B1060 |
M700,710 |
1 | ||
| Common parts | ||||
| 90048-71322 | ||||
