M710A-GBNE (2016)
Toyota Passo
Production
Apr 2016
-
Oct 2018
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )

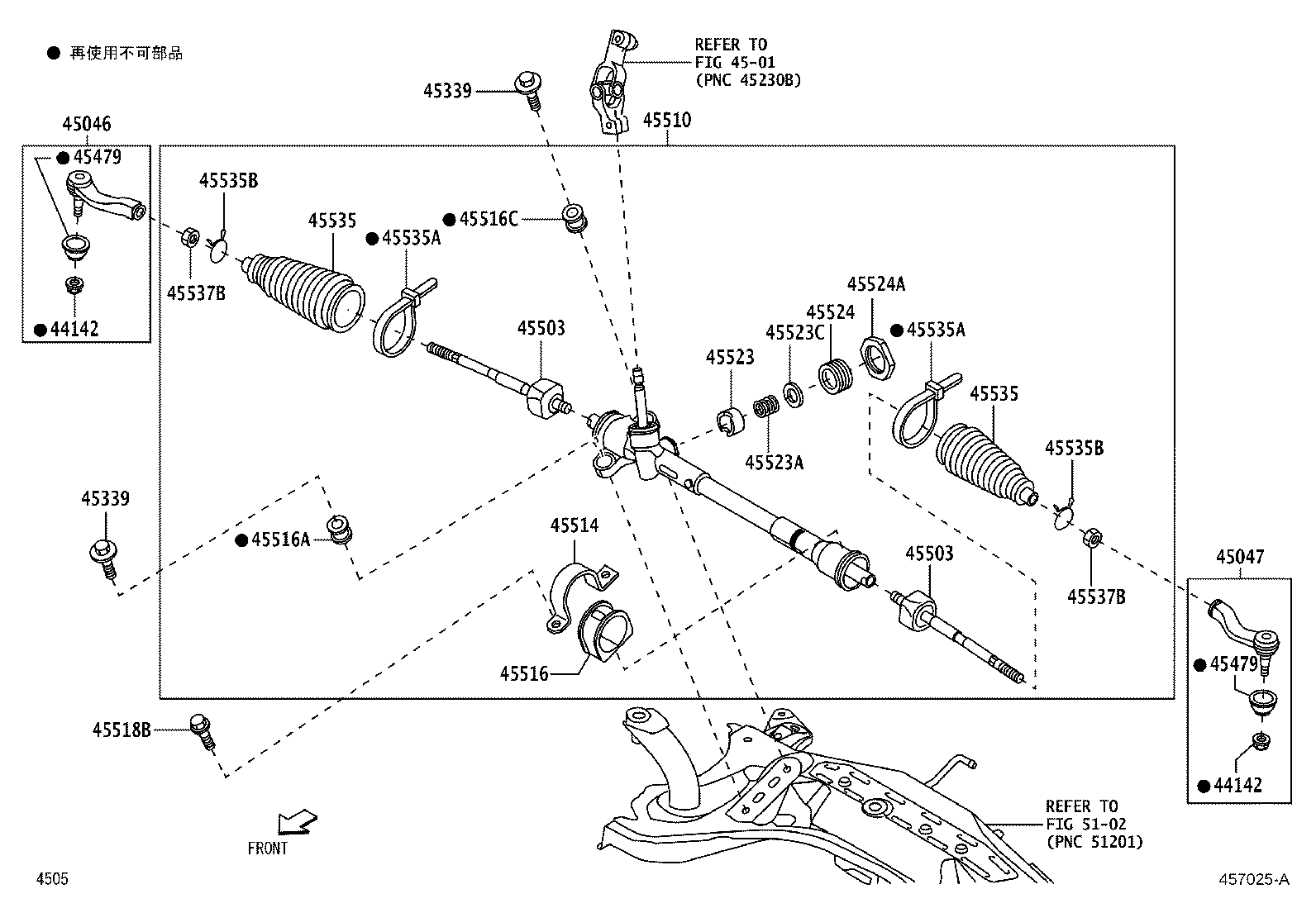

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44142 - NUT, LOCK | ||||
| 90041-77011 |
M700,710 M10 |
2 | ||
| 44142 - NUT, LOCK | ||||
| 90041-77011 |
M700,710 M10 |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-B9210 |
M700,710 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-B9150 |
M700,710 |
1 | ||
| 45339 - BOLT, STEERING GEAR HOUSING | ||||
| 90041-20051 |
M700,710 M10,L=43 |
2 | ||
| 45339 - BOLT, STEERING GEAR HOUSING | ||||
| 90041-20051 |
M700,710 M10,L=43 |
2 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-B2010 |
M700,710 |
2 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-B2010 |
M700,710 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-B1020 |
M700,710 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-B1020 |
M700,710 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45502-B1390 |
M700,710 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-B2010 |
M700,710 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-B1030 |
M700,710 |
1 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-B2110 |
M700,710 |
1 | ||
| 45516C - BUSH, STEERING RACK HOUSING, NO.2 | ||||
| 45516-B2120 |
M700,710 |
1 | ||
| 45518B - BOLT, STEERING RACK HOUSING | ||||
| 90041-05303 |
M700,710 M10,L=20 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-B1030 |
M700,710 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90045-01818 |
M700,710 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90042-08036 |
M700,710 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-87705 |
M700,710 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90041-70277 |
M700,710 M30 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-B2010 |
M700,710 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-B2010 |
M700,710 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-B2020 |
M700,710 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 45538-B2020 |
M700,710 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-97201 |
M700,710 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-97201 |
M700,710 |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90041-70357 |
M700,710 M14 |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90041-70357 |
M700,710 M14 |
2 | ||
| Linked diagrams | ||||
| 4501 | ||||
| 5102 | ||||
