M700A-GBSE (2016)
Toyota Passo
Production
Apr 2016
-
Oct 2018
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )

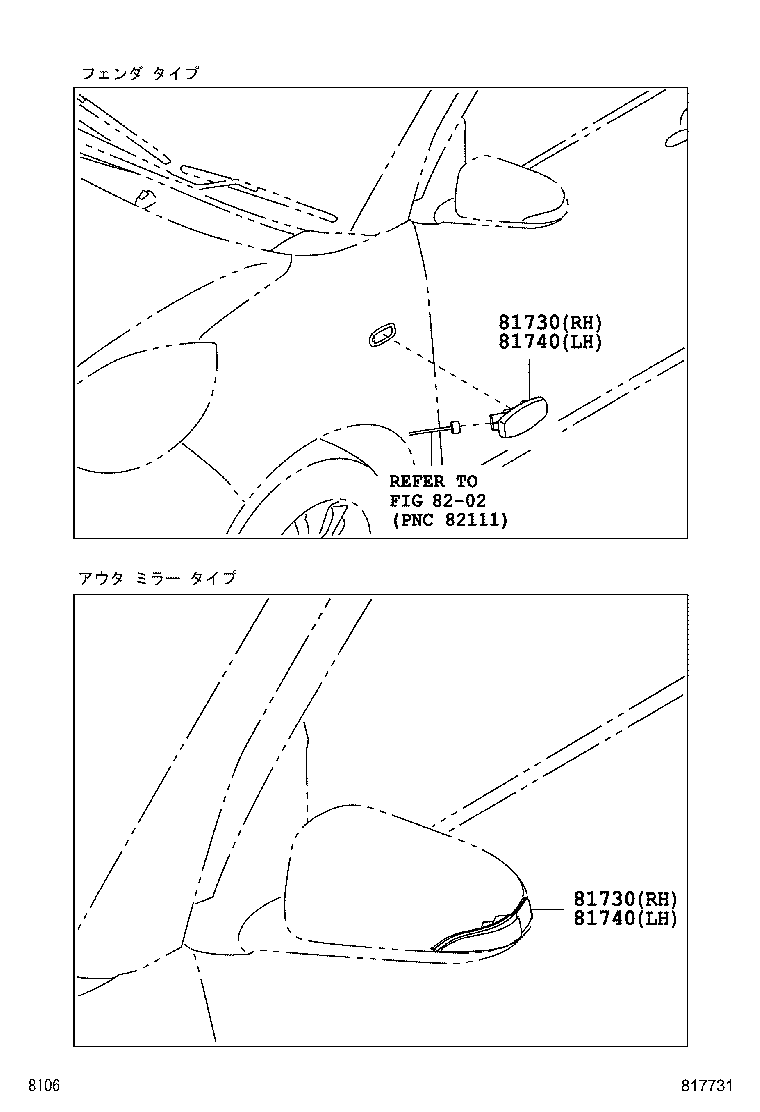

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-52120 |
M700,710..MODA ｱｳﾀ ﾐﾗｰ |
1 | ||
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-52120 |
M700,710..MODA ｱｳﾀ ﾐﾗｰ |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-52080 |
M700,710..MODA ｱｳﾀ ﾐﾗｰ |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81740-52080 |
M700,710..MODA ｱｳﾀ ﾐﾗｰ |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
