M700A-GBSE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

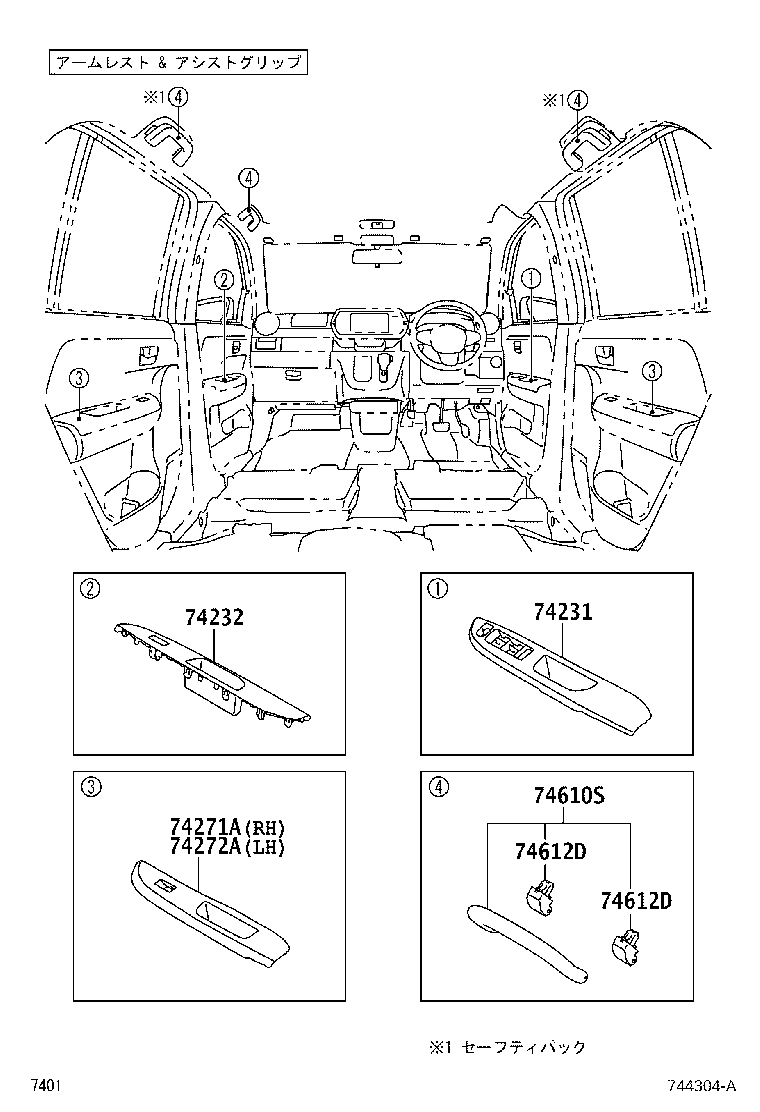

ILLUST NO. 1 OF 2(1604- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74231 74232 74271A 74272A 74610S 74612D 74612D
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B1130B0

M700,710..MODA

WARM GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B1130B0

M700,710..MODA

WARM GRAY,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-B1110B0

M700,710..MODA

WARM GRAY,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-B1110B0

M700,710..MODA

WARM GRAY,TRIM1#

 1
74610S - GRIP ASSY, ASSIST
74610-B2030B0

M700,710..MODA

LT.GRAY,TRIM1#

 1
74610-B2030B0

M700,710..MODA

SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&SRSｴｱﾊﾞｯｸﾞ(ｳﾝﾃﾝｾｷ/ｼﾞｮｼｭｾｷ,ｻｲﾄﾞ,ｶｰﾃﾝ),LT.GRAY,TRIM1#

 3
74612D - COVER, ASSIST GRIP
74612-B2070B0

M700,710..MODA

SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&SRSｴｱﾊﾞｯｸﾞ(ｳﾝﾃﾝｾｷ/ｼﾞｮｼｭｾｷ,ｻｲﾄﾞ,ｶｰﾃﾝ),LT.GRAY,TRIM1#

 6
74612-B2070B0

M700,710..MODA

LT.GRAY,TRIM1#

 2
74612D - COVER, ASSIST GRIP
74612-B2070B0

M700,710..MODA

SRSｻｲﾄﾞｴｱﾊﾞｯｸ&SRSｶｰﾃﾝｼｰﾙﾄﾞｴｱﾊﾞｯｸ&SRSｴｱﾊﾞｯｸﾞ(ｳﾝﾃﾝｾｷ/ｼﾞｮｼｭｾｷ,ｻｲﾄﾞ,ｶｰﾃﾝ),LT.GRAY,TRIM1#

 6
74612-B2070B0

M700,710..MODA

LT.GRAY,TRIM1#

 2

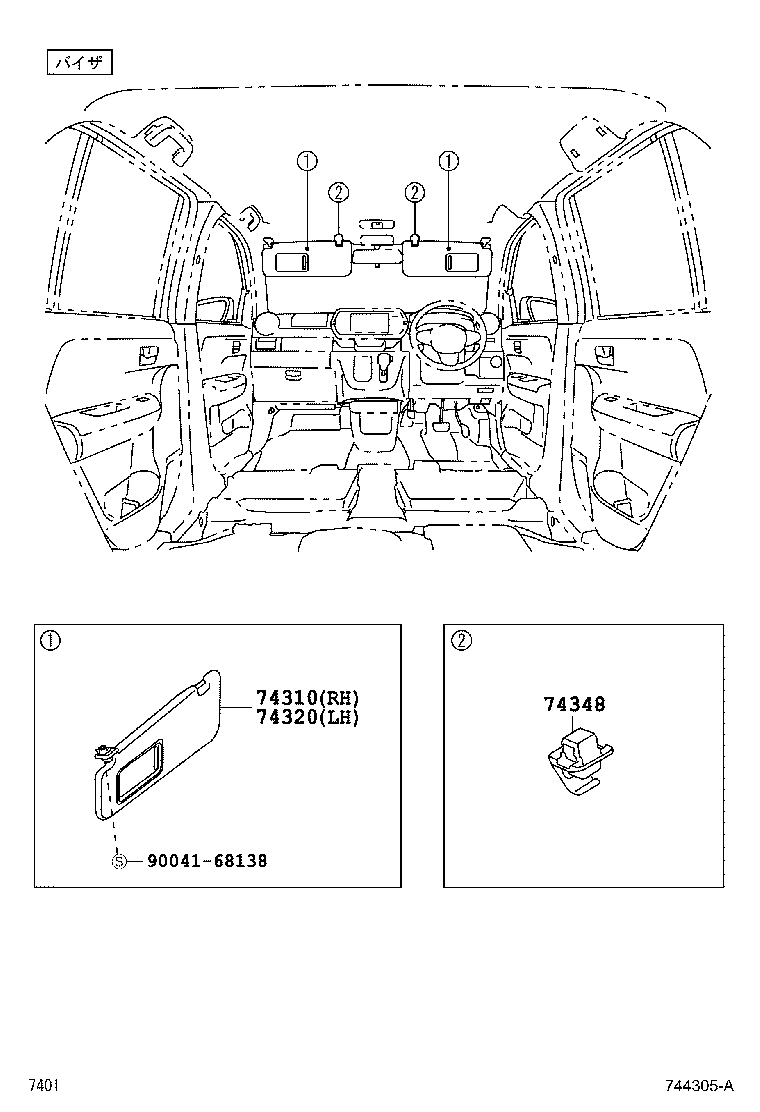

ILLUST NO. 2 OF 2(1604- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ

diagram 74310 74320 74348 9004168138
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-B1221B0

M700,710..MODA

LT.GRAY,TRIM1#

 1
74310-B1250B0

M700,710..MODA

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-B1190B0

M700,710..MODA

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-B2020B0

M700,710..MODA

LT.GRAY,TRIM1#

 2
Common parts
90041-68138
