M700A-GBNE (2016)
Toyota Passo

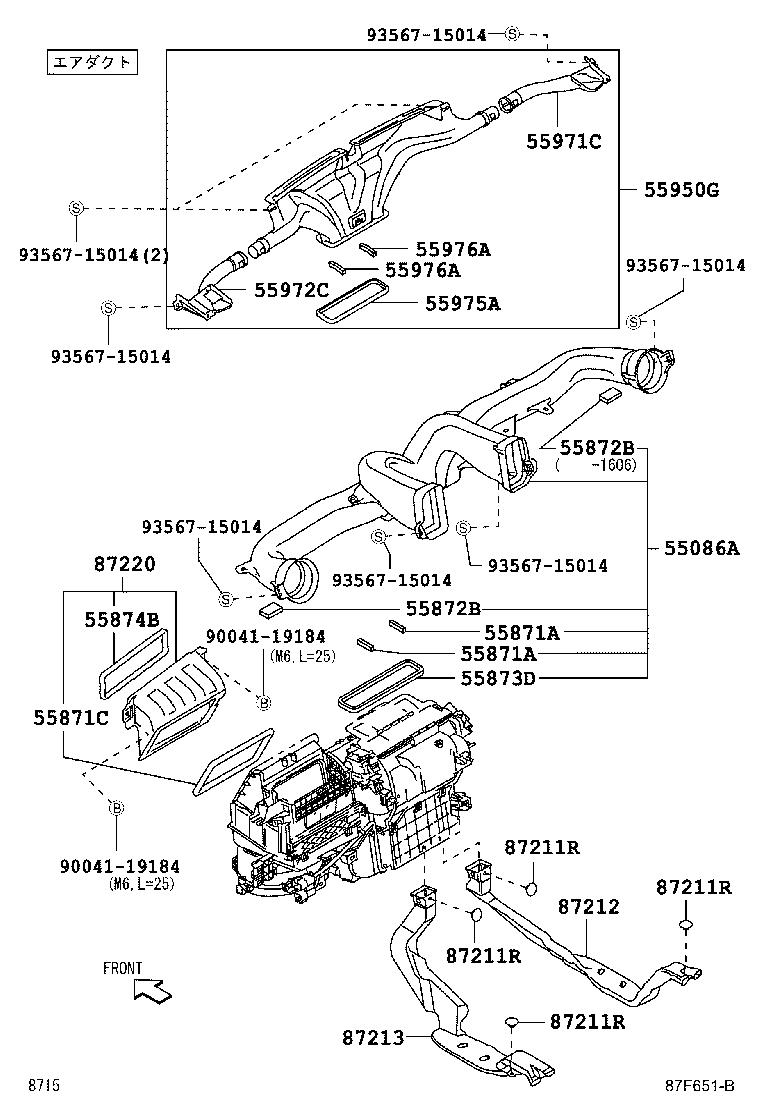

ILLUST NO. 2 OF 3(1604- )
ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-B1120 |
M700,710 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B1040 |
M700,710 |
2 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B1040 |
M700,710 |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55875-B1030 |
M700,710 |
1 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55871-B1050 |
M700,710 |
1 | ||
| 55871-B1050 |
M700,710 |
2 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55871-B1050 |
M700,710 |
1 | ||
| 55871-B1050 |
M700,710 |
2 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-B1060 |
M700,710 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55876-B1020 |
M700,710 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-B1090 |
M700,710 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55961-B1020 |
M700,710 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55962-B1020 |
M700,710 |
1 | ||
| 55975A - SEAL, DEFROSTER NOZZLE, NO.1 | ||||
| 55975-B1060 |
M700,710 |
1 | ||
| 55976A - SEAL, DEFROSTER NOZZLE, NO.2 | ||||
| 55976-B1030 |
M700,710 |
2 | ||
| 55976A - SEAL, DEFROSTER NOZZLE, NO.2 | ||||
| 55976-B1030 |
M700,710 |
2 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M700,710 寒冷地仕様 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M700,710 寒冷地仕様 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M700,710 寒冷地仕様 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M700,710 寒冷地仕様 |
4 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-B1020 |
M700,710 寒冷地仕様 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-B1010 |
M700,710 寒冷地仕様 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-B1140 |
M700,710 |
1 | ||
| Common parts | ||||
| 90041-19184 | ||||
| 93567-15014 | ||||

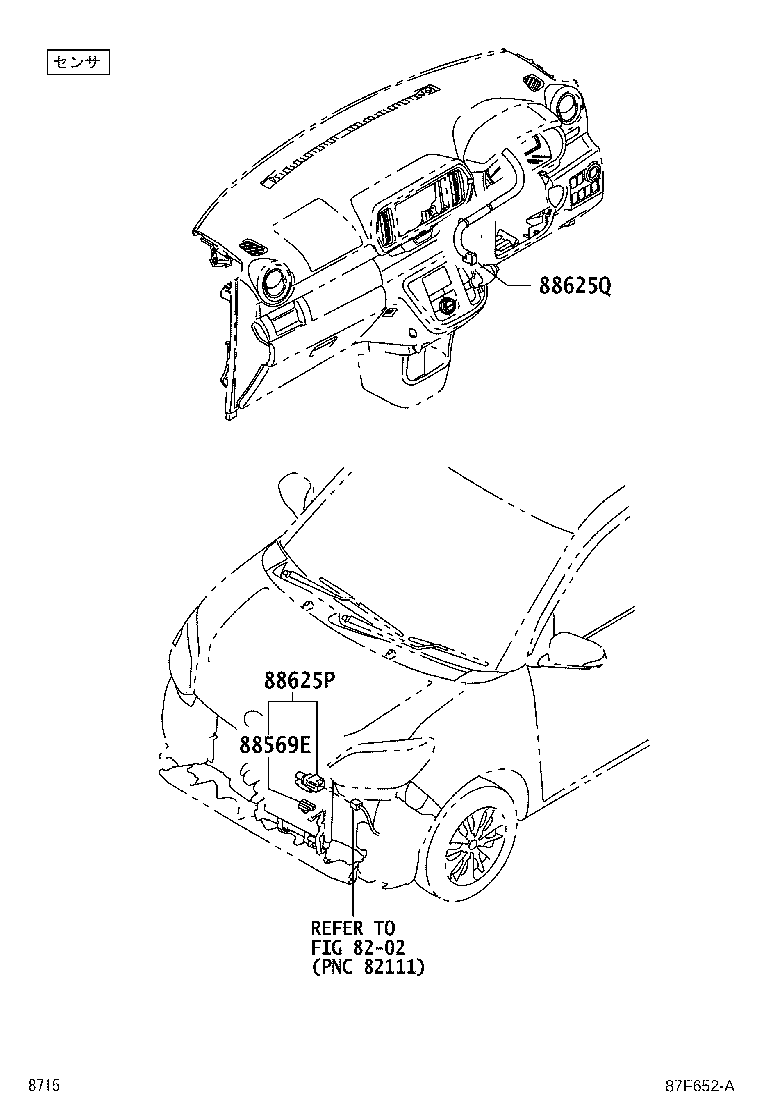

ILLUST NO. 3 OF 3(1604- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88569E - CLAMP (FOR COOLER THERMISTOR) | ||||
| 82711-1E360 |
M700,710 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
M700,710 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-B1040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 88625-B1040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

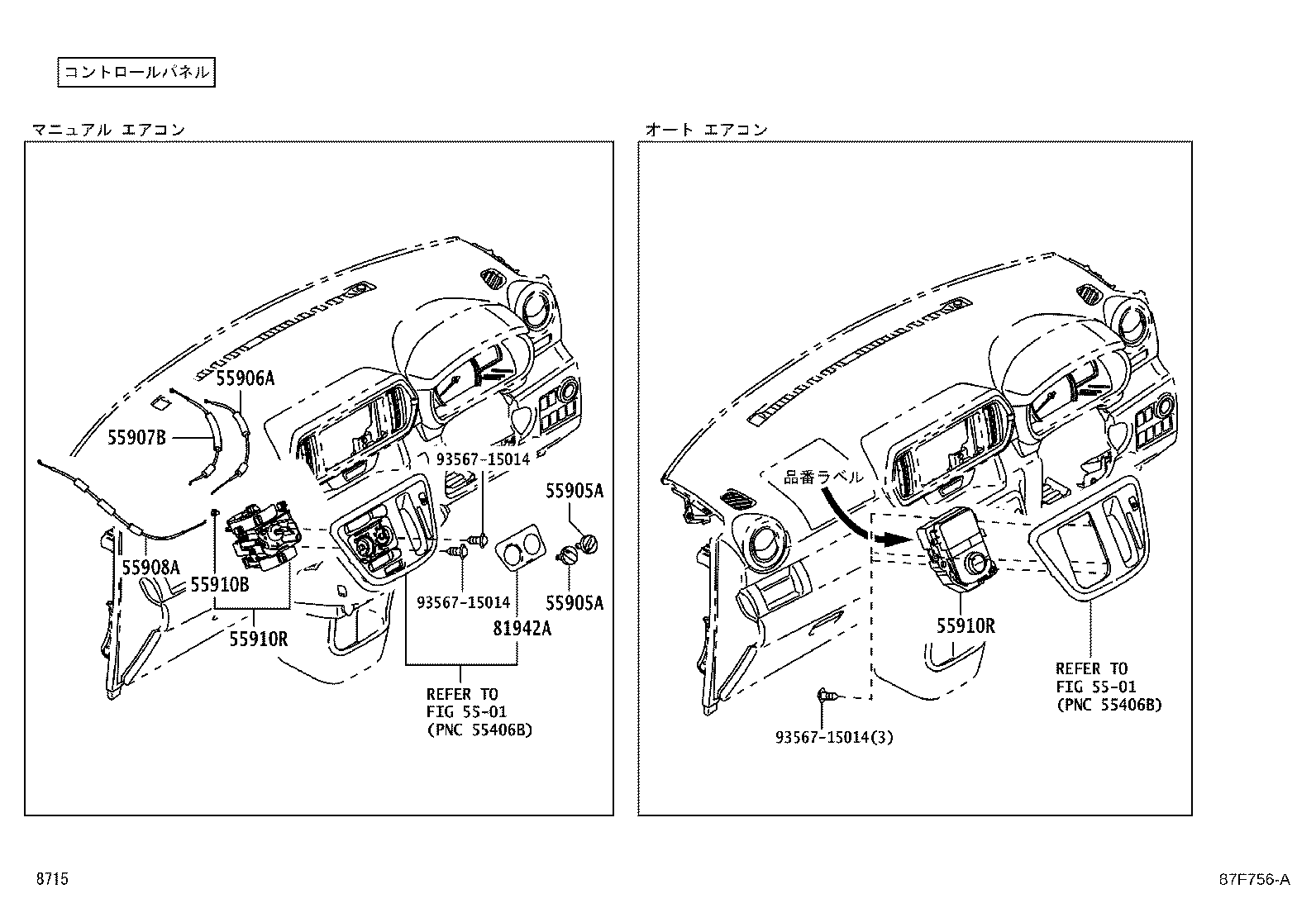

ILLUST NO. 1 OF 3(1604- )
ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
2 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55905-B2190 |
M700,710..X |
2 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
2 | ||
| 55905-B2190 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
2 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55905-B2190 |
M700,710..X |
2 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ),ﾓｰﾄﾞ切替用 |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55906-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”),ﾓｰﾄﾞ切替用 |
1 | ||
| 55906-B1070 |
M700,710..X ﾓｰﾄﾞ切替用 |
1 | ||
| 55906-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),ﾓｰﾄﾞ切替用 |
1 | ||
| 55906-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),ﾓｰﾄﾞ切替用 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),温度調整用 |
1 | ||
| 55907-B1070 |
M700,710..X 温度調整用 |
1 | ||
| 55907-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),温度調整用 |
1 | ||
| 55907-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ),温度調整用 |
1 | ||
| 55907-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”),温度調整用 |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ),内外気切替用 |
1 | ||
| 55908-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”),内外気切替用 |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55908-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”),内外気切替用 |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55908-B1070 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”),内外気切替用 |
1 | ||
| 55908-B1070 |
M700,710..X 内外気切替用 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81936-B2040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 81936-B2040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
1 | ||
| 81936-B2040 |
M700,710..X |
1 | ||
| 81936-B2040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 81936-B2040 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
1 | ||
| 55910-B1150 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1160 |
M700,710..X |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1150 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
1 | ||
| 55910-B1150 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1160 |
M700,710..X |
1 | ||
| 55910-B1160 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 55910-B1150 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-B1380 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(STYLE“SA V”) |
1 | ||
| 81942-B1380 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(T;X ﾊﾟｯｹｰｼﾞ) |
1 | ||
| 81942-B1380 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 81942-B1380 |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| 81942-B1380 |
M700,710..X |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”G ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| GAITO-NASHI |
M700,710..X ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X”L ﾊﾟｯｹｰｼﾞ”) |
1 | ||
| Common parts | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
