M700A-GBNE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )X

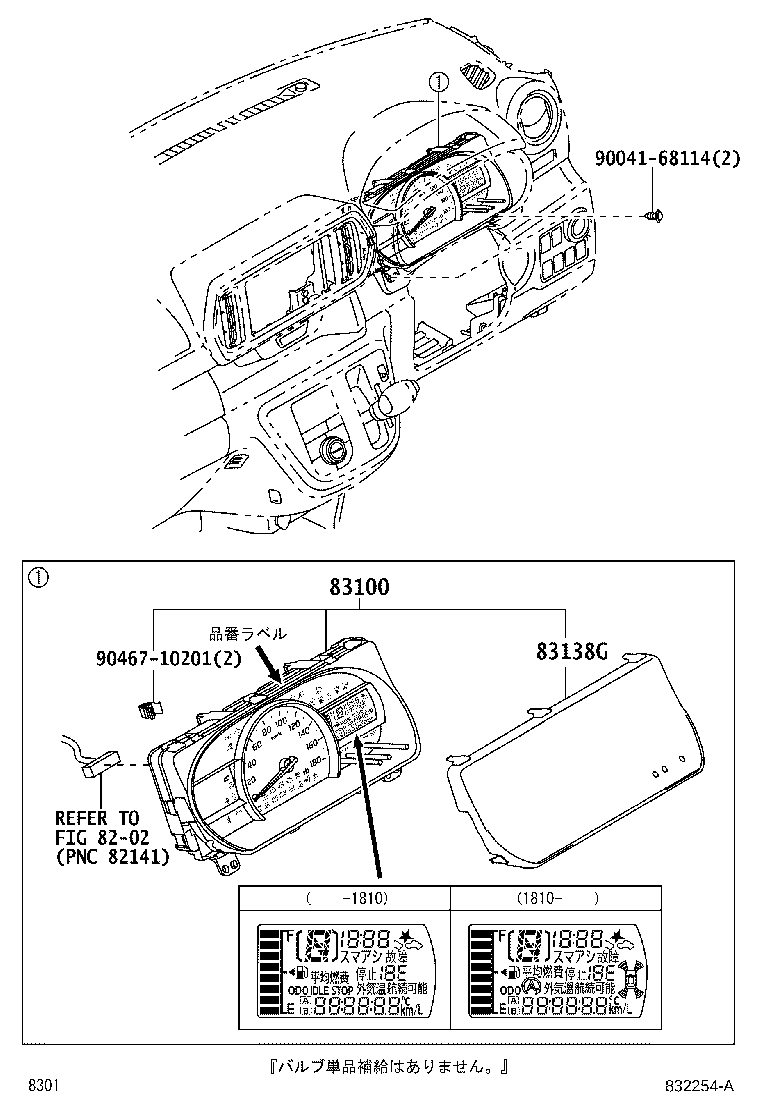

Click highlighted areas on diagram

ﾀｺﾒｰﾀ ﾅｼ

diagram 8202 83100 83138G 9004168114 9046710201
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-B1D40

M700,710..X

YAZAKI,ﾀｺﾒｰﾀ 無し

 1
83800-B1D41

M700,710..X

YAZAKI,ﾀｺﾒｰﾀ 無し

 1
83800-B1E50

M700,710..X

YAZAKI,ﾀｺﾒｰﾀ 無し

 1
83800-B1D42

M700,710..X

YAZAKI,ﾀｺﾒｰﾀ 無し

 1
83138G - GLASS, COMBINATION METER
83852-B1D30

M700,710..X

 1
Common parts
90041-68114
90467-10201
Linked diagrams
8202
