M700A-GBNE (2016)

Toyota Passo

Production Apr 2016 - Oct 2018
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )

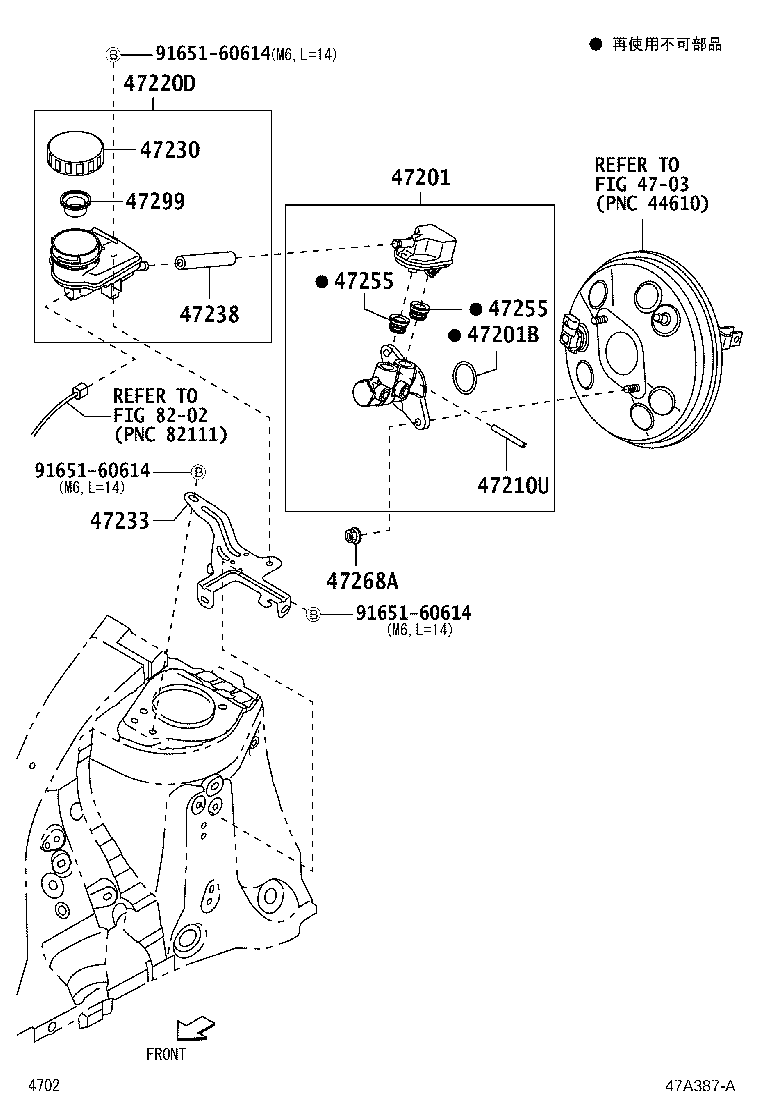

Click highlighted areas on diagram

diagram 4703 47201 47201B 47210U 47220D 47230 47233 47238 47255 47255 47268A 47299 8202 9165160614 9165160614 9165160614
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-B1190

M700,710

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90043-01352

M700,710

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90042-43029

M700,710

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-B1110

M700,710

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-B2030

M700,710

 1
47233 - BRACKET, RESERVOIR
47233-B1050

M700,710

 1
47238 - HOSE, MASTER CYLINDER BRIDGE
47234-B1060

M700,710

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-B2050

M700,710

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-B2050

M700,710

 2
47268A - NUT, BRAKE MASTER CYLINDER
90041-79124

M700,710

M8

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-87401

M700,710

 1
Common parts
91651-60614
Linked diagrams
4703
8202
