M700A-GBNE (2016)
Toyota Passo
Production
Apr 2016
-
Oct 2018
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

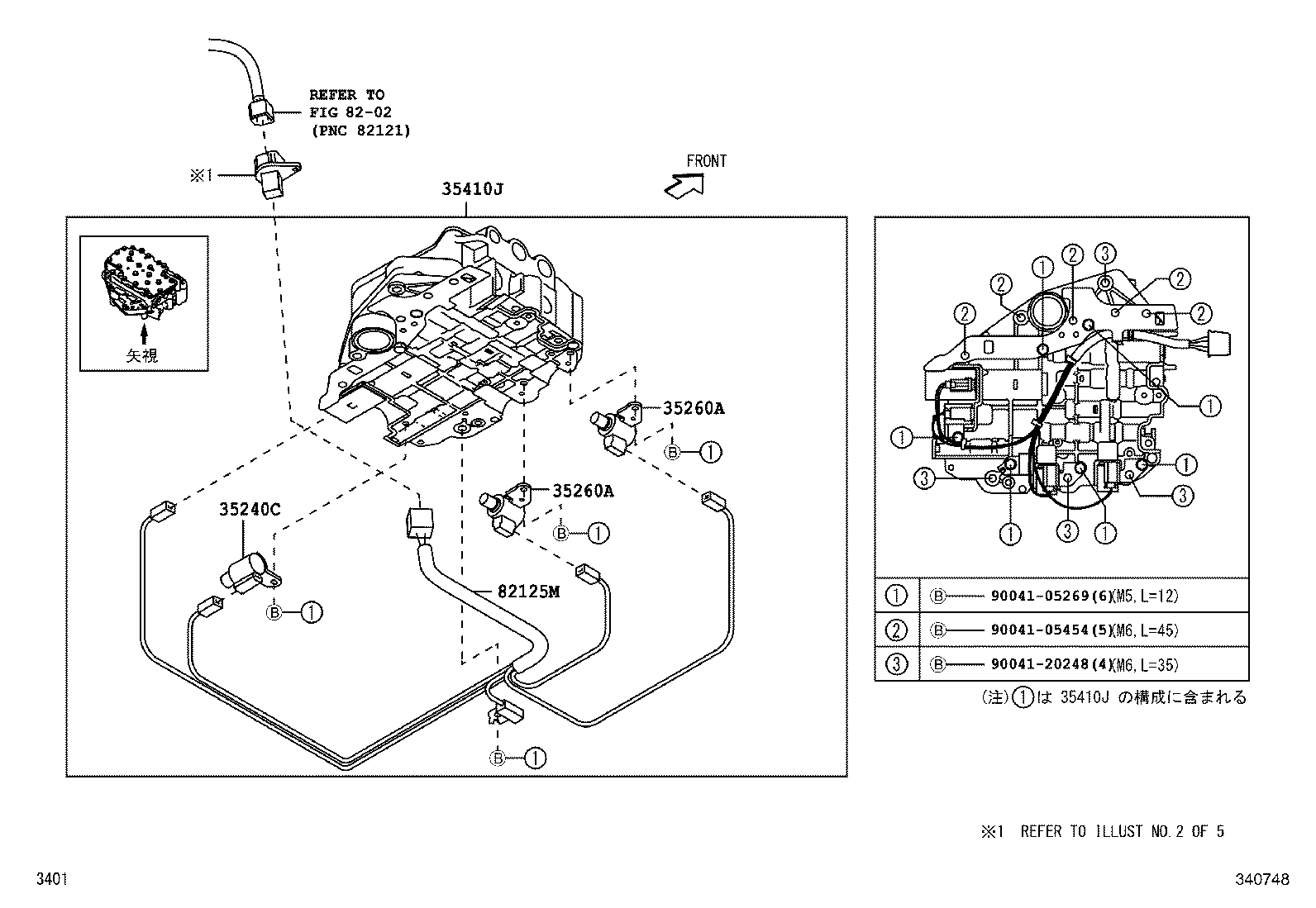

ILLUST NO. 3 OF 5(1604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35240C - SOLENOID ASSY, TRANSMISSION 3WAY, NO.1 | ||||
| 35240-B2020 |
M700,710 |
1 | ||
| 35260A - SOLENOID ASSY, TRANSMISSION 3WAY, NO.4 | ||||
| 35260-B2010 |
M700,710 |
2 | ||
| 35260A - SOLENOID ASSY, TRANSMISSION 3WAY, NO.4 | ||||
| 35260-B2010 |
M700,710 |
2 | ||
| 35410J - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-B2130 |
M700,710 |
1 | ||
| 82125M - WIRE, TRANSMISSION | ||||
| 82125-B2060 |
M700,710 |
1 | ||
| Common parts | ||||
| 90041-05269 | ||||
| 90041-05454 | ||||
| 90041-20248 | ||||
| Linked diagrams | ||||
| 8202 | ||||

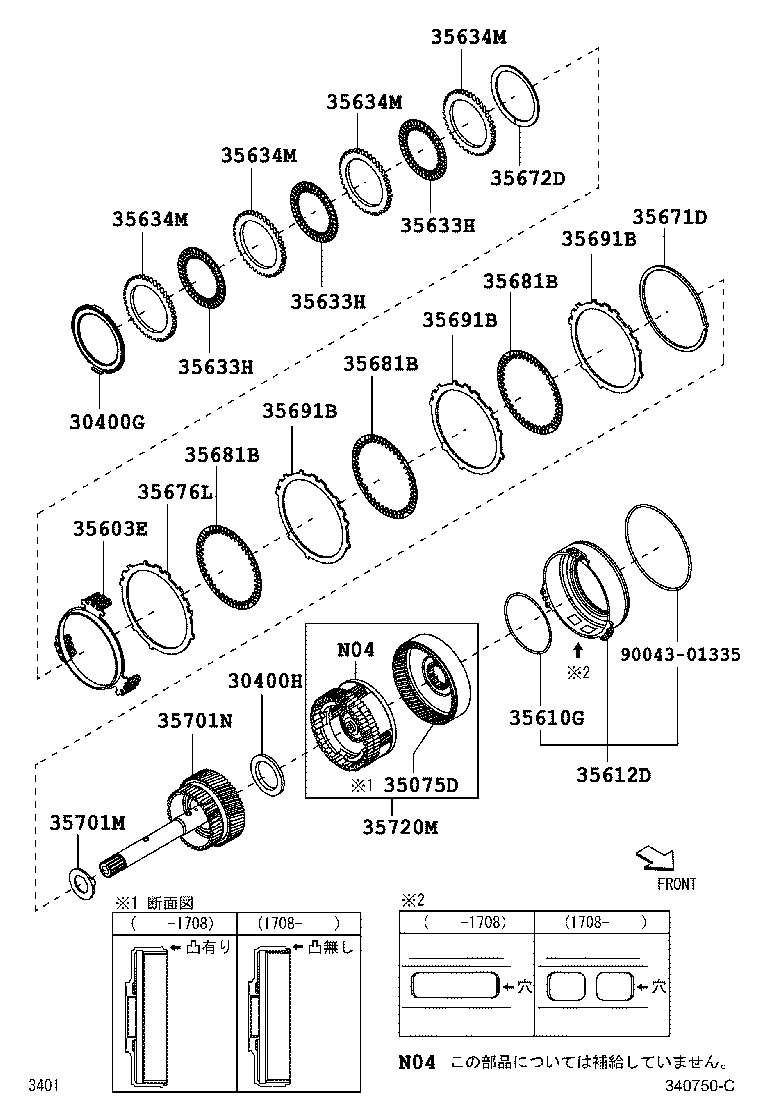

ILLUST NO. 5 OF 5(1604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400G - BEARING, THRUST NEEDLE ROLLER | ||||
| 90043-74061 |
M700,710 |
1 | ||
| 30400H - BEARING, THRUST NEEDLE ROLLER | ||||
| 90043-74053 |
M700,710 |
1 | ||
| 35075D - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35743-B2030 |
M700,710 |
1 | ||
| 35743-B2020 |
M700,710 |
1 | ||
| 35603E - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35608-B2010 |
M700,710 |
1 | ||
| 35610G - RING, O (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 90043-01336 |
M700,710 |
1 | ||
| 35612D - PISTON, FORWARD CLUTCH | ||||
| 35602-B2020 |
M700,710 |
1 | ||
| 35602-B2010 |
M700,710 |
1 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-B2051 |
M700,710 |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-B2051 |
M700,710 |
3 | ||
| 35633H - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-B2051 |
M700,710 |
3 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-B2010 |
M700,710 |
4 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-B2010 |
M700,710 |
4 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-B2010 |
M700,710 |
4 | ||
| 35634M - PLATE, CLUTCH, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-B2010 |
M700,710 |
4 | ||
| 35671D - PLATE, BRAKE CUSHION | ||||
| 35671-B2010 |
M700,710 |
1 | ||
| 35672D - PLATE, CLUTCH CUSHION | ||||
| 35672-B2010 |
M700,710 |
1 | ||
| 35676L - FLANGE, BRAKE | ||||
| 35676-B2030 |
M700,710 厚さ=1.8 |
1 | ||
| 35676-B2050 |
M700,710 厚さ=1.5 |
1 | ||
| 35676-B2010 |
M700,710 厚さ=1.4 |
1 | ||
| 35676-B2040 |
M700,710 厚さ=2.0 |
1 | ||
| 35676-B2060 |
M700,710 厚さ=1.7 |
1 | ||
| 35676-B2020 |
M700,710 厚さ=1.6 |
1 | ||
| 35676-B2070 |
M700,710 厚さ=1.9 |
1 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-B2040 |
M700,710 |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-B2040 |
M700,710 |
3 | ||
| 35681B - DISC, BRAKE, NO.1 | ||||
| 35681-B2040 |
M700,710 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35632-B2010 |
M700,710 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35632-B2010 |
M700,710 |
3 | ||
| 35691B - PLATE, BRAKE, NO.1 | ||||
| 35632-B2010 |
M700,710 |
3 | ||
| 35701M - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90043-74054 |
M700,710 T=2.6,厚さ=2.6 |
1 | ||
| 90043-74064 |
M700,710 T=3.6,厚さ=3.60 |
1 | ||
| 90043-74063 |
M700,710 T=3.43,厚さ=3.43 |
1 | ||
| 90043-74055 |
M700,710 T=2.8,厚さ=2.8 |
1 | ||
| 90043-74056 |
M700,710 T=3.0,厚さ=3.00 |
1 | ||
| 90043-74057 |
M700,710 T=3.2,厚さ=3.20 |
1 | ||
| 90043-74065 |
M700,710 T=3.8,厚さ=3.80 |
1 | ||
| 35701N - SHAFT SUB-ASSY, INPUT | ||||
| 35701-B2021 |
M700,710 |
1 | ||
| 35720M - GEAR ASSY, PLANETARY | ||||
| 35720-B2070 |
M700,710 |
1 | ||
| 35720-B2120 |
M700,710 |
1 | ||
| Common parts | ||||
| 90043-01335 | ||||

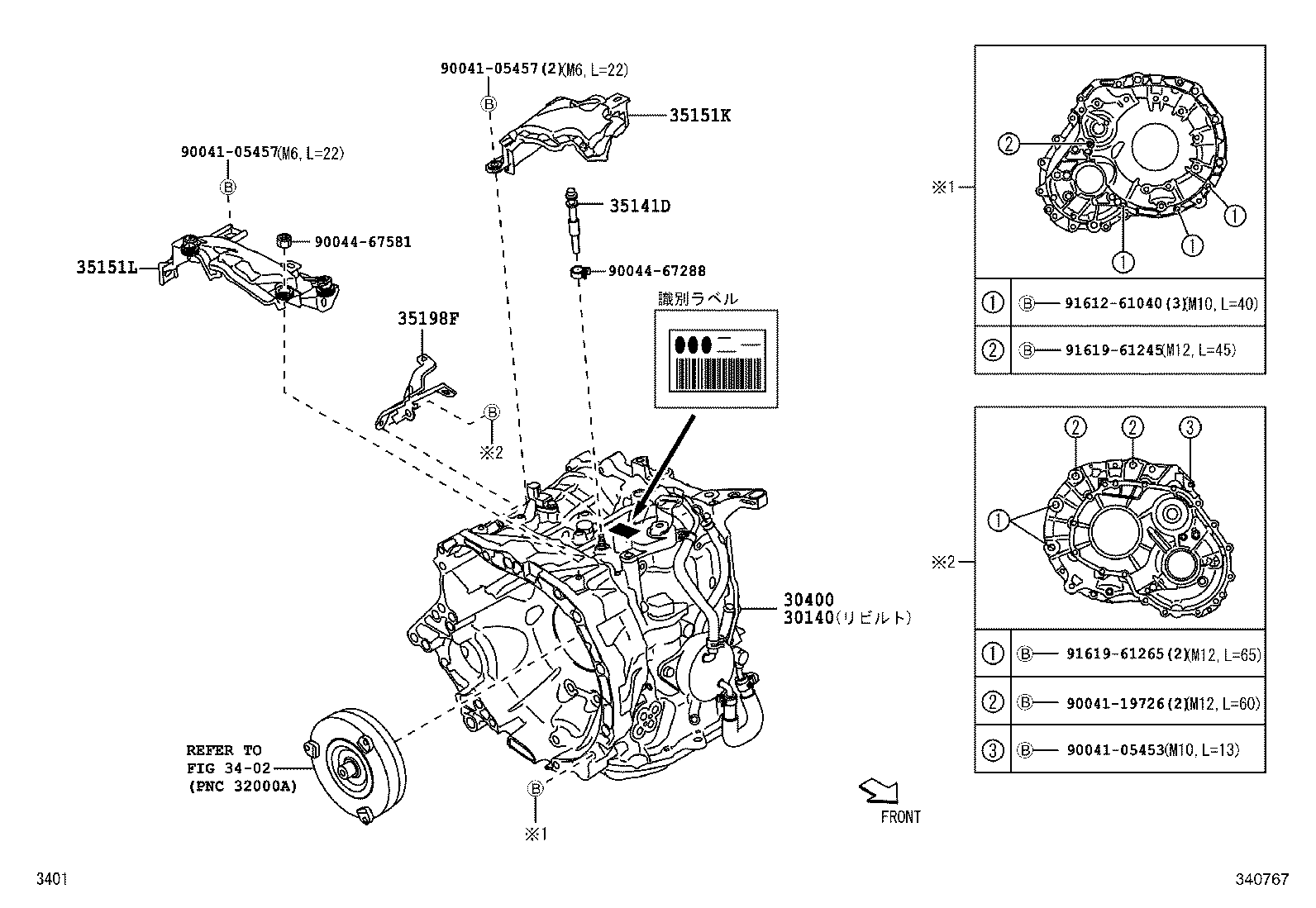

ILLUST NO. 1 OF 5(1604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-B0090 |
M700 識別ﾗﾍﾞﾙ 2CL(S) |
1 | ||
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-B1090 |
M700 識別ﾗﾍﾞﾙ 2CL(S) |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-B1040 |
M700,710 |
1 | ||
| 35151K - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-B1010 |
M700,710 |
1 | ||
| 35151L - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-B1030 |
M700,710 |
1 | ||
| 35198F - BRACKET, WIRE HARNESS CLAMP | ||||
| 82715-B1440 |
M700,710 |
1 | ||
| Common parts | ||||
| 90041-05453 | ||||
| 90041-05457 | ||||
| 90041-19726 | ||||
| 90044-67288 | ||||
| 90044-67581 | ||||
| 91612-61040 | ||||
| 91619-61245 | ||||
| 91619-61265 | ||||
| Linked diagrams | ||||
| 3402 | ||||

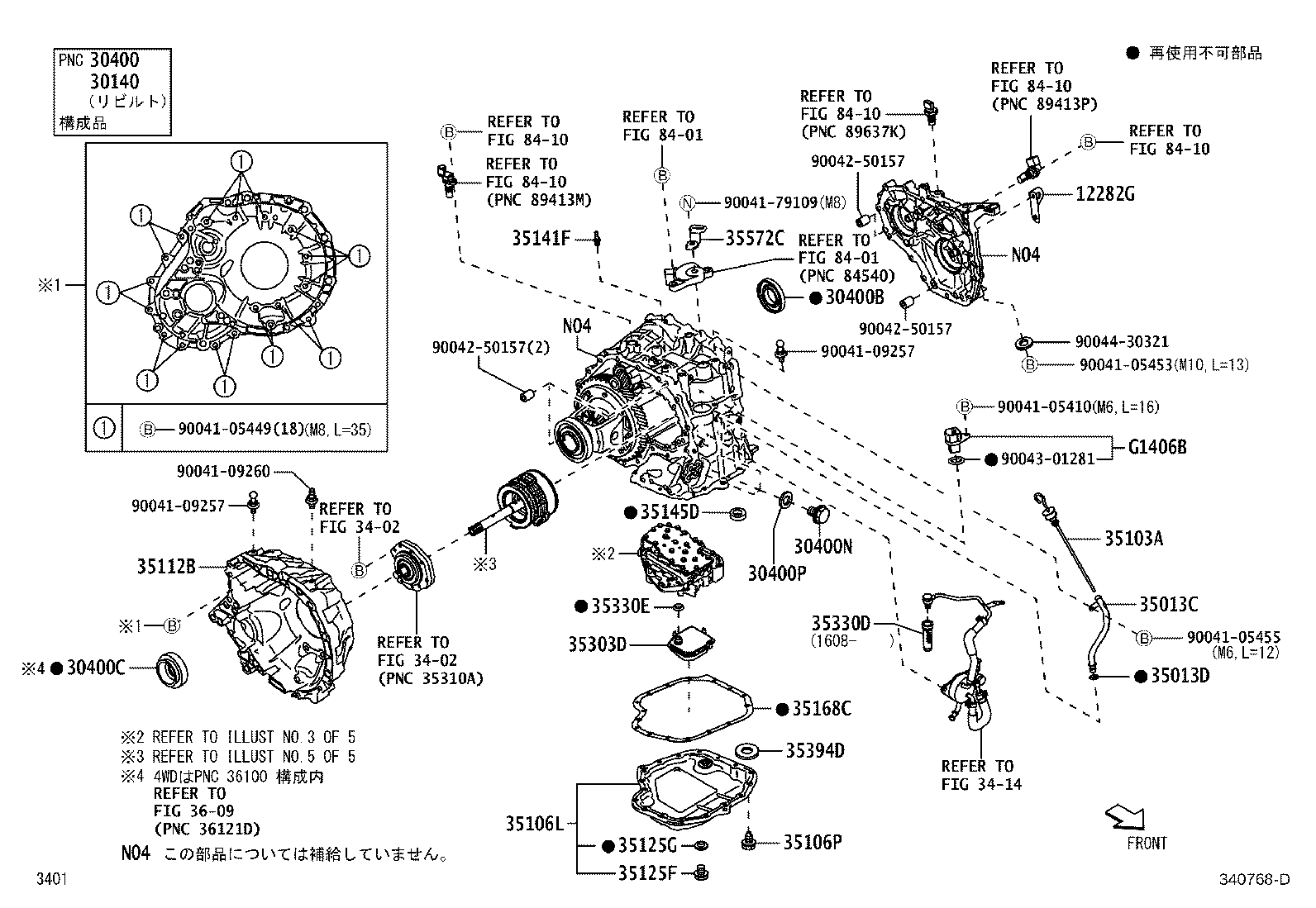

ILLUST NO. 2 OF 5(1604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12282G - HANGER, TRANSAXLE | ||||
| 12282-B2030 |
1KRFE..M700,710 |
1 | ||
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-B0090 |
M700 識別ﾗﾍﾞﾙ 2CL(S) |
1 | ||
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-B1090 |
M700 識別ﾗﾍﾞﾙ 2CL(S) |
1 | ||
| 30400B - SEAL, TYPE T OIL, NO.1(FOR CVT) | ||||
| 90043-11421 |
M700,710 |
1 | ||
| 30400C - SEAL, TYPE T OIL, NO.2(FOR CVT) | ||||
| 90043-11422 |
M700 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90041-05453 |
M700,710 |
3 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90044-30325 |
M700,710 |
3 | ||
| 35013C - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-B1020 |
M700,710 |
1 | ||
| 35013D - RING, O(FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01160 |
M700,710 |
1 | ||
| 35103A - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-B1080 |
M700,710 |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35160-B2030 |
M700,710 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90041-20203 |
M700,710 M6,L=14.5 |
17 | ||
| 35112B - CASE, TORQUE CONVERTER & DIFFRENTIAL | ||||
| 35111-B1012 |
M700,710 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90043-41041 |
M700,710 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90044-30281 |
M700,710 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90049-15054 |
M700,710 |
1 | ||
| 35145D - GASKET, TRANSAXLE CASE | ||||
| 35145-B2011 |
M700,710 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-B2020 |
M700,710 |
1 | ||
| 35303D - STRAINER SUB-ASSY, OIL | ||||
| 35303-B2012 |
M700,710 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35398-B2010 |
M700,710 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90043-01347 |
M700,710 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 33449-B2010 |
M700,710 |
1 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-B2010 |
M700,710 |
1 | ||
| G1406B - CONNECTOR SUB-ASSY, TRANS SOLENOID | ||||
| G1406-97201 |
M700,710 |
1 | ||
| Common parts | ||||
| 90041-05410 | ||||
| 90041-05449 | ||||
| 90041-05453 | ||||
| 90041-05455 | ||||
| 90041-09257 | ||||
| 90041-09260 | ||||
| 90041-79109 | ||||
| 90042-50157 | ||||
| 90043-01281 | ||||
| 90044-30321 | ||||
| Linked diagrams | ||||
| 3402 | ||||
| 3414 | ||||
| 3609 | ||||
| 8401 | ||||
| 8410 | ||||

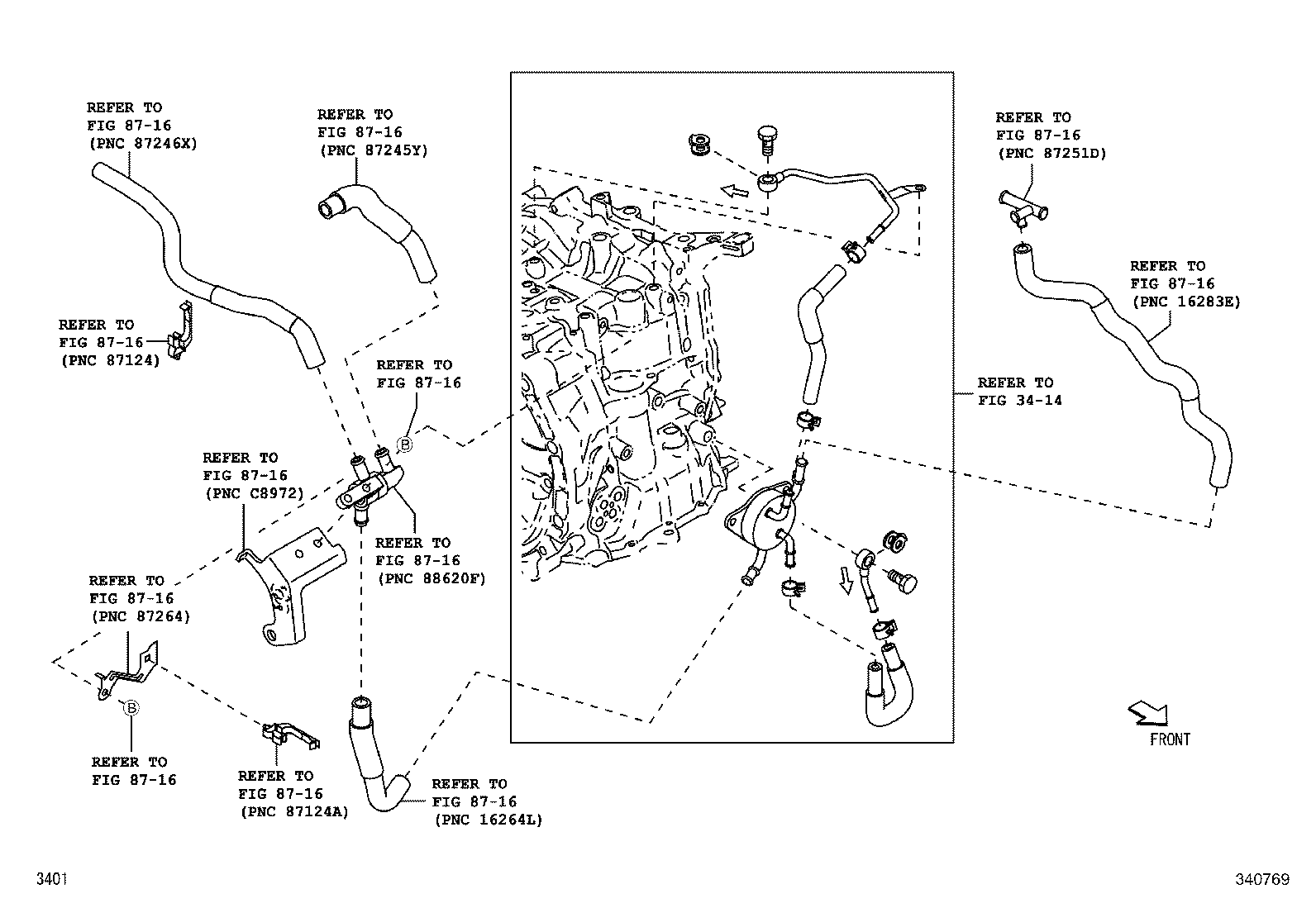

ILLUST NO. 4 OF 5(1604- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 3414 | ||||
| 8716 | ||||
