KGC35-AHEDK (2014)
Toyota Passo
Production
Apr 2014
-
Apr 2016
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )1KRFE

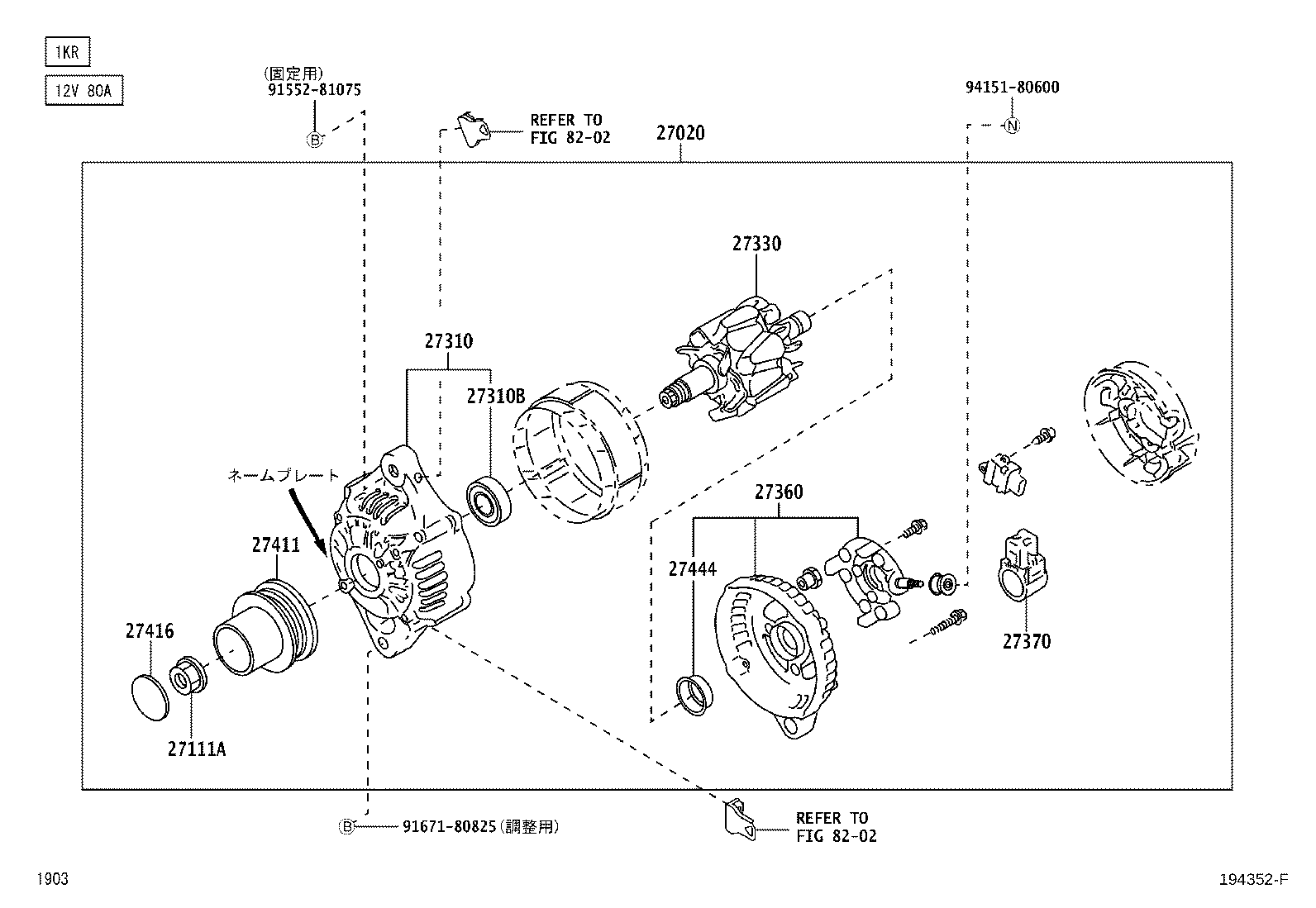

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-B1150 |
1KRFE..KGC3# 12V 80A |
1 | ||
| 27060-B1100 |
1KRFE..KGC3# 12V 70A |
1 | ||
| 27111A - NUT, ALTERNATOR | ||||
| 90099-05171 |
1KRFE..KGC3# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-B1070 |
1KRFE..KGC3# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27791-87707 |
1KRFE..KGC3# |
1 | ||
| 9004C-37008 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-87716 |
1KRFE..KGC3# |
1 | ||
| 27330-B1030 |
1KRFE..KGC3# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-B1010 |
1KRFE..KGC3# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-87205 |
1KRFE..KGC3# |
1 | ||
| 27370-B1020 |
1KRFE..KGC3# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27415-0W210 |
1KRFE..KGC3# |
1 | ||
| 27411-B1010 |
1KRFE..KGC3# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1KRFE..KGC3# |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-B1010 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 91552-81075 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
