KGC35-AHECK (2014)

Toyota Passo

Production Apr 2014 - Apr 2016
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1404- )

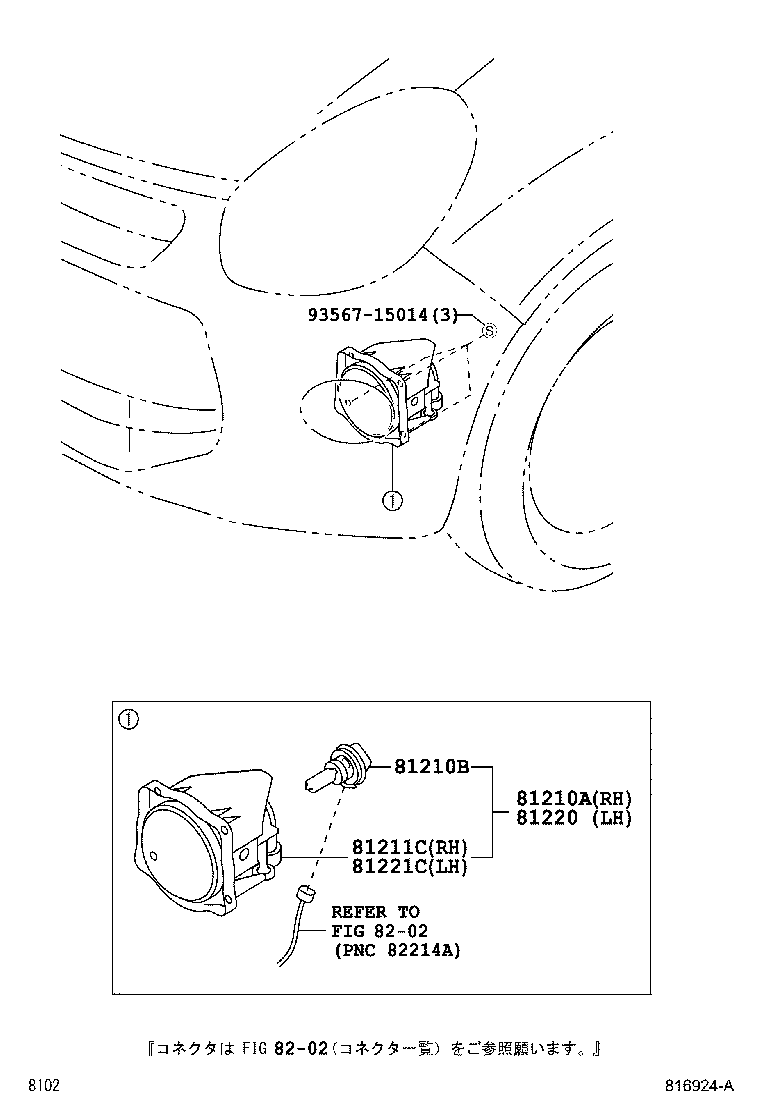

Click highlighted areas on diagram

diagram 81210A 81210B 81211C 81220 81221C 8202 8202 9356715014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-B1060

KGC3#,NGC30..G,X

ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ(19W)

 1
81210B - BULB, FOG LAMP
90049-51154

KGC3#,NGC30..G,X

12V 35W H8,D−OPT(35W)

 2
90049-51185

KGC3#,NGC30..G,X

12V 19W H16,ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ(19W)

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-B1050

KGC3#,NGC30..G,X

ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ(19W)

 1
81220 - LAMP ASSY, FOG, LH
81220-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-B1060

KGC3#,NGC30..G,X

ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ(19W)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81211-B1050

KGC3#,NGC30..G,X

ﾌﾛﾝﾄ ﾌｫｸﾞﾗﾝﾌﾟ(19W)

 1
Common parts
93567-15014
Linked diagrams
8202
