KGC35-AHECK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)

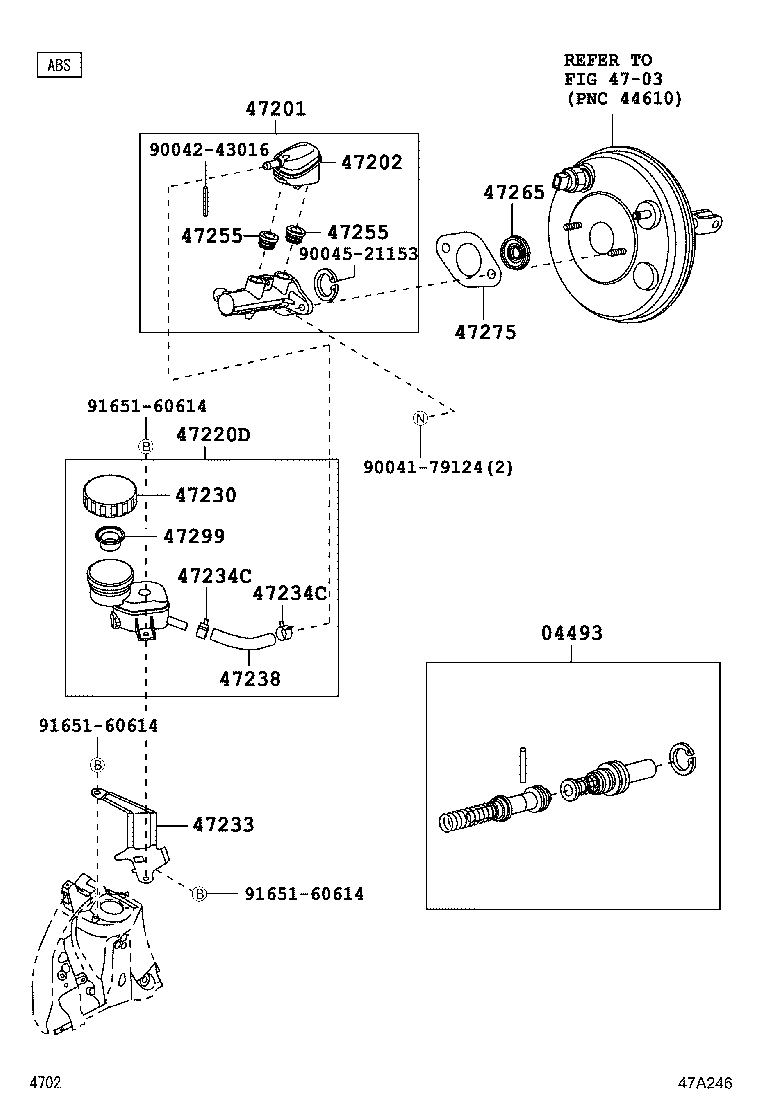

Click highlighted areas on diagram
ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-B2040 |
KGC3#,NGC30 |
1 | ||
| 04493-B2040 |
KGC3#,NGC30 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-B1070 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47201-B1070 |
KGC3#,NGC30 有り−VSC |
1 | ||
| 47201-B1170 |
KGC3#,NGC30 |
1 | ||
| 47201-B1170 |
KGC3#,NGC30 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47221-B1010 |
KGC3#,NGC30 |
1 | ||
| 47221-B1010 |
KGC3#,NGC30 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-B1010 |
KGC3#,NGC30 |
1 | ||
| 47220-B1010 |
KGC3#,NGC30 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-B2030 |
KGC3#,NGC30 |
1 | ||
| 47230-B2030 |
KGC3#,NGC30 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-B1040 |
KGC3#,NGC30 |
1 | ||
| 47233-B1040 |
KGC3#,NGC30 |
1 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90044-67161 |
KGC3#,NGC30 |
2 | ||
| 90044-67161 |
KGC3#,NGC30 |
2 | ||
| 47234C - CLIP(FOR RESERVOIR TUBE NO.1) | ||||
| 90044-67161 |
KGC3#,NGC30 |
2 | ||
| 90044-67161 |
KGC3#,NGC30 |
2 | ||
| 47238 - HOSE, MASTER CYLINDER BRIDGE | ||||
| 47234-B1010 |
KGC3#,NGC30 |
1 | ||
| 47234-B1010 |
KGC3#,NGC30 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87502 |
KGC3#,NGC30 |
2 | ||
| 47255-87502 |
KGC3#,NGC30 |
2 | ||
| 47255-B1010 |
KGC3#,NGC30 有り(VSC) |
2 | ||
| 47255-B1010 |
KGC3#,NGC30 有り−VSC |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-87502 |
KGC3#,NGC30 |
2 | ||
| 47255-87502 |
KGC3#,NGC30 |
2 | ||
| 47255-B1010 |
KGC3#,NGC30 有り(VSC) |
2 | ||
| 47255-B1010 |
KGC3#,NGC30 有り−VSC |
2 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47275-B2020 |
KGC3#,NGC30 |
1 | ||
| 47275-B2020 |
KGC3#,NGC30 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-87401 |
KGC3#,NGC30 |
1 | ||
| 47275-87401 |
KGC3#,NGC30 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-87401 |
KGC3#,NGC30 |
1 | ||
| 47299-87401 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 90041-79124 | ||||
| 90042-43016 | ||||
| 90045-21153 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 4703 | ||||
