KGC35-AHECK (2012)

Toyota Passo

Production Jun 2012 - Apr 2014
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1206- )KGC3#

Click highlighted areas on diagram

C0B

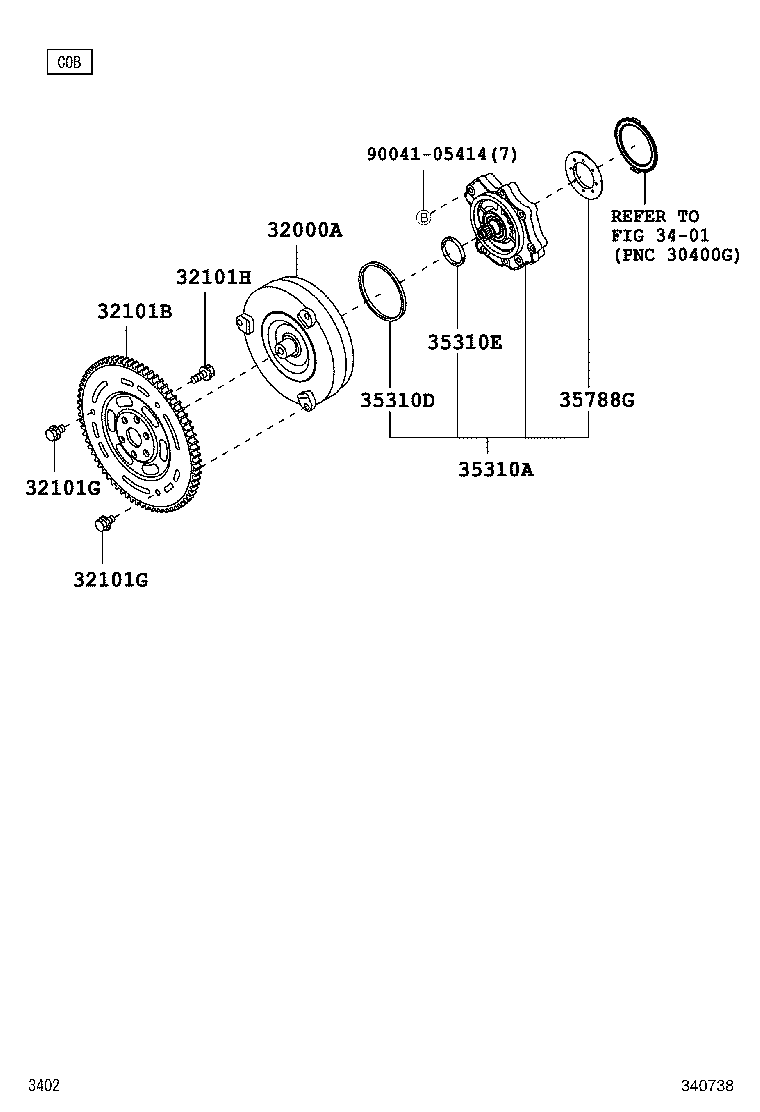

diagram 32000A 32101B 32101G 32101G 32101H 3401 35310A 35310D 35310E 35788G 9004105414
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-B1070

KGC3#

 1
32000-B1030

KGC3#

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-B1050

KGC3#

 1
32101-B1051

KGC3#

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05281

KGC3#

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05281

KGC3#

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05280

KGC3#,NGC30

M8,L=9.5,ｼﾙﾊﾞｰ

 1
90041-05280

KGC3#,NGC30

M8,L=9.5,ｼﾙﾊﾞｰ

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05281

KGC3#

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05281

KGC3#

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05280

KGC3#,NGC30

M8,L=9.5,ｼﾙﾊﾞｰ

 1
90041-05280

KGC3#,NGC30

M8,L=9.5,ｼﾙﾊﾞｰ

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

KGC3#

 6
90048-01037

KGC3#

 6
35310A - PUMP ASSY, FRONT OIL
35310-B9040

KGC3#

 1
35310-B9071

KGC3#

 1
35310-B9070

KGC3#

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90043-01332

KGC3#

 1
90043-01332

KGC3#

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
90043-11369

KGC3#

 1
90043-11369

KGC3#

 1
35788G - RACE, THRUST BEARING
35789-B2060

KGC3#

厚さ=0.8

 1
35789-B2010

KGC3#

厚さ=0.8

 1
35789-B2020

KGC3#

厚さ=1.0

 1
35789-B2030

KGC3#

厚さ=1.2

 1
35789-B2040

KGC3#

厚さ=1.4

 1
35789-B2110

KGC3#

厚さ=1.8

 1
35789-B2100

KGC3#

厚さ=1.6

 1
35789-B2071

KGC3#

厚さ=1.0

 1
35789-B2091

KGC3#

厚さ=1.4

 1
35789-B2090

KGC3#

厚さ=1.4

 1
35789-B2050

KGC3#

厚さ=1.6

 1
35789-B2111

KGC3#

厚さ=1.8

 1
35789-B2061

KGC3#

厚さ=0.8

 1
35789-B2070

KGC3#

厚さ=1.0

 1
35789-B2081

KGC3#

厚さ=1.2

 1
35789-B2080

KGC3#

厚さ=1.2

 1
35789-B2101

KGC3#

厚さ=1.6

 1
Common parts
90041-05414
Linked diagrams
3401
