KGC35-AHECK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )

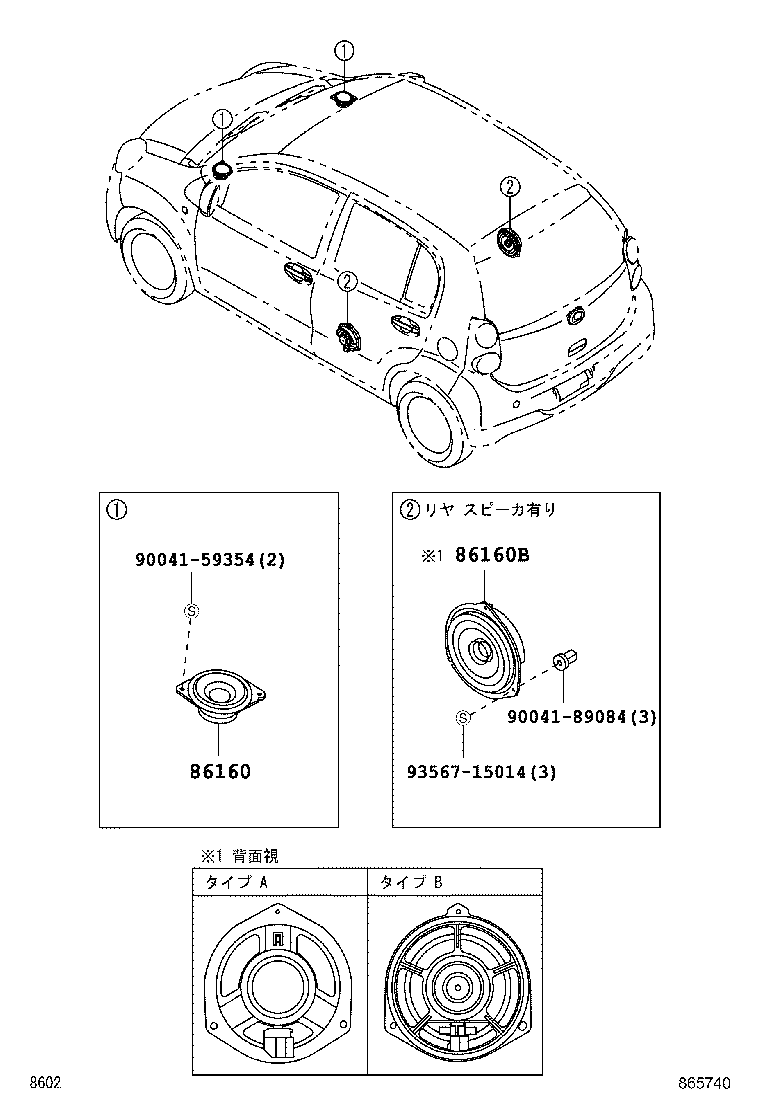

Click highlighted areas on diagram

diagram 86160 86160B 9004159354 9004189084 9356715014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-B1020

KGC3#,NGC30

 2
86160B - SPEAKER ASSY, REAR
86160-B1010

KGC3#

ﾘﾔｵｰﾃﾞｨｵ−16CM*2(ﾄﾞｱ)

 2
Common parts
90041-59354
90041-89084
93567-15014
