KGC35-AHECK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002- )

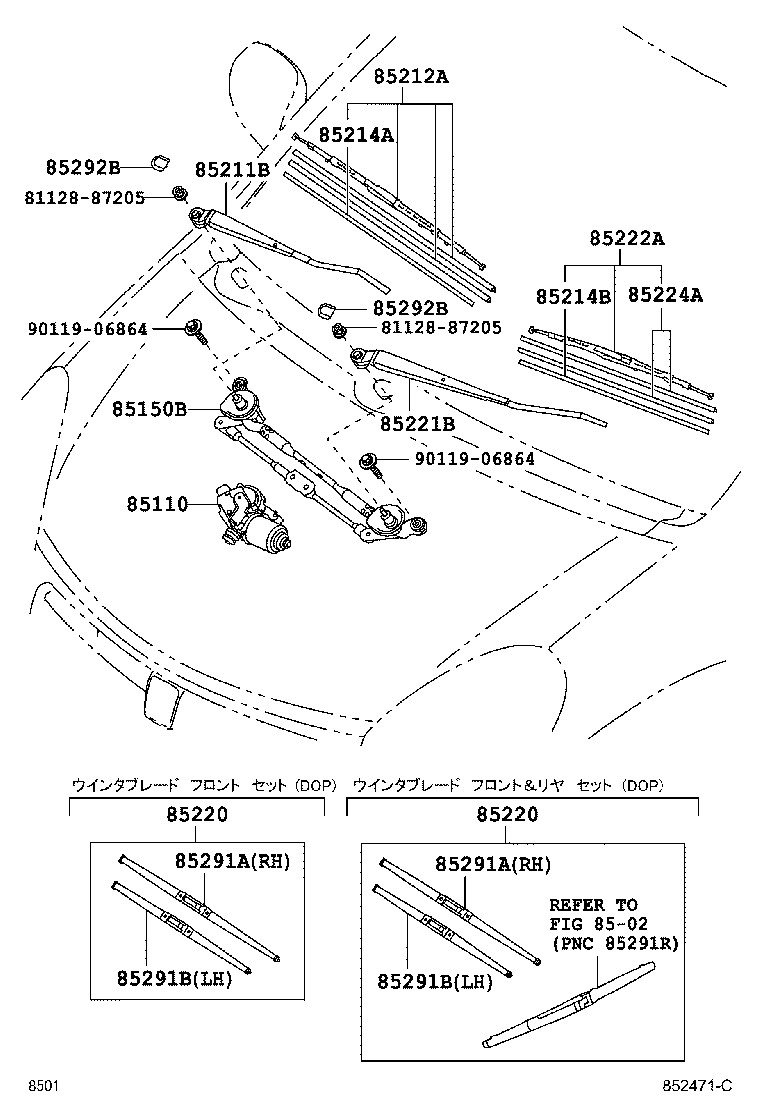

Click highlighted areas on diagram

diagram 8112887205 8112887205 8502 85110 85150B 85211B 85212A 85214A 85214B 85220 85220 85221B 85222A 85224A 85291A 85291A 85291B 85291B 85292B 85292B 9011906864 9011906864
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-B1020

KGC3#,NGC30

 1
85150B - LINK ASSY, WIPER
85150-B1010

KGC3#,NGC30

 1
85211B - ARM, FRONT WIPER, RH
85211-B1080

KGC3#,NGC30

 1
85212A - BLADE, FR WIPER, RH
85212-12361

KGC3#,NGC30

 1
85214A - RUBBER, WIPER, RH
85214-48031

KGC3#,NGC30

 1
85214B - RUBBER, WIPER, LH
85214-12301

KGC3#,NGC30

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85201-B1080

KGC3#..X

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ有り&ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ & ﾘﾔ

 1
85201-B1080

KGC3#,NGC30..G,HANA

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ & ﾘﾔ

 1
85201-B1070

KGC3#,NGC30..G,HANA

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ

 1
85201-B1070

KGC3#..X

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ有り&ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85201-B1080

KGC3#..X

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ有り&ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ & ﾘﾔ

 1
85201-B1080

KGC3#,NGC30..G,HANA

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ & ﾘﾔ

 1
85201-B1070

KGC3#,NGC30..G,HANA

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ

 1
85201-B1070

KGC3#..X

ﾘﾔｳｨﾝﾄﾞｳﾜｲﾊﾟｰ有り&ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT),ﾌﾛﾝﾄ

 1
85221B - ARM, FRONT WIPER, LH
85221-B1080

KGC3#,NGC30

 1
85222A - BLADE, FR WIPER, LH
85222-52121

KGC3#,NGC30

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-10190

KGC3#,NGC30

 2
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-33060

KGC3#,NGC30

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-33060

KGC3#,NGC30

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

KGC3#,NGC30

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

KGC3#,NGC30

ｳｨﾝﾀｰﾌﾞﾚｰﾄﾞ(D−OPT)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

KGC3#,NGC30

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020

KGC3#,NGC30

 2
Common parts
81128-87205
90119-06864
Linked diagrams
8502
