Toyota Passo KGC35 WIRELESS DOOR LOCK - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
JP
PASSO
KGC35-AHECK (2010)
8420 - WIRELESS DOOR LOCK

KGC35-AHECK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012

Engine 1KRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1002- )KGC3#

Click highlighted areas on diagram

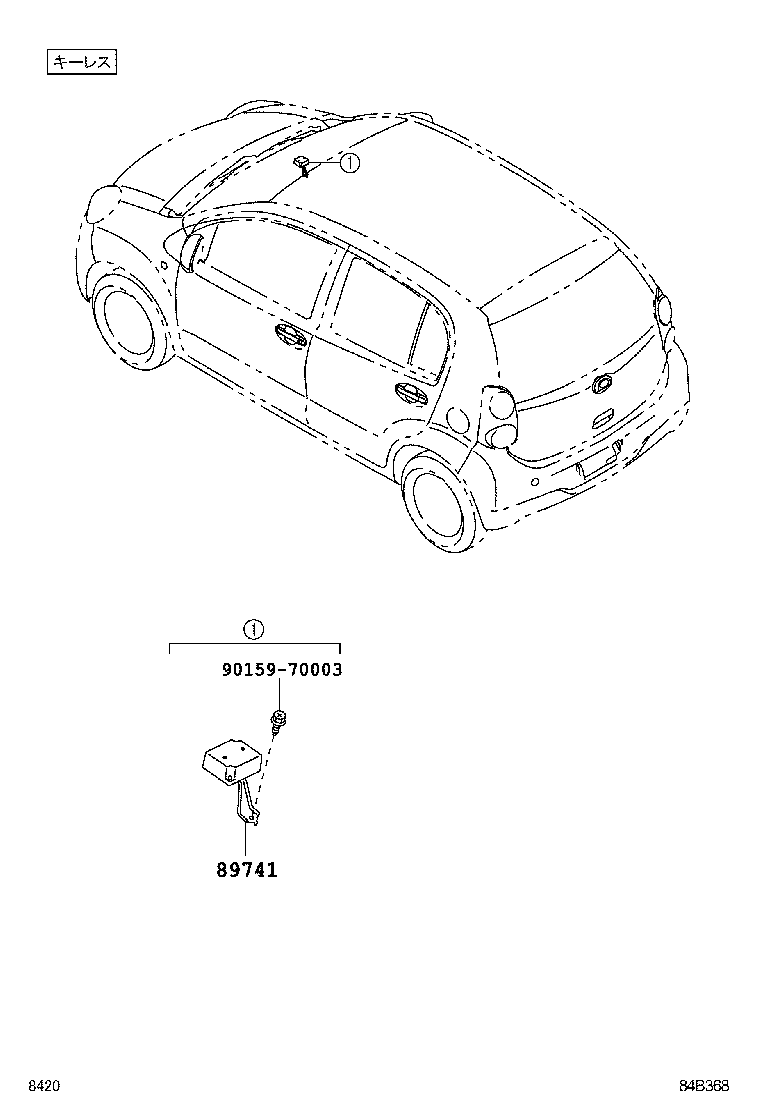

ｷｰﾚｽ

diagram

Part #	Description	Period	Qty	Price
89741 - RECEIVER, DOOR CONTROL
89741-B1090	KGC3#	02/2010 - 06/2012	1
89741-B1090	KGC3#..X L PACKAGE&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2010 - 06/2012	1
Common parts
90159-70003

(1002- )

Click highlighted areas on diagram

ｷｰﾌﾘｰ

diagram

Part #	Description	Period	Qty	Price
89990A - COMPUTER ASSY, SMART KEY
89990-B1060	KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 04/2011	1
89990-B1060	KGC3#..X L PACKAGE&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2010 - 06/2012	1
89990-B1060	KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 04/2011	1
89990-B1060	KGC3#..X 1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 06/2012	1
89992E - CASE, LESS OSCILLATOR ELECTRICAL KEY
89992-B1040	KGC3#..X 1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 06/2012	1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B2140	KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 04/2011	1
89997-B2140	KGC3#..X L PACKAGE&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	02/2010 - 06/2012	1
89997-B2140	KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 04/2011	1
89997-B2140	KGC3#..X 1.0X YURURI&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｷｰﾌﾘｰｼｽﾃﾑ)+ｱﾝｻｰﾊﾞｯｸ	09/2010 - 06/2012	1
Common parts
90159-70003
