KGC35-AHECK (2010)
Toyota Passo

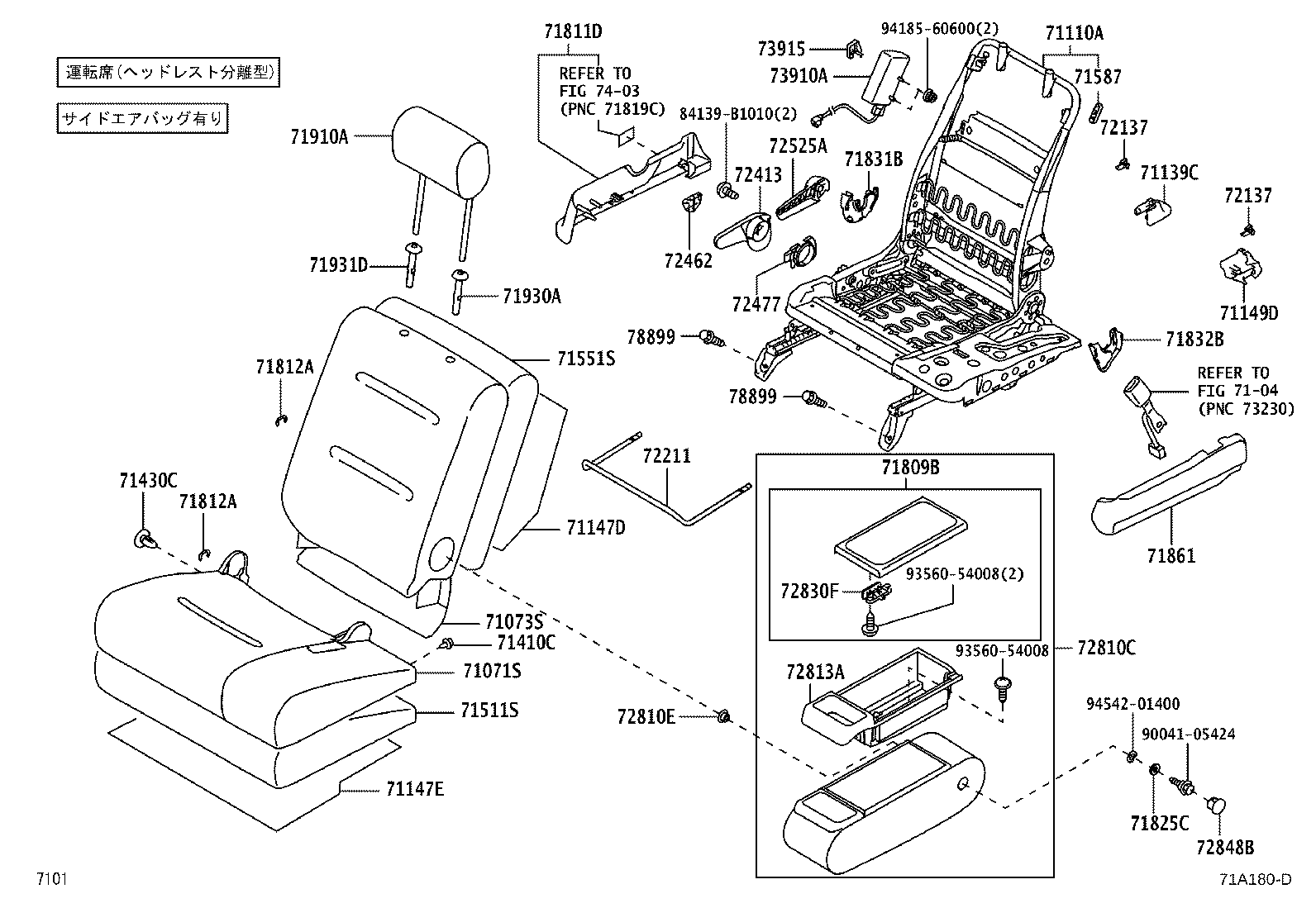

ILLUST NO. 1 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71071-B1280E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1690E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073-B1A10E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1A20E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1180 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71110-B1170 |
KGC3#,NGC30..G,X |
1 | ||
| 71110-B1180 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1140 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71147-B1020 |
KGC3#,NGC30..G,X |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71831-B1060B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71430C - CLIP | ||||
| 90044-67537 |
KGC3#..X 1.0X YURURI |
1 | ||
| 90044-67537 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1260 |
KGC3#,NGC30..G,X |
1 | ||
| 71505-B1270 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1270 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1290 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1280 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
KGC3#..X 1.0X YURURI |
4 | ||
| 71587-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1140E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71809-B1140E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1080E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1090E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72815-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
2 | ||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
2 | ||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI,GREGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI,GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
KGC3#,NGC30 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B1010E5 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B1010E5 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B1010E5 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B1010E5 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72477-58010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1160E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 72810-B1160E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 72810E - BUSH, FRONT SEAT ARMREST, NO.1 | ||||
| 90043-86127 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 90043-86127 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72813A - BOX, FRONT SEAT CENTER ARMREST | ||||
| 72813-B1030E1 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72813-B1030E1 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72830F - LOCK SUB-ASSY, FRONT SEAT ARMREST | ||||
| 72809-B1030E1 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72809-B1030E1 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B2020E6 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72848-B2020E6 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73910-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73910-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
ILLUST NO. 1 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71071-B1280E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1690E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073-B1A10E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1A20E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1180 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71110-B1170 |
KGC3#,NGC30..G,X |
1 | ||
| 71110-B1180 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1140 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71147-B1020 |
KGC3#,NGC30..G,X |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71831-B1060B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71430C - CLIP | ||||
| 90044-67537 |
KGC3#..X 1.0X YURURI |
1 | ||
| 90044-67537 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1260 |
KGC3#,NGC30..G,X |
1 | ||
| 71505-B1270 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1270 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1290 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1280 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
KGC3#..X 1.0X YURURI |
4 | ||
| 71587-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 71809B - COVER SUB-ASSY, FRONT SEAT ARMREST HOLDER | ||||
| 71809-B1140E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71809-B1140E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1080E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1090E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71825C - PLATE | ||||
| 72815-B1010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72815-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
2 | ||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
2 | ||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI,GREGE,TRIM4# |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI,GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
KGC3#,NGC30 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B1010E5 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72413-B1010E5 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B1010E5 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72462-B1010E5 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72477-58010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-B1160E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 72810-B1160E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 72810E - BUSH, FRONT SEAT ARMREST, NO.1 | ||||
| 90043-86127 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 90043-86127 |
KGC3#..X 1.0X YURURI |
1 | ||
| 72813A - BOX, FRONT SEAT CENTER ARMREST | ||||
| 72813-B1030E1 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72813-B1030E1 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72830F - LOCK SUB-ASSY, FRONT SEAT ARMREST | ||||
| 72809-B1030E1 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72809-B1030E1 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72848B - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-B2020E6 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 72848-B2020E6 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-05424 | ||||
| 93560-54008 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||

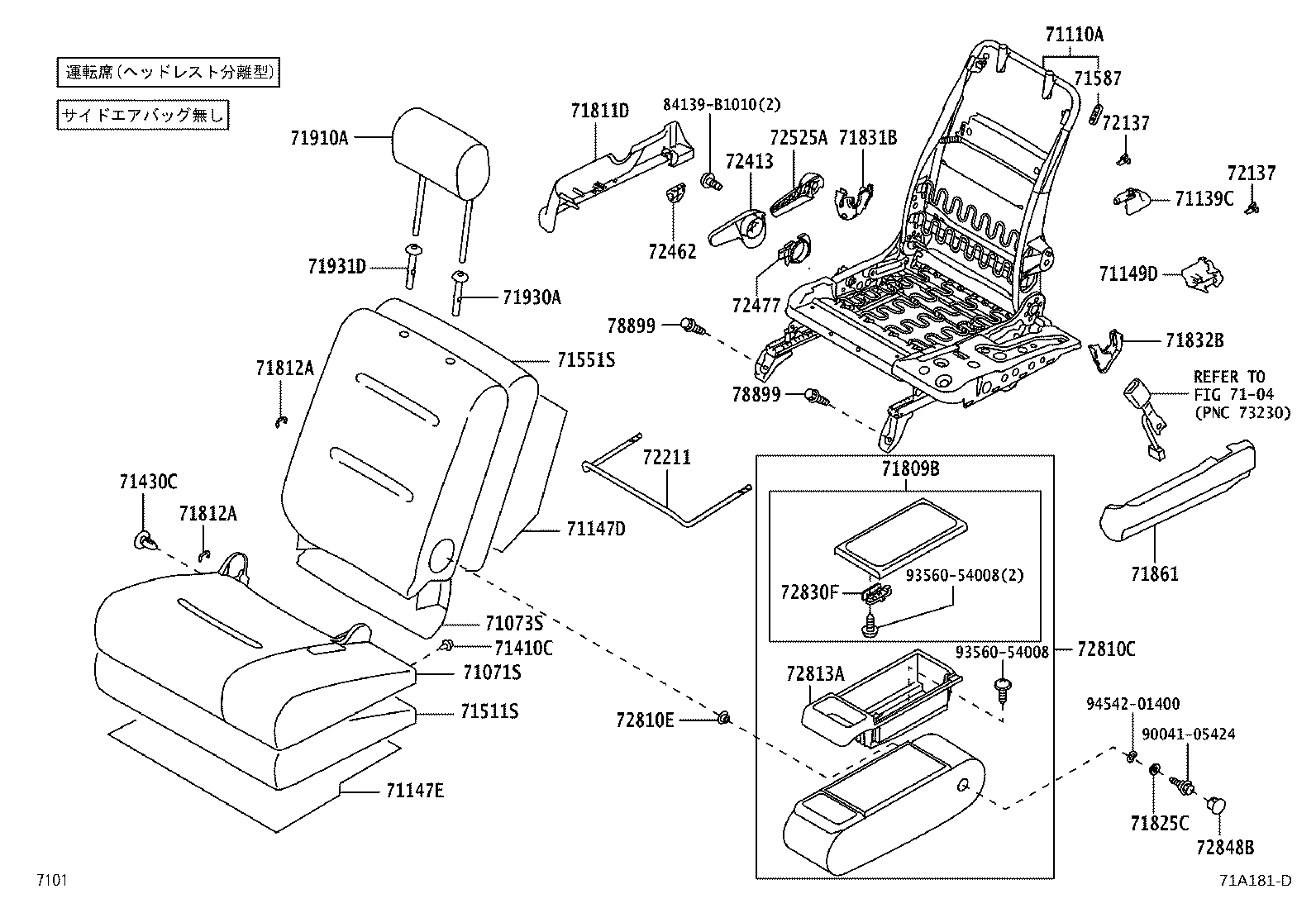

ILLUST NO. 1 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71071-B1280E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1690E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073-B1A10E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1A20E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1180 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71110-B1170 |
KGC3#,NGC30..G,X |
1 | ||
| 71110-B1180 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1140 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71147-B1020 |
KGC3#,NGC30..G,X |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71831-B1060B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1260 |
KGC3#,NGC30..G,X |
1 | ||
| 71505-B1270 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1270 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1290 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1280 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1080E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1090E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
KGC3#,NGC30 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73910-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73910-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915 - COVER, SEAT AIR BAG NO.1, RH | ||||
| 73915-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73915-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||

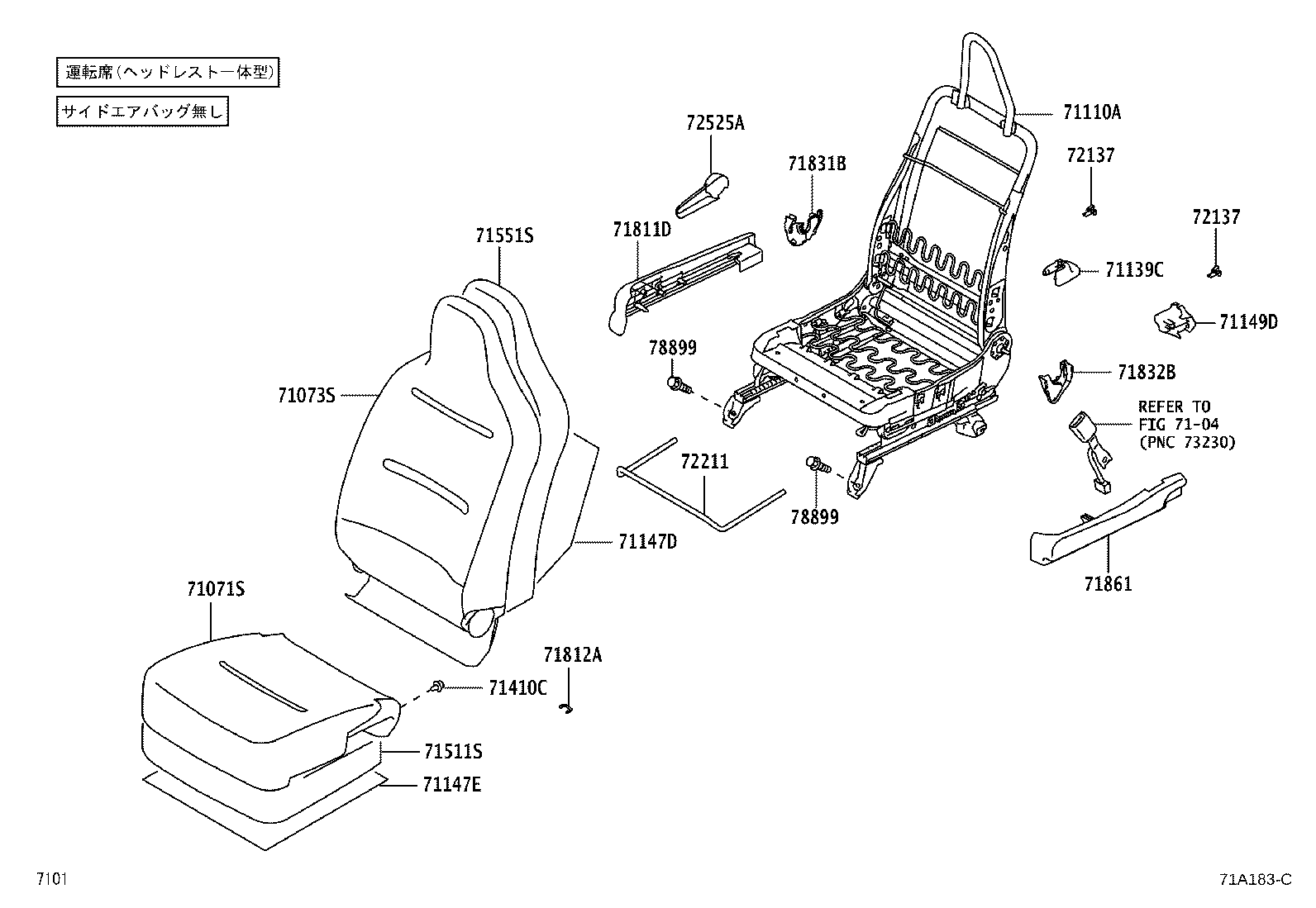

ILLUST NO. 1 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71071-B1380E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71071-B1280E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-B1690E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71073-B1A10E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1A20E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71073-B1700E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B1180 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71110-B1170 |
KGC3#,NGC30..G,X |
1 | ||
| 71110-B1180 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71139C - COVER, FRONT SEAT LEG, RH | ||||
| 71139-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1140 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1140 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71147-B1020 |
KGC3#,NGC30..G,X |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71831-B1060B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71501-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B1260 |
KGC3#,NGC30..G,X |
1 | ||
| 71505-B1270 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1270 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1290 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71505-B1280 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1080E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1020E0 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71811-B1090E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B1060B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
1 | ||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B1010E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71861-B1030E3 |
KGC3#..X 1.0X YURURI,LINEN BEIGE,TRIM4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
KGC3#..X 1.0X YURURI |
4 | ||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2040 |
KGC3#,NGC30 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Linked diagrams | ||||
| 7104 | ||||

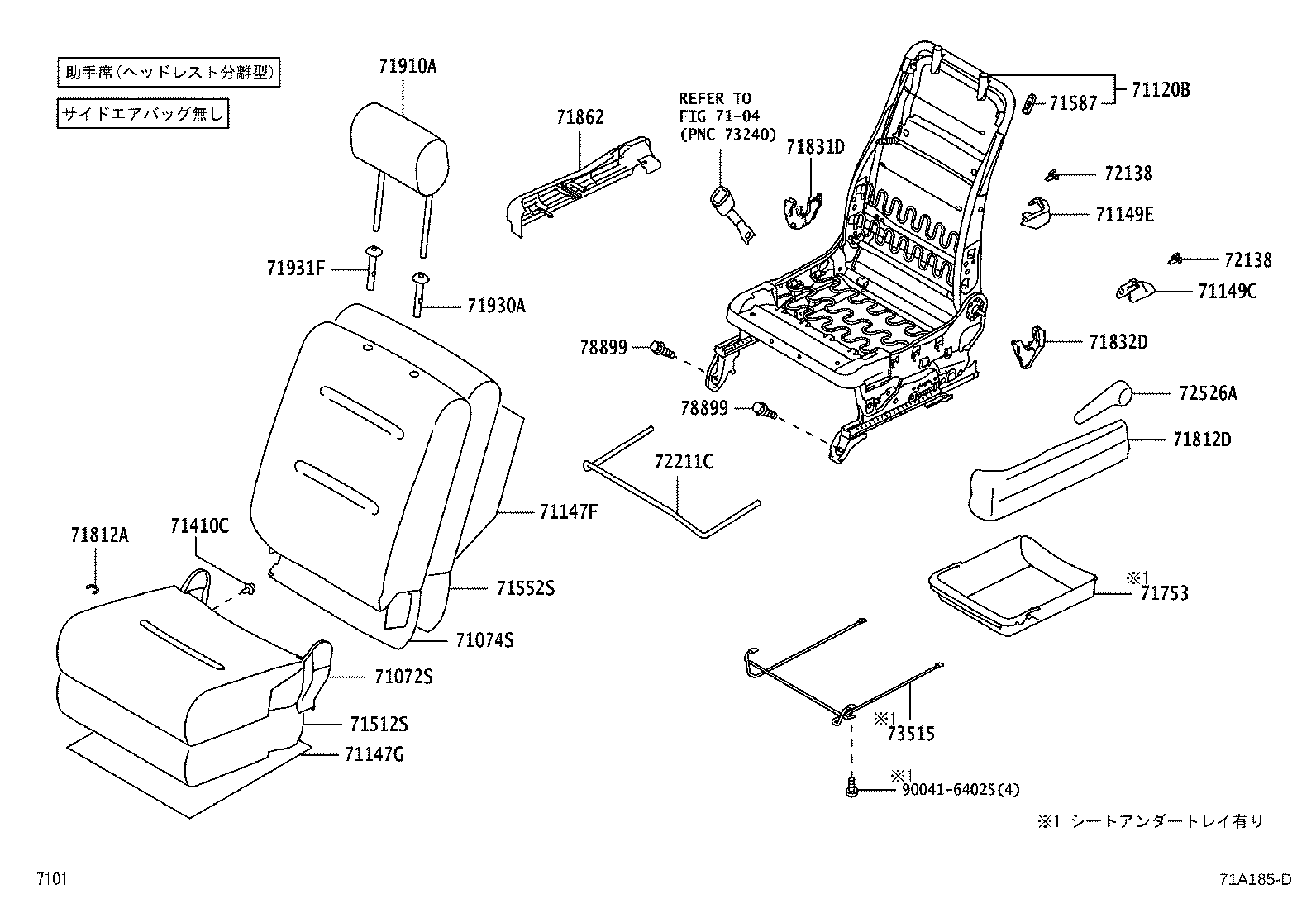

ILLUST NO. 2 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71072-B1270E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1820E1 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074-B1B30E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1B40E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1160 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71120-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71120-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
KGC3#,NGC30 |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71832-B1070B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1280 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1250 |
KGC3#,NGC30..G,X |
1 | ||
| 71506-B1270 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71506-B1260 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1260 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
KGC3#..X 1.0X YURURI |
4 | ||
| 71587-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71753-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 71753-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B1040E2 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1030E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1020E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
2 | ||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
2 | ||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI,GREGE,TRIM4# |
2 | ||
| 71931F - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI,GREGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2040 |
KGC3#,NGC30 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 73507-B2010 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 73507-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925 - COVER, SEAT AIR BAG NO.1, LH | ||||
| 73925-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 15549-B4010 | ||||
| 90041-64025 | ||||
| 90044-64752 | ||||
| 90044-80640 | ||||
| 93560-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
ILLUST NO. 2 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71072-B1270E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1820E1 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074-B1B30E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1B40E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1160 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71120-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71120-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
KGC3#,NGC30 |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71832-B1070B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1280 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1250 |
KGC3#,NGC30..G,X |
1 | ||
| 71506-B1270 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71506-B1260 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1260 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
KGC3#..X 1.0X YURURI |
4 | ||
| 71587-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71753-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 71753-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B1040E2 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1030E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1020E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
2 | ||
| 71910-B1310E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
2 | ||
| 71930A - SUPPORT ASSY, FRONT SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
2 | ||
| 71930-97202E3 |
KGC3#..X ﾛｯｸ付,1.0X YURURI,GREGE,TRIM4# |
2 | ||
| 71931F - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#..X 1.0X YURURI,GREGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2040 |
KGC3#,NGC30 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 73507-B2010 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 73507-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 90041-64025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71072-B1270E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1820E1 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074-B1B30E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1B40E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1160 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71120-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71120-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
KGC3#,NGC30 |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71832-B1070B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1280 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1250 |
KGC3#,NGC30..G,X |
1 | ||
| 71506-B1270 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71506-B1260 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1260 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-B1010 |
KGC3#..X 1.0X YURURI |
4 | ||
| 71587-B1010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71753-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 71753-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B1040E2 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1030E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1020E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2040 |
KGC3#,NGC30 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 73507-B2010 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 73507-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73920-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925 - COVER, SEAT AIR BAG NO.1, LH | ||||
| 73925-B1020 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925-B1020 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73925-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 15549-B4010 | ||||
| 90041-64025 | ||||
| 90044-64752 | ||||
| 90044-80640 | ||||
| 93560-55016 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
ILLUST NO. 2 OF 2(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71072-B1370E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71072-B1270E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B1820E1 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71074-B1B30E0 |
KGC3#..X 1.0X YURURI,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1830E1 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71074-B1B40E0 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,BEIGE,TRIM4# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B1160 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71120-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71120-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B1160 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71147-B1160 |
KGC3#,NGC30 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
KGC3#,NGC30 |
1 | ||
| 71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT) | ||||
| 71149-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71832-B1070B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 90044-68028B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
4 | ||
| 90044-68028B0 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE,DK.GRAY,TRIM4# |
2 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-B1180 |
KGC3#,NGC30..G,X |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71502-B1190 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B1280 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1250 |
KGC3#,NGC30..G,X |
1 | ||
| 71506-B1270 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71506-B1260 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71506-B1260 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 71753-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 71753-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
24 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
25 | ||
| 71812-87201 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&1.0X YURURI |
12 | ||
| 71812-87201 |
KGC3#..X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ&L PACKAGE |
12 | ||
| 71812-87201 |
KGC3#..X 1.0X YURURI |
25 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B1040E2 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1030E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 71812-B1040E2 |
KGC3#,NGC30..G,X SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2010B1 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B1020E2 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-97205 |
KGC3#,NGC30 |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2040 |
KGC3#,NGC30 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2010E3 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73507-B2010 |
KGC3#..X L PACKAGE |
1 | ||
| 73507-B2010 |
KGC3#..X L PACKAGE&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI |
1 | ||
| 73507-B2010 |
KGC3#,NGC30..G,HANA |
1 | ||
| 73507-B2010 |
KGC3#..X 1.0X YURURI&SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| 78899 - BOLT, FRONT SEAT | ||||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞA 助手席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 91673-10820 |
KGC3#,NGC30..G,X ｳｴﾙｷｬﾌﾞB B+ｼｰﾄｸﾚｰﾝ |
4 | ||
| 91673-10820 |
KGC3#,NGC30 |
8 | ||
| Common parts | ||||
| 90041-64025 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
