KGC35-AHECK (2010)
Toyota Passo
Production
Feb 2010
-
Jun 2012
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

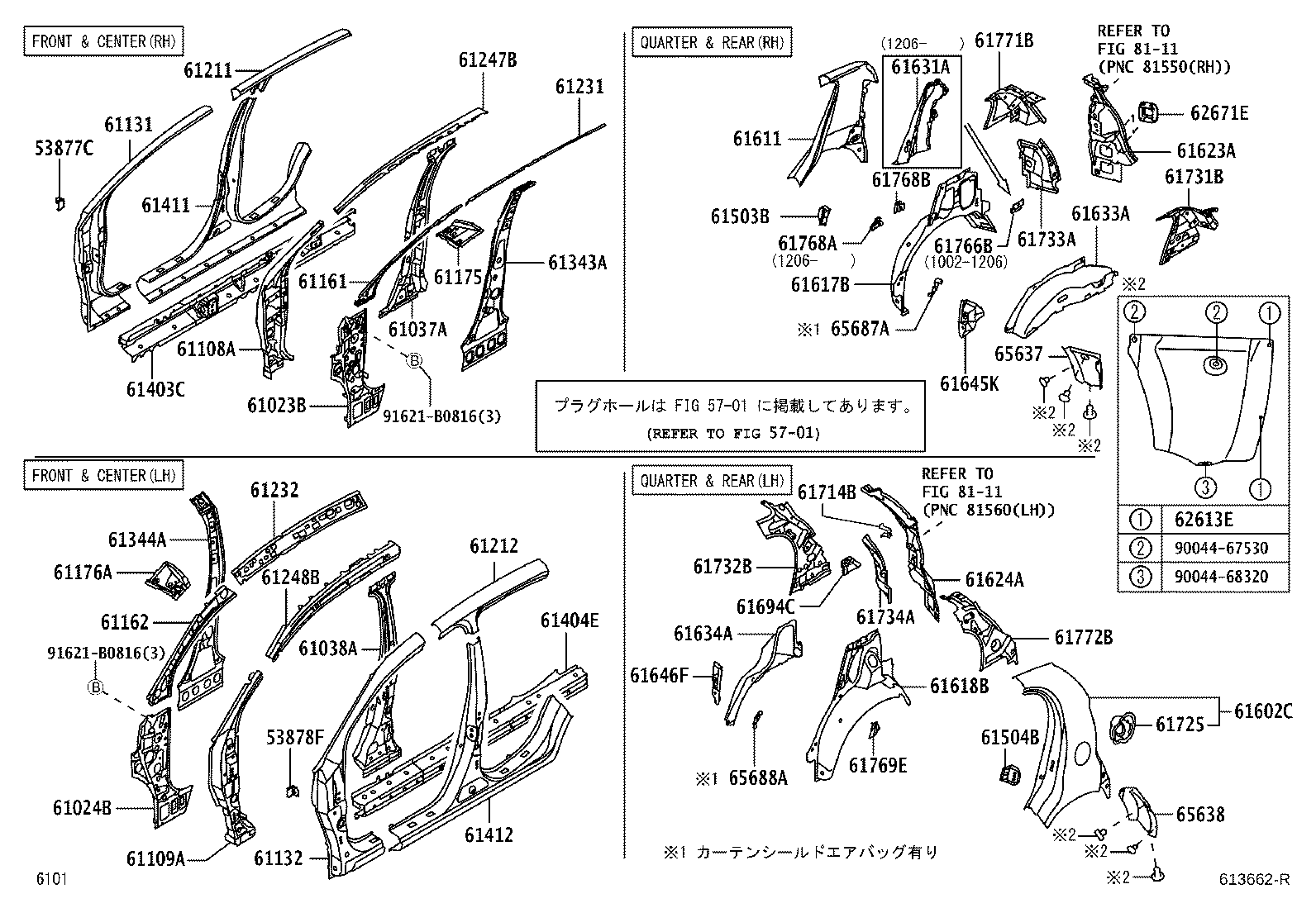

ILLUST NO. 1 OF 2(1002- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53877C - BRACKET, FRONT FENDER LINER, RH | ||||
| 53877-B1030 |
KGC3#,NGC30 |
1 | ||
| 53878F - BRACKET, FRONT FENDER LINER, LH | ||||
| 53877-B1030 |
KGC3#,NGC30 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-B1060 |
KGC3#,NGC30 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-B1070 |
KGC3#,NGC30 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-B1060 |
KGC3#,NGC30 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-B1060 |
KGC3#,NGC30 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-B1040 |
KGC3#,NGC30 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-B1040 |
KGC3#,NGC30 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-B1140 |
KGC35 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-B1140 |
KGC35 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-B1070 |
KGC3#,NGC30 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-B1070 |
KGC3#,NGC30 |
1 | ||
| 61175 - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH | ||||
| 61175-B1040 |
KGC3#,NGC30 |
1 | ||
| 61176A - REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH | ||||
| 61176-B1040 |
KGC3#,NGC30 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-B1110 |
KGC35 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-B1110 |
KGC35 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-B1090 |
KGC3#,NGC30 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-B1100 |
KGC3#,NGC30 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-B1040 |
KGC3#,NGC30 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-B1040 |
KGC3#,NGC30 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-B1050 |
KGC3#,NGC30 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61308-B1050 |
KGC3#,NGC30 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-B1040 |
KGC3#,NGC30 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-B1040 |
KGC3#,NGC30 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-B1140 |
KGC35 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-B1140 |
KGC35 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-B1040 |
KGC3#,NGC30 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-B1040 |
KGC3#,NGC30 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61612-B1110 |
KGC35 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-B1110 |
KGC35 |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-B1060 |
KGC35 |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-B1060 |
KGC35 |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61031-B1050 |
KGC3#,NGC30 ﾘﾔｺﾝﾋﾞ取付け用穴有り |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61032-B1050 |
KGC3#,NGC30 ﾘﾔｺﾝﾋﾞ取付け用穴有り |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-B1011 |
KGC3#,NGC30 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-B1011 |
KGC3#,NGC30 |
1 | ||
| 61645K - GUSSET, QUARTER WHEEL HOUSE INNER, RH | ||||
| 61645-B1040 |
KGC3#,NGC30 |
1 | ||
| 61646F - GUSSET, QUARTER WHEEL HOUSE INNER, LH | ||||
| 61646-B1040 |
KGC3#,NGC30 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-B1010 |
KGC3#,NGC30 |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-B1020 |
KGC3#,NGC30 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-B1040 |
KGC3#,NGC30 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-B1080 |
KGC3#,NGC30 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-B1080 |
KGC3#,NGC30 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-B1020 |
KGC3#,NGC30 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-B1020 |
KGC3#,NGC30 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-B1010 |
KGC3#,NGC30 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61767-B1040 |
KGC3#,NGC30 |
1 | ||
| 61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH | ||||
| 61769-B1050 |
KGC3#,NGC30 |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-B1060 |
KGC3#,NGC30 |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-B1050 |
KGC3#,NGC30 |
1 | ||
| 62613E - CLIP (FOR QUARTER WHEEL HOUSE COVER) | ||||
| 90044-67555 |
KGC3#,NGC30 |
4 | ||
| 62671E - COVER, LOWER BACK PANEL | ||||
| 62671-87202 |
KGC3#,NGC30 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-B1090 |
KGC3#,NGC30 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-B1090 |
KGC3#,NGC30 |
1 | ||
| 65687A - BRACKET, WHEEL HOUSE BRACE, RH | ||||
| 65687-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 65688A - BRACKET, WHEEL HOUSE BRACE, LH | ||||
| 65688-B1020 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| Common parts | ||||
| 90044-67530 | ||||
| 90044-68320 | ||||
| 91621-B0816 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 8111 | ||||
ILLUST NO. 2 OF 2(1002- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
