KGC35-AHECK (2010)
Toyota Passo

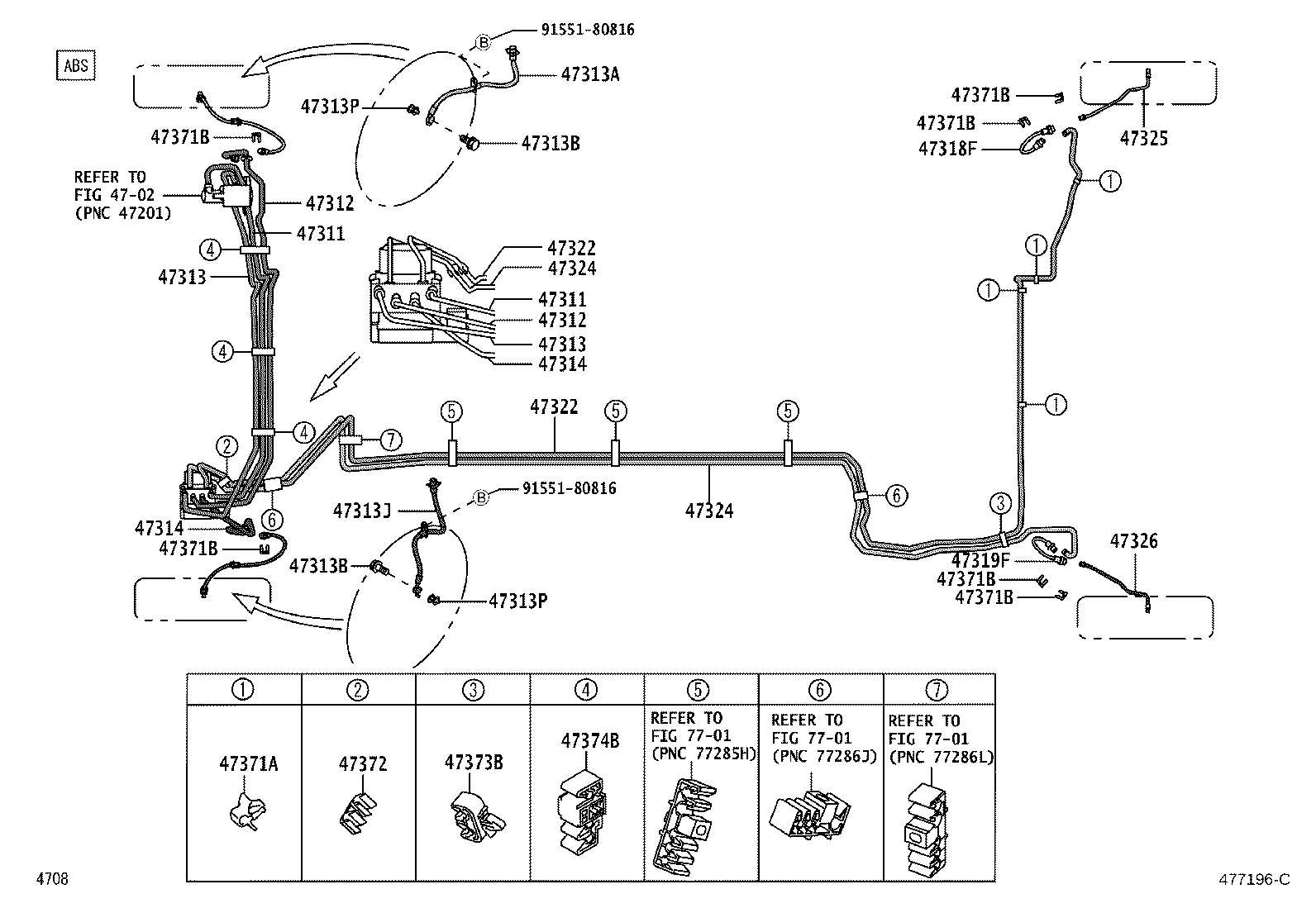

ILLUST NO. 1 OF 2(1002-1404)
ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1190 |
KGC3#,NGC30 |
1 | ||
| 47311-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1190 |
KGC3#,NGC30 |
1 | ||
| 47311-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1100 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312-B1120 |
KGC3#,NGC30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1100 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312-B1120 |
KGC3#,NGC30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1190 |
KGC3#,NGC30 |
1 | ||
| 47313-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1190 |
KGC3#,NGC30 |
1 | ||
| 47313-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22298 |
KGC35..X;KGC30,NGC30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGC3#,NGC30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGC3#,NGC30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90049-22299 |
KGC35..X;KGC30,NGC30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KGC3#,NGC30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KGC3#,NGC30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1070 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47314-B1010 |
KGC3#,NGC30 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1070 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47314-B1010 |
KGC3#,NGC30 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90049-22186 |
KGC35 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90049-22186 |
KGC35 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47322-B1020 |
KGC35 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47322-B1020 |
KGC35 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1020 |
KGC35 |
1 | ||
| 47324-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1020 |
KGC35 |
1 | ||
| 47324-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B1070 |
KGC35 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B1070 |
KGC35 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64659 |
KGC3#,NGC30 |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64731 |
KGC3#,NGC30 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64780 |
KGC3#,NGC30 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90044-64781 |
KGC3#,NGC30 |
3 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

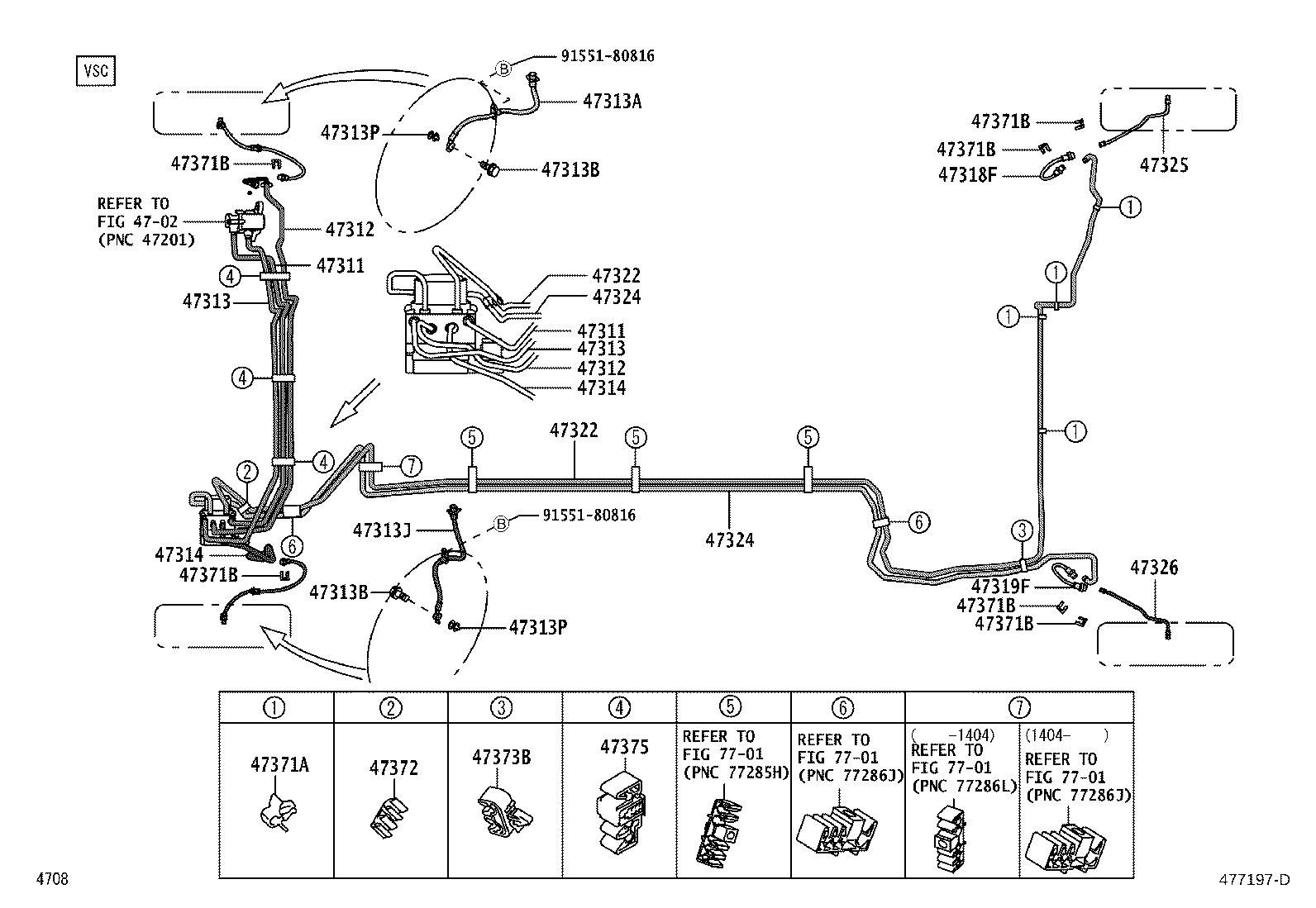

ILLUST NO. 1 OF 2(1002- )
VSC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1190 |
KGC3#,NGC30 |
1 | ||
| 47311-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1190 |
KGC3#,NGC30 |
1 | ||
| 47311-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1100 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312-B1120 |
KGC3#,NGC30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1100 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47312-B1120 |
KGC3#,NGC30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1190 |
KGC3#,NGC30 |
1 | ||
| 47313-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1190 |
KGC3#,NGC30 |
1 | ||
| 47313-B1170 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22298 |
KGC35..X;KGC30,NGC30 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGC3#,NGC30 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
KGC3#,NGC30 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90049-22299 |
KGC35..X;KGC30,NGC30 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KGC3#,NGC30 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
KGC3#,NGC30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1070 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47314-B1010 |
KGC3#,NGC30 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1070 |
KGC3#,NGC30 有り(VSC) |
1 | ||
| 47314-B1010 |
KGC3#,NGC30 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90049-22186 |
KGC35 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90049-22186 |
KGC35 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47322-B1020 |
KGC35 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47322-B1020 |
KGC35 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1020 |
KGC35 |
1 | ||
| 47324-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1020 |
KGC35 |
1 | ||
| 47324-B1160 |
KGC35 有り(VSC) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B1070 |
KGC35 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B1070 |
KGC35 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64659 |
KGC3#,NGC30 |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-65441 |
KGC3#,NGC30 |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64731 |
KGC3#,NGC30 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64780 |
KGC3#,NGC30 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-64807 |
KGC3#,NGC30 有り(VSC) |
3 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

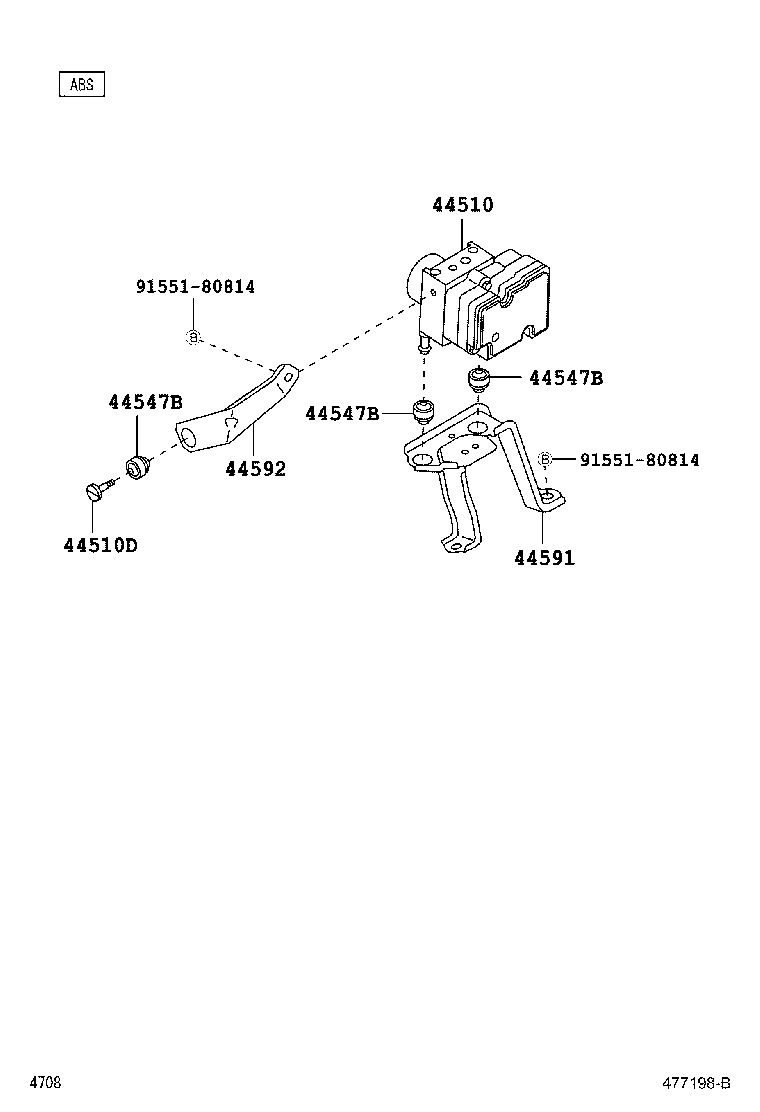

ILLUST NO. 2 OF 2(1002-1404)
ABS ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B1200 |
KGC35 |
1 | ||
| 44050-B1220 |
KGC35..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44050-B1220 |
KGC35..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44510D - BOLT(FOR BRAKE ACTUATOR) | ||||
| 44548-97201 |
KGC3#,NGC30 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-B1090 |
KGC3#,NGC30..G,HANA 有り(VSC) |
1 | ||
| 44591-B1090 |
KGC3#..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44591-B1090 |
KGC3#..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44591-B1070 |
KGC3#,NGC30 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-B1100 |
KGC3#,NGC30..G,HANA 有り(VSC) |
1 | ||
| 44591-B1100 |
KGC3#..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44591-B1100 |
KGC3#..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44591-B1080 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 91551-80814 | ||||

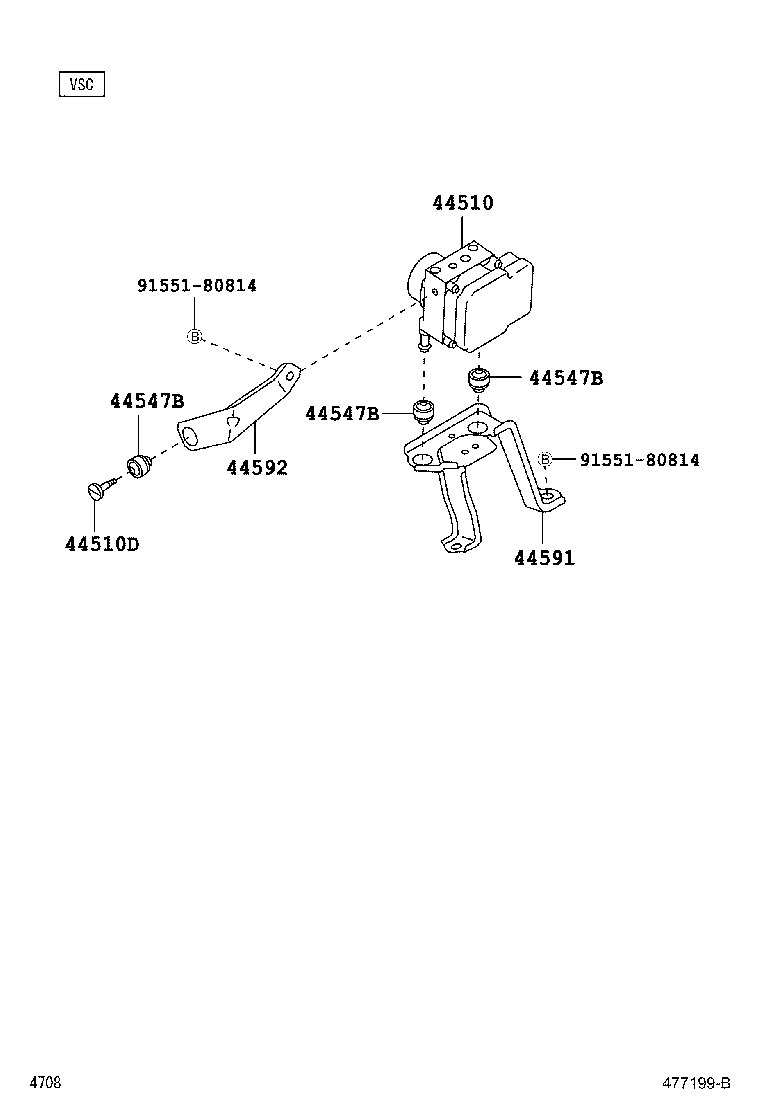

ILLUST NO. 2 OF 2(1002- )
VSC ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B1200 |
KGC35 |
1 | ||
| 44050-B1220 |
KGC35..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44050-B1220 |
KGC35..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44510D - BOLT(FOR BRAKE ACTUATOR) | ||||
| 44548-97201 |
KGC3#,NGC30 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-87101 |
KGC3#,NGC30 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-B1090 |
KGC3#,NGC30..G,HANA 有り(VSC) |
1 | ||
| 44591-B1090 |
KGC3#..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44591-B1090 |
KGC3#..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44591-B1070 |
KGC3#,NGC30 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-B1100 |
KGC3#,NGC30..G,HANA 有り(VSC) |
1 | ||
| 44591-B1100 |
KGC3#..X 有り(VSC)&165/70R14 5J−ST |
1 | ||
| 44591-B1100 |
KGC3#..X 有り(VSC)&165/70R14 5J−AL |
1 | ||
| 44591-B1080 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 91551-80814 | ||||
