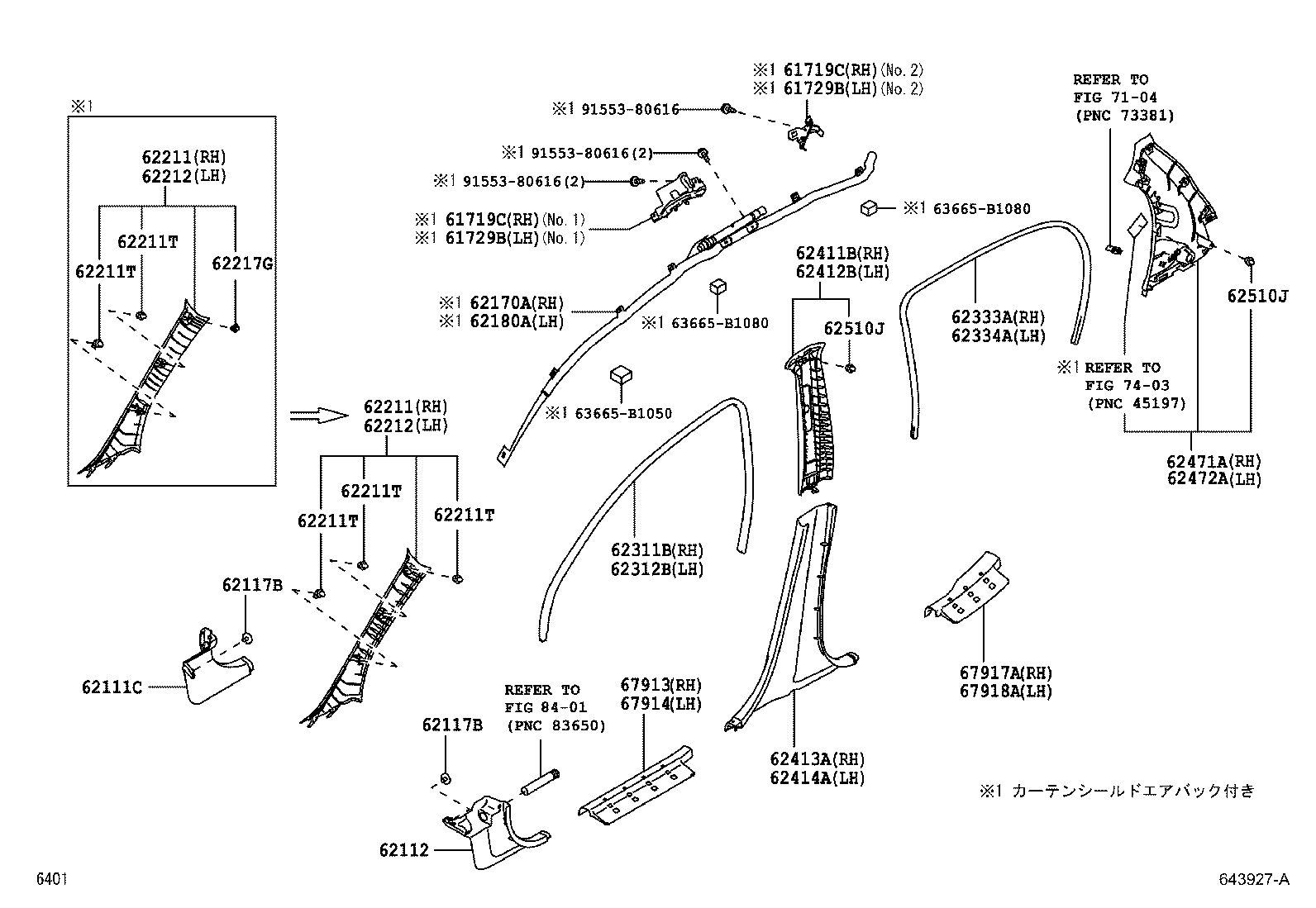

KGC30-AHEBK (2010)
Toyota Passo
(1002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-B1060 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.2 |
1 | ||
| 61707-B1030 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1 |
1 | ||
| 61719C - BRACKET, ROOF SIDE RAIL, RH | ||||
| 61719-B1060 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.2 |
1 | ||
| 61707-B1030 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1 |
1 | ||
| 61729B - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-B1060 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.2 |
1 | ||
| 61708-B1030 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1 |
1 | ||
| 61729B - BRACKET, ROOF SIDE RAIL, LH | ||||
| 61729-B1060 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.2 |
1 | ||
| 61708-B1030 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,NO.1 |
1 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-B1060E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 62111-B1060E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-B1060E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 62112-B1060E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-67397 |
KGC3#,NGC30 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-67397 |
KGC3#,NGC30 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-B1040 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-B1040 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-B1100E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62211-B1090E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-B1090E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62211-B1100E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90044-68346 |
KGC3#,NGC30 |
6 | ||
| 90044-68346 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90044-68346 |
KGC3#,NGC30 |
6 | ||
| 90044-68346 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90044-68346 |
KGC3#,NGC30 |
6 | ||
| 90044-68346 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90044-68346 |
KGC3#,NGC30 |
6 | ||
| 90044-68346 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90044-68346 |
KGC3#,NGC30 |
6 | ||
| 90044-68346 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-B1100E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62212-B1110E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-B1100E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62212-B1110E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-20010 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-B1050 |
KGC3#,NGC30 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-B1030 |
KGC3#,NGC30 |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-B1040 |
KGC3#,NGC30 |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-B1050 |
KGC3#,NGC30 |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-B1060E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-B1060E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-B1040E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 62413-B1040E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-B1040E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 62414-B1040E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-B1160E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62471-B1180E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-B1160E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 62472-B1180E0 |
KGC3#,NGC30 SRSｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ,LINEN BEIGE,TRIM4# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-B2010 |
KGC3#,NGC30 |
10 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-B2010 |
KGC3#,NGC30 |
10 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-B1040E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 67913-B1040E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-B1030E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 67914-B1030E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-B1040E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 67917-B1040E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-B1040E0 |
KGC3#,NGC30..G,X LINEN BEIGE,TRIM4# |
1 | ||
| 67918-B1040E1 |
KGC3#,NGC30..HANA EBONY BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 63665-B1050 | ||||
| 63665-B1080 | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8401 | ||||
