KGC30-AHEBK (2010)

Toyota Passo

Production Feb 2010 - Jun 2012
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

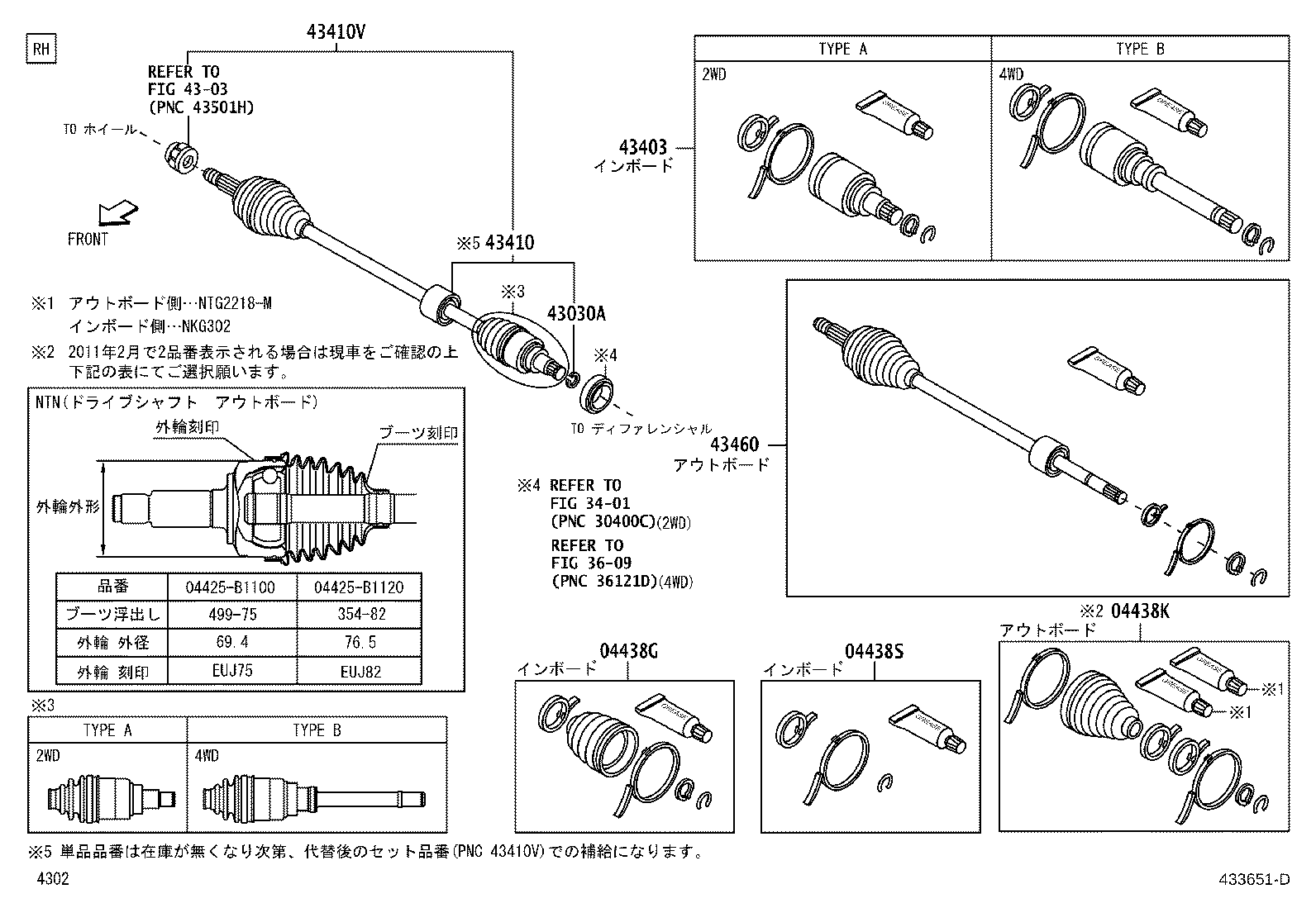

(1002- )

Click highlighted areas on diagram

RH 2WD 4WD

diagram 04438G 04438K 04438S 3401 3609 4303 43030A 43403 43410 43410V 43460
Part # Description Qty Price
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-B2020

KGC30

NTN

 1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04425-B1100

KGC3#

NTN:ｲﾗｽﾄ参照

 1
04425-B1120

KGC3#

NTN:ｲﾗｽﾄ参照

 1
04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH
04435-B2020

KGC3#

NTN

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20298

KGC3#

NTN

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43408-B9350

KGC30

NTN,TYPE A

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-B1110

KGC30

ﾀｲﾌﾟ A

 1
43410-B1111

KGC30

ﾀｲﾌﾟ A

 1
43410V - SHAFT SET, FRONT DRIVE, RH
43410-B9580

KGC30

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43411-B9290

KGC30

 1
43411-B9291

KGC30

 1
Linked diagrams
3401
3609
4303

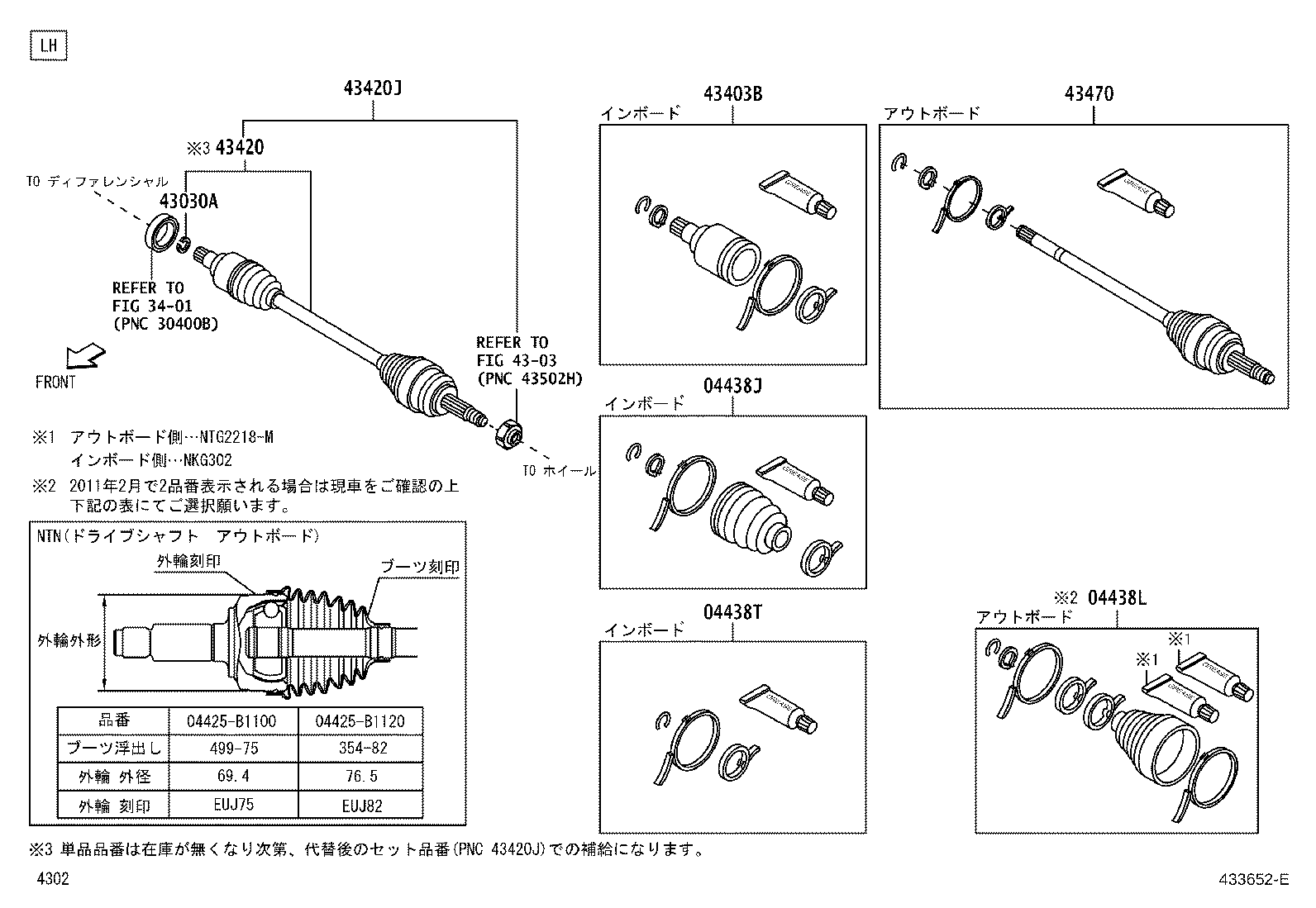

(1002- )

Click highlighted areas on diagram

LH 2WD 4WD

diagram 04438J 04438L 04438T 3401 4303 43030A 43403B 43420 43420J 43470
Part # Description Qty Price
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-B2020

KGC3#

NTN

 1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04425-B1100

KGC3#

NTN:ｲﾗｽﾄ参照

 1
04425-B1120

KGC3#

NTN:ｲﾗｽﾄ参照

 1
04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH
04435-B2020

KGC3#

NTN

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20298

KGC3#

NTN

 2
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43408-B9350

KGC3#

NTN

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-B1050

KGC3#

 1
43420-B1051

KGC3#

 1
43420J - SHAFT SET, FRONT DRIVE, LH
43420-B9560

KGC3#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43412-B9150

KGC3#

 1
43412-B9151

KGC3#

 1
Linked diagrams
3401
4303
