KGC30-AHEBK (2014)
Toyota Passo
Production
Apr 2014
-
Apr 2016
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1404- )1KRFE

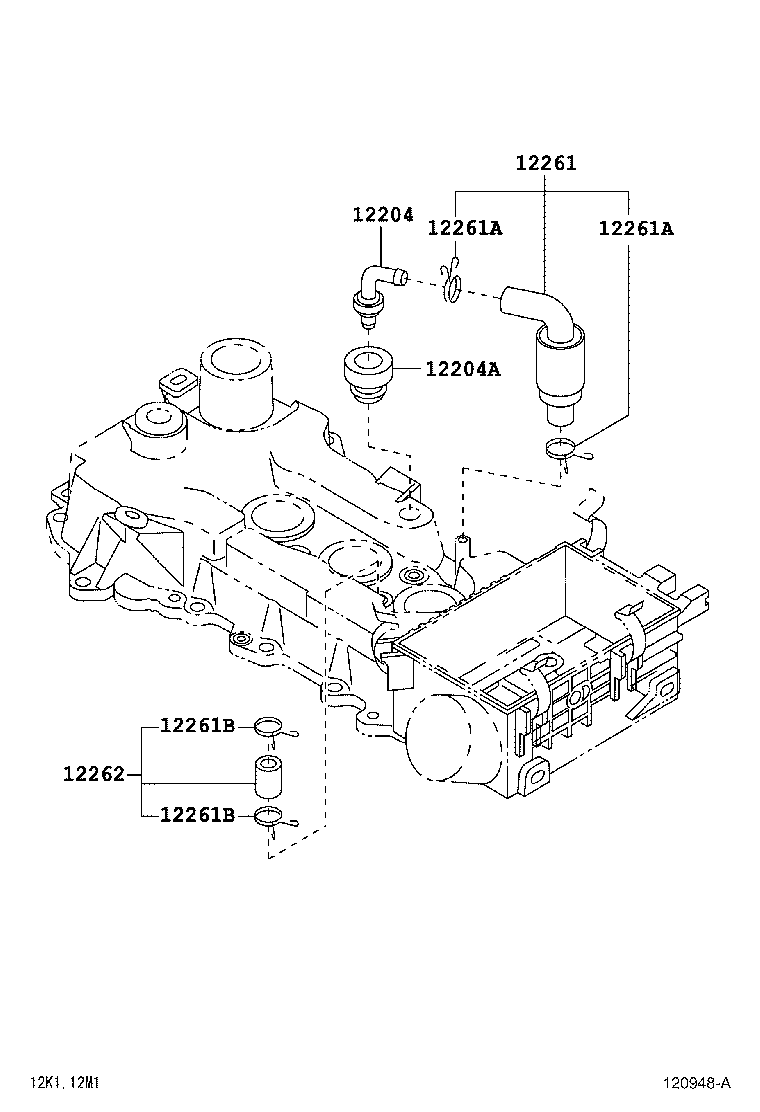

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-40040 |
1KRFE..KGC3# |
1 | ||
| 12204-40030 |
1KRFE..KGC3# |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18014 |
1KRFE..KGC3# |
1 | ||
| 90480-18016 |
1KRFE..KGC3# |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-40020 |
1KRFE..KGC3# |
1 | ||
| 12261-40051 |
1KRFE..KGC3# |
1 | ||
| 12261-40050 |
1KRFE..KGC3# |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..KGC3# |
1 | ||
| 90467-15120 |
1KRFE..KGC3# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..KGC3# |
1 | ||
| 90467-15120 |
1KRFE..KGC3# |
2 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 96137-52501 |
1KRFE..KGC3# |
1 | ||
| 90467-21004 |
1KRFE..KGC3# |
2 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 96137-52501 |
1KRFE..KGC3# |
1 | ||
| 90467-21004 |
1KRFE..KGC3# |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-40020 |
1KRFE..KGC3# |
1 | ||
| 12260-40010 |
1KRFE..KGC3# |
1 | ||
