KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)KGC3#

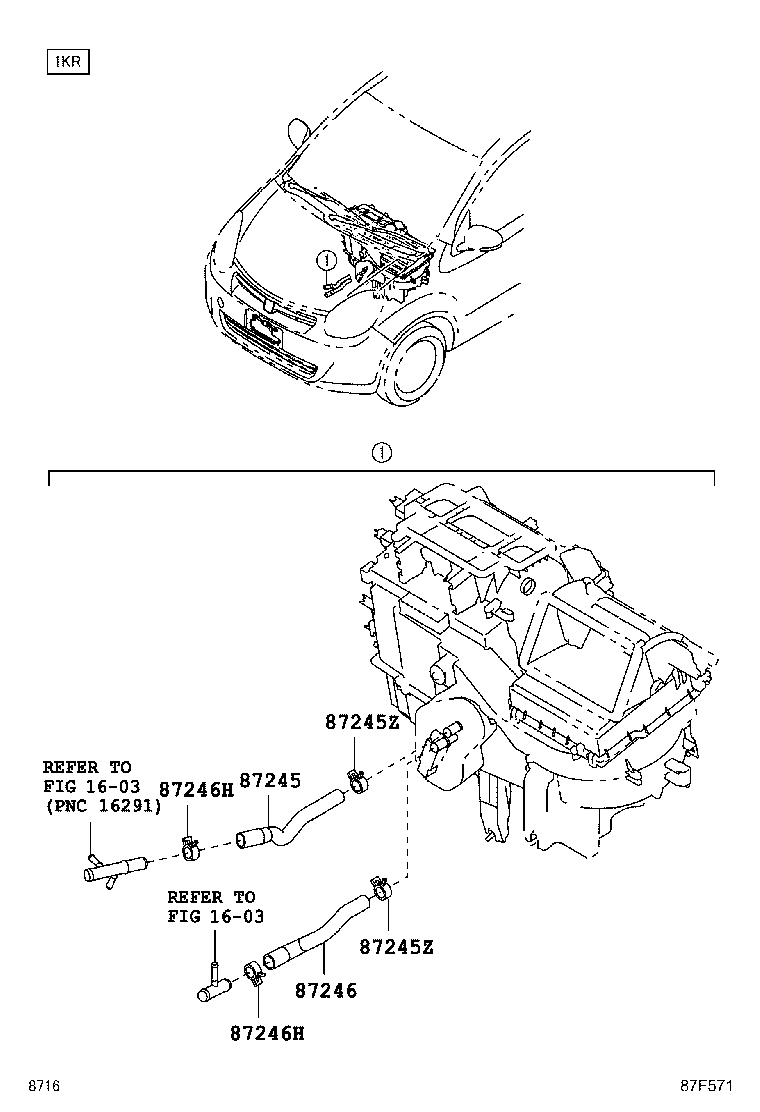

Click highlighted areas on diagram
1KR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 87245-B1050 |
KGC3# |
1 | ||
| 87245-B1050 |
KGC3# |
1 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 88718-97209 |
KGC3# |
2 | ||
| 88718-97209 |
KGC3# |
2 | ||
| 87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE) | ||||
| 88718-97209 |
KGC3# |
2 | ||
| 88718-97209 |
KGC3# |
2 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87246-B1090 |
KGC3# |
1 | ||
| 87246-B1090 |
KGC3# |
1 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
KGC3# |
2 | ||
| 96136-42501 |
KGC3# |
2 | ||
| 87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
KGC3# |
2 | ||
| 96136-42501 |
KGC3# |
2 | ||
| Linked diagrams | ||||
| 1603 | ||||
