Toyota Passo KGC30 CENTER STOP LAMP

Home Blog About Contact Search

KGC30-AHEBK (2012)

Toyota Passo

Production Jun 2012 - Apr 2014

Engine 1KRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

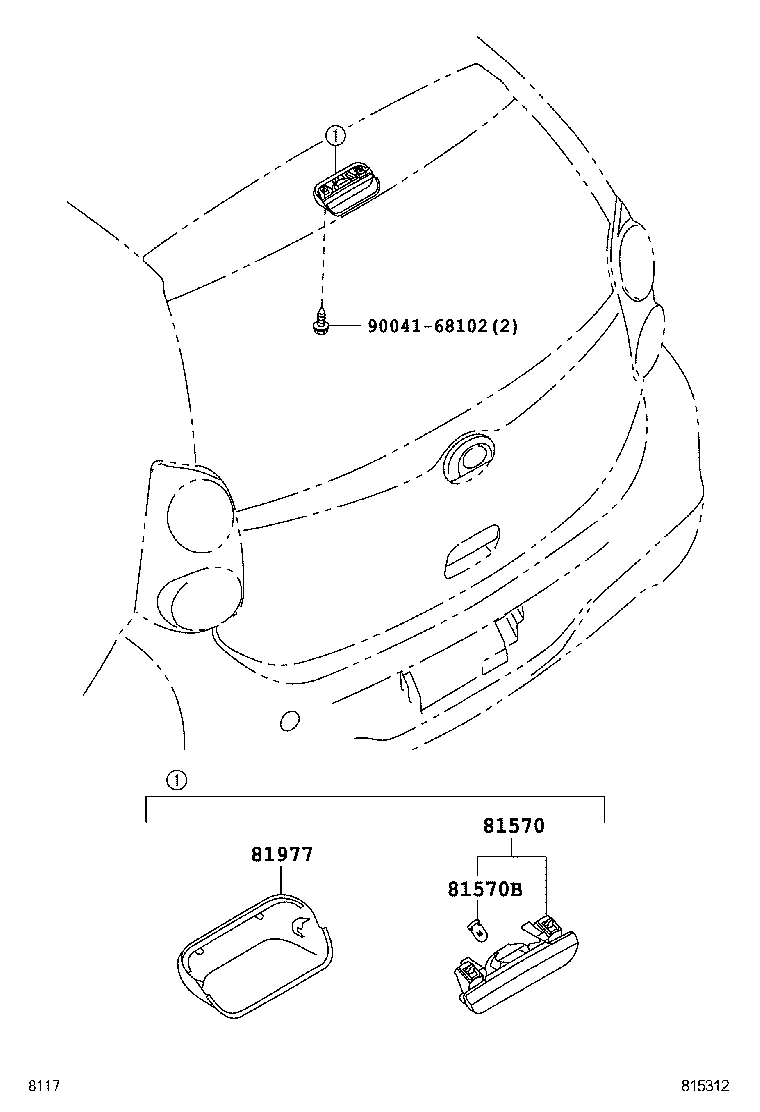

Click highlighted areas on diagram

Part #	Description	Period	Qty
81570 - LAMP ASSY, CENTER STOP
81570-B1100	KGC3#,NGC30	06/2012 - 04/2014	1
81570-B1100	KGC3#,NGC30	02/2010 - 06/2012	1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059	KGC3#,NGC30 12V 16W	02/2010 - 06/2012	1
90981-11059	KGC3#,NGC30 12V 16W	06/2012 - 04/2014	1
81977 - COVER, CENTER STOP LAMP
81977-B1060	KGC3#,NGC30	06/2012 - 04/2014	1
81977-B1060	KGC3#,NGC30	02/2010 - 06/2012	1
Common parts
90041-68102
