KGC30-AHEBK (2012)
Toyota Passo
(1002-1404)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

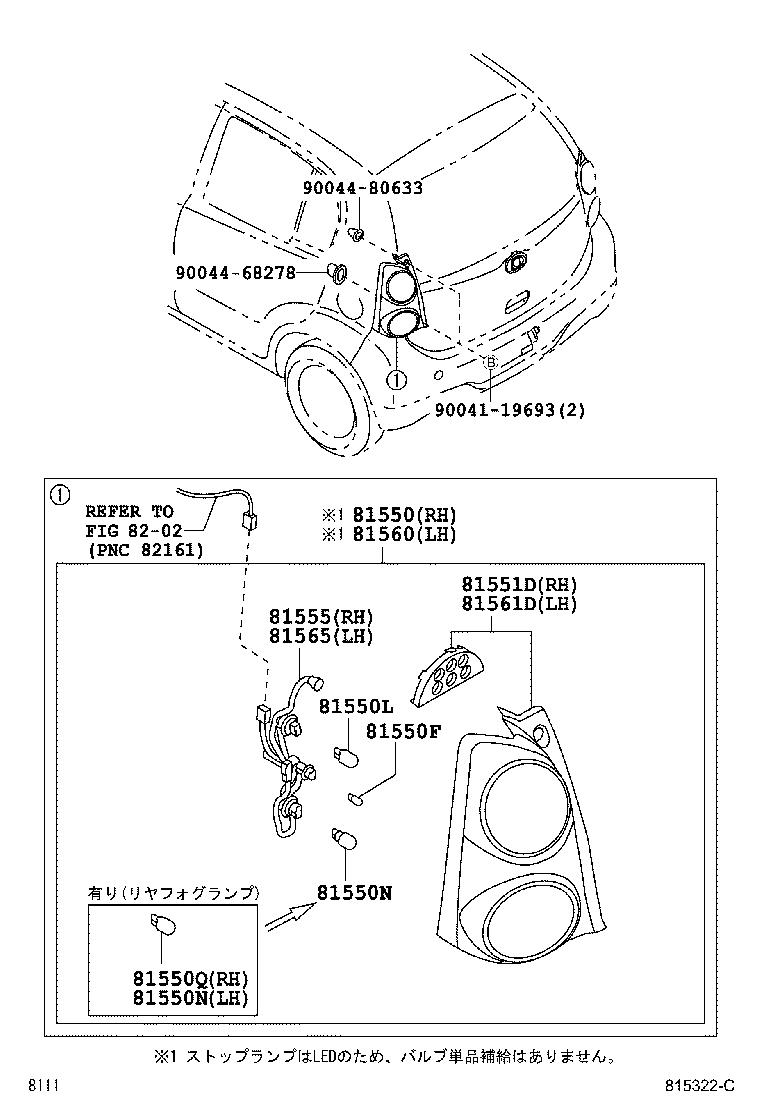

| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-B1160 |
KGC3#,NGC30..G,X 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 81550-B1210 |
KGC3#,NGC30..HANA 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 81550-B1200 |
KGC3#,NGC30..HANA |
1 | ||
| 81550-B1210 |
KGC3#,NGC30..HANA 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550-B1160 |
KGC3#,NGC30..G,X 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550-B1200 |
KGC3#,NGC30..HANA |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11013 |
KGC3#,NGC30 |
2 | ||
| 90981-11013 |
KGC3#,NGC30 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90049-51179 |
KGC3#,NGC30 |
2 | ||
| 90049-51179 |
KGC3#,NGC30 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KGC3#,NGC30 |
2 | ||
| 90981-11059 |
KGC3#,NGC30 |
2 | ||
| 90981-11059 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 90981-11059 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
KGC3#,NGC30 |
2 | ||
| 90981-11059 |
KGC3#,NGC30 |
2 | ||
| 90981-11059 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 90981-11059 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90049-51131 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 90049-51131 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-B1080 |
KGC3#,NGC30..G,X 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81551-B1080 |
KGC3#,NGC30..G,X 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81551-B1100 |
KGC3#,NGC30..HANA 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81551-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 81551-B1090 |
KGC3#,NGC30..HANA |
1 | ||
| 81551-B1090 |
KGC3#,NGC30..HANA |
1 | ||
| 81551-B1100 |
KGC3#,NGC30..HANA 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81551-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-B1080 |
KGC3#,NGC30 |
1 | ||
| 81555-B1080 |
KGC3#,NGC30 |
1 | ||
| 81555-B1090 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81555-B1090 |
KGC3#,NGC30 有り−ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-B1200 |
KGC3#,NGC30..HANA |
1 | ||
| 81560-B1200 |
KGC3#,NGC30..HANA |
1 | ||
| 81560-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 81560-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-B1070 |
KGC3#,NGC30..HANA |
1 | ||
| 81561-B1060 |
KGC3#,NGC30..G,X |
1 | ||
| 81561-B1070 |
KGC3#,NGC30..HANA |
1 | ||
| 81561-B1060 |
KGC3#,NGC30..G,X |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-B1080 |
KGC3#,NGC30 |
1 | ||
| 81555-B1080 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 90041-19693 | ||||
| 90044-68278 | ||||
| 90044-80633 | ||||
| Linked diagrams | ||||
| 8202 | ||||
