KGC30-AHEBK (2012)

Toyota Passo

Production Jun 2012 - Apr 2014
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

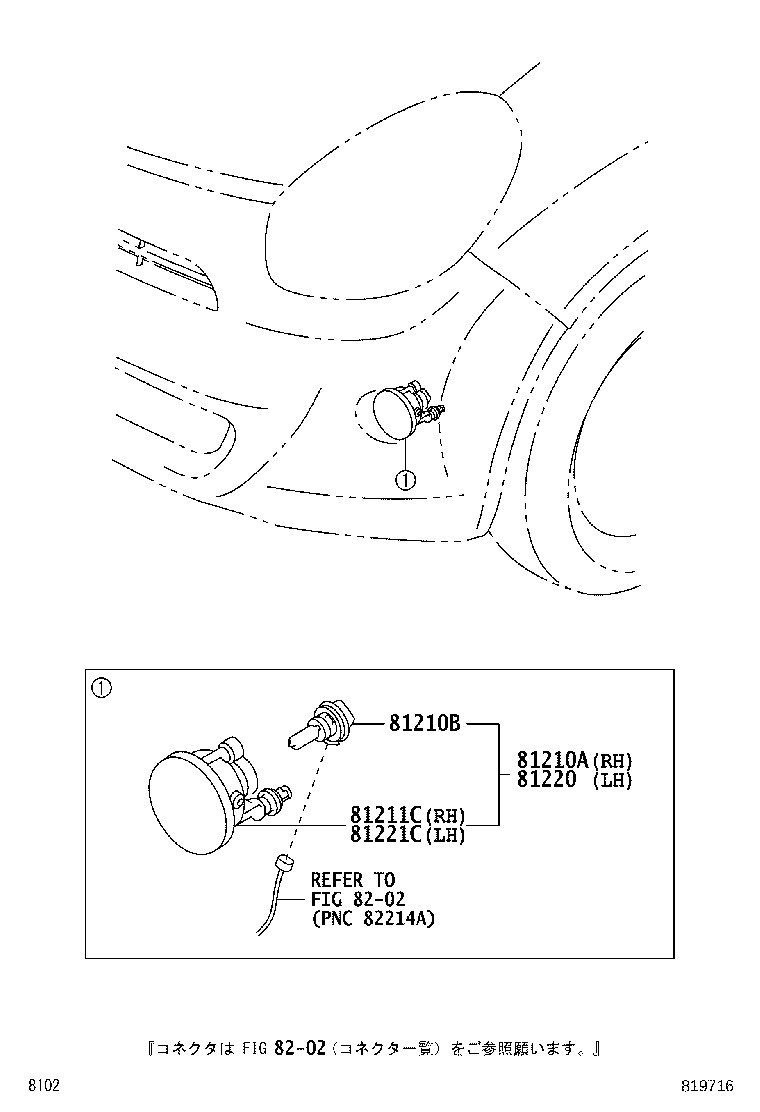

(1002-1404)G,X

Click highlighted areas on diagram

diagram 81210A 81210B 81220 8202 8202
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-B2420

KGC3#,NGC30..HANA

 1
81210-B1040

KGC3#,NGC30..G,X

D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 1
81210-97229

KGC3#,NGC30..HANA

 1
81210B - BULB, FOG LAMP
90049-51154

KGC3#,NGC30..G,X

12V 35W H8,D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 2
90049-51154

KGC3#,NGC30..G,X

12V 35W H8,D−OPT(35W)

 2
90049-51171

KGC3#,NGC30..HANA

12V 35W H8

 2
90049-51154

KGC3#,NGC30..HANA

12V 35W H8

 2
81220 - LAMP ASSY, FOG, LH
81210-B2420

KGC3#,NGC30..HANA

 1
81220-B1040

KGC3#,NGC30..G,X

D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 1
81220-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-97229

KGC3#,NGC30..HANA

 1
Linked diagrams
8202

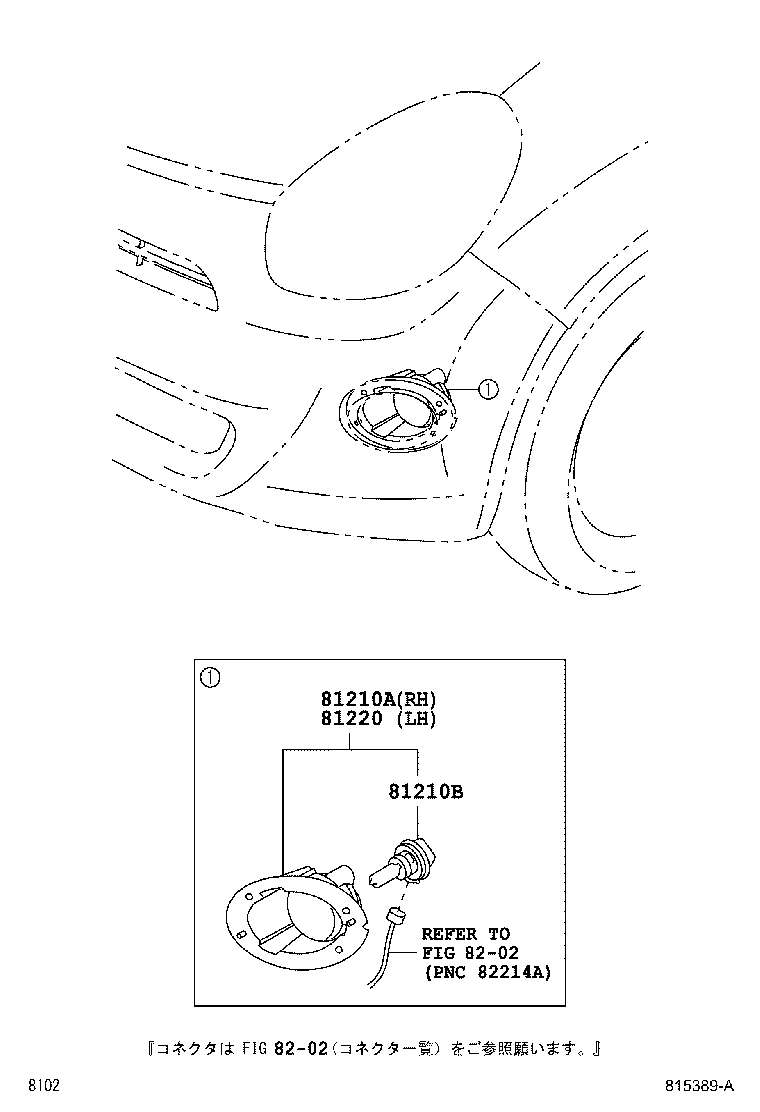

(1206-1404)HANA

Click highlighted areas on diagram

diagram 81210A 81210B 81211C 81220 81221C 8202 8202
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-B2420

KGC3#,NGC30..HANA

 1
81210-B1040

KGC3#,NGC30..G,X

D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 1
81210-97229

KGC3#,NGC30..HANA

 1
81210B - BULB, FOG LAMP
90049-51154

KGC3#,NGC30..G,X

12V 35W H8,D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 2
90049-51154

KGC3#,NGC30..G,X

12V 35W H8,D−OPT(35W)

 2
90049-51171

KGC3#,NGC30..HANA

12V 35W H8

 2
90049-51154

KGC3#,NGC30..HANA

12V 35W H8

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-B2050

KGC3#,NGC30..HANA

 1
81220 - LAMP ASSY, FOG, LH
81210-B2420

KGC3#,NGC30..HANA

 1
81220-B1040

KGC3#,NGC30..G,X

D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ)

 1
81220-B1040

KGC3#,NGC30..G,X

D−OPT(35W)

 1
81210-97229

KGC3#,NGC30..HANA

 1
81221C - LAMP UNIT, FOG LAMP, LH
81211-B2050

KGC3#,NGC30..HANA

 1
Linked diagrams
8202
