KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

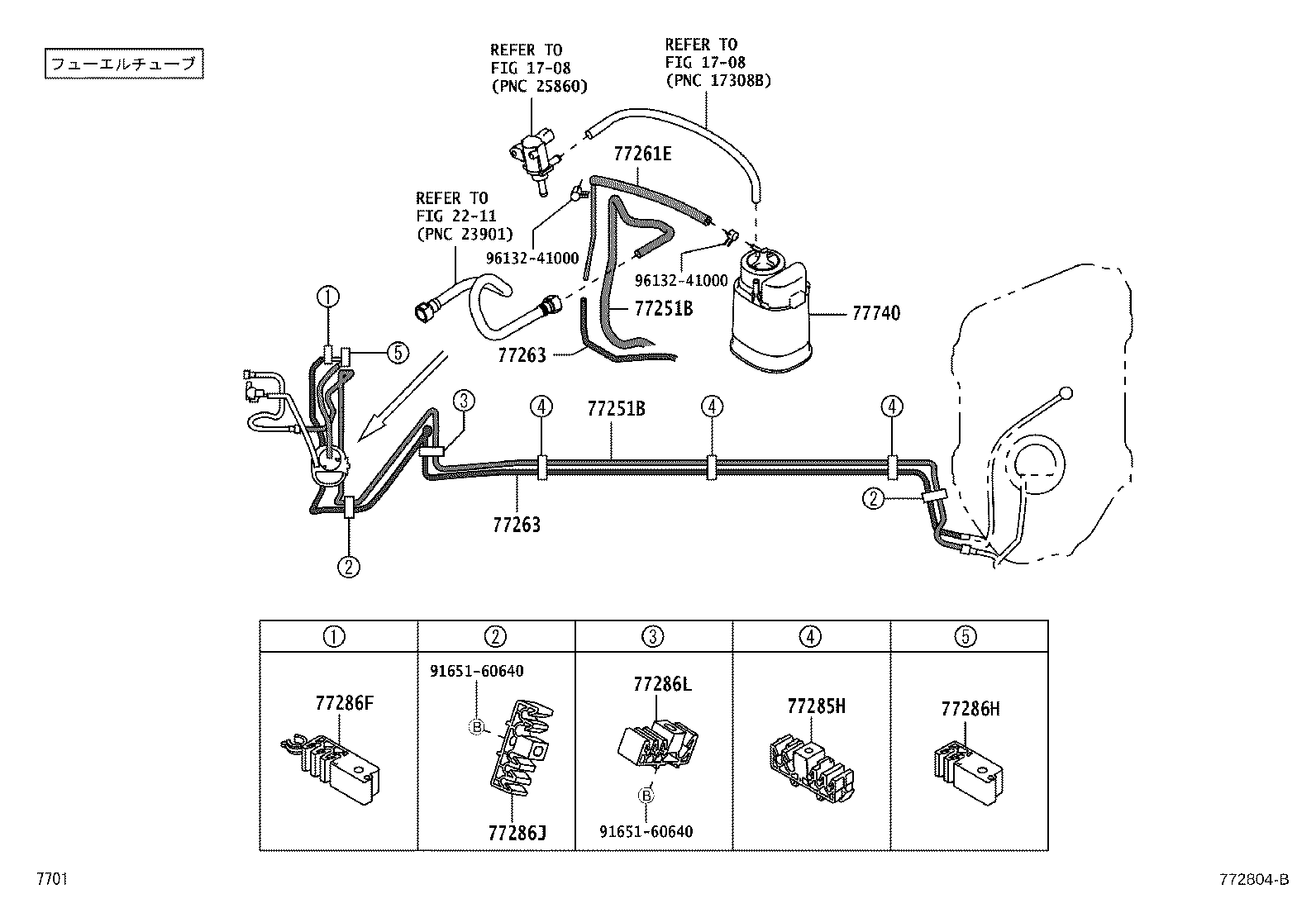

ILLUST NO. 2 OF 3(1002-1404)
Click highlighted areas on diagram
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B1150 |
KGC3#,NGC30 |
1 | ||
| 77251-B1150 |
KGC3#,NGC30 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B1150 |
KGC3#,NGC30 |
1 | ||
| 77251-B1150 |
KGC3#,NGC30 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
KGC3#,NGC30 *H,L=220 |
1 | ||
| 95333-04095 |
KGC3#,NGC30 *H,L=220 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B1100 |
KGC3#,NGC30 |
1 | ||
| 77263-B1100 |
KGC3#,NGC30 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B1100 |
KGC3#,NGC30 |
1 | ||
| 77263-B1100 |
KGC3#,NGC30 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90044-64657 |
KGC3#,NGC30 |
3 | ||
| 90044-64657 |
KGC3#,NGC30 |
3 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64754 |
KGC3#,NGC30 |
1 | ||
| 90044-64754 |
KGC3#,NGC30 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 90044-64755 |
KGC3#,NGC30 |
1 | ||
| 90044-64755 |
KGC3#,NGC30 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 90044-64766 |
KGC3#,NGC30 |
2 | ||
| 90044-64766 |
KGC3#,NGC30 |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 90044-64787 |
KGC3#,NGC30 |
1 | ||
| 90044-64787 |
KGC3#,NGC30 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-B1040 |
KGC3#,NGC30 |
1 | ||
| 77740-B1040 |
KGC3#,NGC30 |
1 | ||
| Common parts | ||||
| 91651-60640 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
