KGC30-AHEBK (2012)

Toyota Passo

Production Jun 2012 - Apr 2014
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1206- )

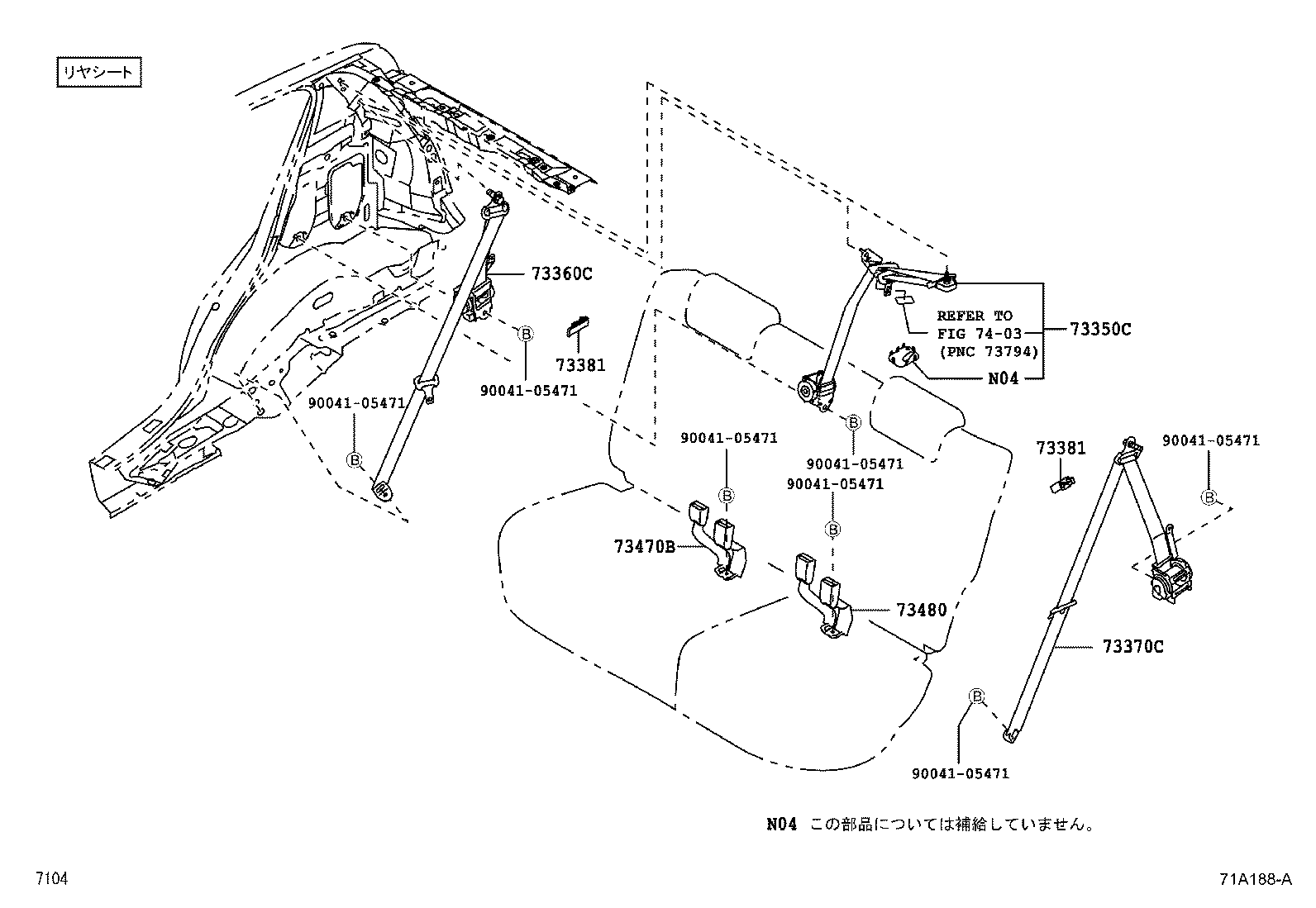

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 73350C 73360C 73370C 73381 73381 73470B 73480 7403 9004105471 9004105471 9004105471 9004105471 9004105471 9004105471 9004105471
Part # Description Qty Price
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-B1080E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-B1070E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73360-B1070E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-B1070E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73370-B1070E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73381 - HOLDER, REAR SEAT BELT
73381-B1020E0

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 2
73381-87202E3

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 2
73381 - HOLDER, REAR SEAT BELT
73381-B1020E0

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 2
73381-87202E3

KGC3#,NGC30

LINEN BEIGE,TRIM4#

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-B1110E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73470-B1150E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-B1140E0

KGC3#,NGC30

GREGE,TRIM4#

 1
73480-B1110E0

KGC3#,NGC30

GREGE,TRIM4#

 1
Common parts
90041-05471
Linked diagrams
7403
