KGC30-AHEBK (2012)
Toyota Passo

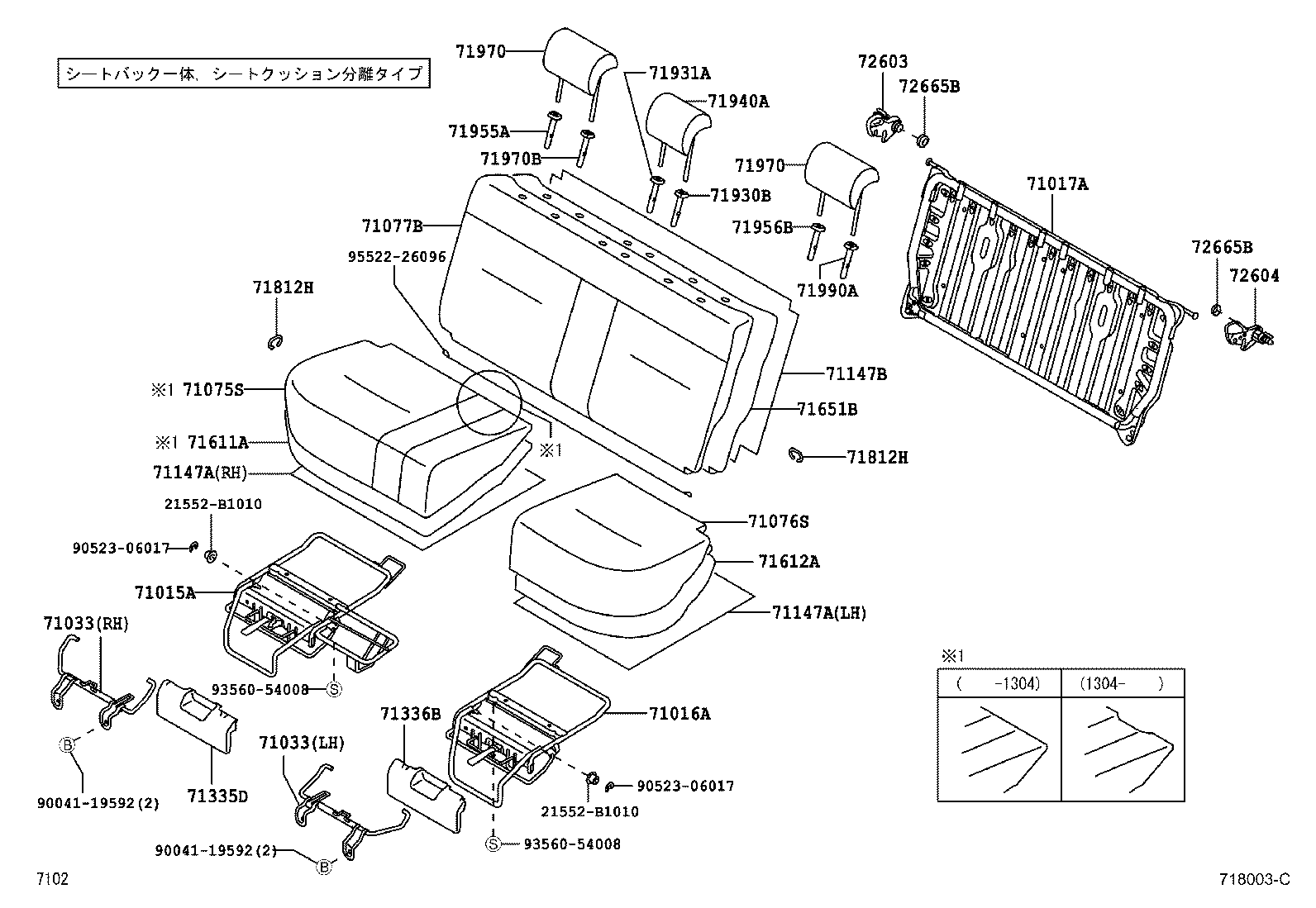

ILLUST NO. 1 OF 2(1206-1404)G ; (1206- )X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-B1120 |
KGC3#,NGC30 |
1 | ||
| 71015-B1130 |
KGC3#,NGC30 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-B1050 |
KGC3#,NGC30 |
1 | ||
| 71016-B1040 |
KGC3#,NGC30 |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-B1140 |
KGC3#,NGC30..G,X |
1 | ||
| 71017-B1110 |
KGC3#,NGC30..G,X |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-B1510E0 |
KGC3#,NGC30..HANA BROWN,TRIM4# |
1 | ||
| 71075-B1350E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71075-B1260E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1260E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1500E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1350E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-B1250E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71076-B1160E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71076-B1160E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71076-B1250E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-B1390E1 |
KGC3#,NGC30..G,X -,TRIM4# |
1 | ||
| 71077-B1610E1 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-B1180 |
KGC3#,NGC30..HANA 右側 |
1 | ||
| 71147-B1060 |
KGC3#,NGC30..HANA 左側 |
1 | ||
| 71147-B1060 |
KGC3#,NGC30..HANA 左側 |
1 | ||
| 71147-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71147-B1180 |
KGC3#,NGC30..HANA 右側 |
1 | ||
| 71147-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71335D - PLATE, REAR SEAT LEG COVER, RH | ||||
| 71335-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71335-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71336B - PLATE, REAR SEAT LEG COVER, LH | ||||
| 71336-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71336-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-B1110 |
KGC3#,NGC30 |
1 | ||
| 71503-B1110 |
KGC3#,NGC30 |
1 | ||
| 71503-B1111 |
KGC3#,NGC30 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-B1080 |
KGC3#,NGC30 |
1 | ||
| 71504-B1080 |
KGC3#,NGC30 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-B1140 |
KGC3#,NGC30..G,X |
1 | ||
| 71507-B1120 |
KGC3#,NGC30..G,X |
1 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202E3 |
KGC3#,NGC30 ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1520E0 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202E3 |
KGC3#,NGC30..HANA ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#,NGC30 ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1350E1 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71940-B1290E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
2 | ||
| 71940-B1500E0 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1350E1 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71940-B1290E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
2 | ||
| 71940-B1500E0 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71990A - SUPPORT ASSY, REAR SEAT HEADREST, LH | ||||
| 71930-97202E3 |
KGC3#,NGC30..HANA GREGE,TRIM4# |
1 | ||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72603-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72604-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 21552-B1010 | ||||
| 90041-19592 | ||||
| 90523-06017 | ||||
| 93560-54008 | ||||
| 95522-26096 | ||||

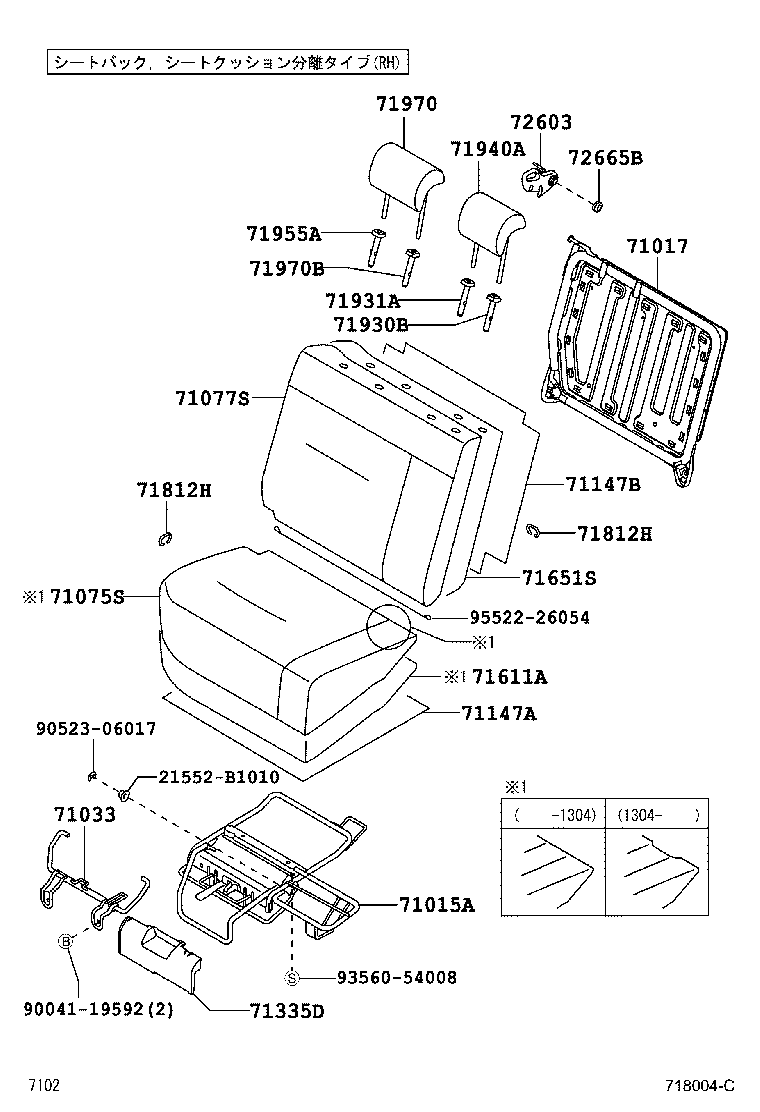

ILLUST NO. 1 OF 3(1206- )HANA,X ; (1404- )G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-B1130 |
KGC3#,NGC30 |
1 | ||
| 71015-B1120 |
KGC3#,NGC30 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-B1130 |
KGC3#,NGC30..HANA |
1 | ||
| 71017-B1120 |
KGC3#,NGC30..HANA |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71033-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71033-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-B1510E0 |
KGC3#,NGC30..HANA BROWN,TRIM4# |
1 | ||
| 71075-B1350E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71075-B1260E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1260E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1500E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
1 | ||
| 71075-B1350E0 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-B1470E1 |
KGC3#,NGC30..HANA BROWM,TRIM4# |
1 | ||
| 71077-B1640E1 |
KGC3#,NGC30..HANA BROWN,TRIM4# |
1 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1040 |
KGC3#,NGC30 左側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147-B1030 |
KGC3#,NGC30 右側 |
1 | ||
| 71147B - SILENCER, SEAT SPRING | ||||
| 71147-B1180 |
KGC3#,NGC30..HANA 右側 |
1 | ||
| 71147-B1060 |
KGC3#,NGC30..HANA 左側 |
1 | ||
| 71147-B1060 |
KGC3#,NGC30..HANA 左側 |
1 | ||
| 71147-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71147-B1180 |
KGC3#,NGC30..HANA 右側 |
1 | ||
| 71147-B1150 |
KGC3#,NGC30..G,X |
1 | ||
| 71335D - PLATE, REAR SEAT LEG COVER, RH | ||||
| 71335-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71335-B1010B0 |
KGC3#,NGC30 DK.GRAY,TRIM4# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-B1110 |
KGC3#,NGC30 |
1 | ||
| 71503-B1110 |
KGC3#,NGC30 |
1 | ||
| 71503-B1111 |
KGC3#,NGC30 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-B1130 |
KGC3#,NGC30..HANA |
1 | ||
| 71507-B1150 |
KGC3#,NGC30..HANA |
1 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..G,X |
53 | ||
| 71812-87201 |
KGC3#,NGC30..HANA |
56 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202E3 |
KGC3#,NGC30 ﾛｯｸ無,GREGE,TRIM4# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1520E0 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71931-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-B1350E1 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71940-B1290E0 |
KGC3#,NGC30..G,X BEIGE,TRIM4# |
2 | ||
| 71940-B1500E0 |
KGC3#,NGC30..HANA BEIGE,TRIM4# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 71930-97202E3 |
KGC3#,NGC30 GREGE,TRIM4# |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72603-B2010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| 72665-B1010E0 |
KGC3#,NGC30 LINEN BEIGE,TRIM4# |
2 | ||
| Common parts | ||||
| 21552-B1010 | ||||
| 90041-19592 | ||||
| 90523-06017 | ||||
| 93560-54008 | ||||
| 95522-26054 | ||||
