KGC30-AHEBK (2012)
Toyota Passo

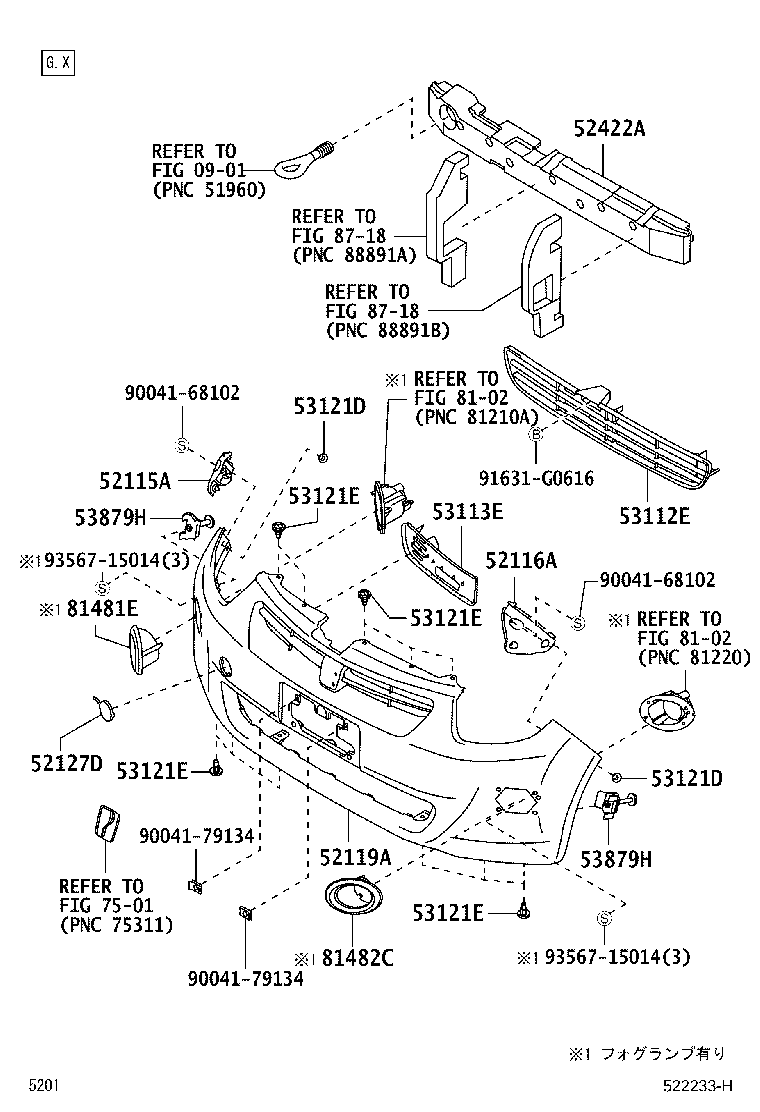

(1002-1404)G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-B1050 |
KGC3#,NGC30 |
1 | ||
| 52115-B1050 |
KGC3#,NGC30 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-B1050 |
KGC3#,NGC30 |
1 | ||
| 52116-B1050 |
KGC3#,NGC30 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-B1190A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52119-B1190C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52119-B1200B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52119-B1190A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1190B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52119-B1190D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52119-B1190J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1190K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1200G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52119-B1200D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52119-B1200J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1190E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52119-B1200E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52119-B1200C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52119-B1190D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52119-B1190A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1200D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52119-B1190A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52119-B1200A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1190B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52119-B1190E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52119-B1190J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1200C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52119-B1190D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52119-B1200A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1200K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1190C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52119-B1200D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1200E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52119-B1200D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52119-B1200K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1190K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1200G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52119-B1200D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52119-B1190D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-B1180C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52127-B1170D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52127-B1170C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52127-B1170A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1170J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1170B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52127-B1170E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52127-B1180A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52127-B1180D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52127-B1180D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52127-B1170A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52127-B1180J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1180B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52127-B1170A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52127-B1170C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52127-B1170D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1170K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1170D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52127-B1180G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52127-B1170J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1170D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52127-B1180K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1180A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52127-B1170E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52127-B1180B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52127-B1170B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52127-B1180K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1170K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1180D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1180D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52127-B1180G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52127-B1170A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-B1140 |
KGC3#,NGC30..HANA |
1 | ||
| 53112-B1140 |
KGC3#,NGC30..HANA |
1 | ||
| 53112-B1130 |
KGC3#,NGC30..G,X |
1 | ||
| 53112-B1130 |
KGC3#,NGC30..G,X |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 53113-B1080 |
KGC3#,NGC30..HANA |
1 | ||
| 53113-B1080 |
KGC3#,NGC30..HANA |
1 | ||
| 53113-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 53121D - CLIP(FOR FRONT BUMPER), NO.2 | ||||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 53121D - CLIP(FOR FRONT BUMPER), NO.2 | ||||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-B1130K0 |
KGC3#,NGC30..G,X D−OPT(35W),GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 81481-B1130B0 |
KGC3#,NGC30..G,X D−OPT(35W),SILVER ME.,S28 |
1 | ||
| 81481-B1130A0 |
KGC3#,NGC30..G,X D−OPT(35W),WHITE,W09 |
1 | ||
| 81481-B1130C0 |
KGC3#,NGC30..G,X D−OPT(35W),BLACK M.M.,X07 |
1 | ||
| 81481-B1130A1 |
KGC3#,NGC30..G,X D−OPT(35W),WHITE PEARL.MC.,W16 |
1 | ||
| 81481-B1130E0 |
KGC3#,NGC30..G,X D−OPT(35W),BEIGE.ME.,T25 |
1 | ||
| 81481-B1130D1 |
KGC3#,NGC30..G,X D−OPT(35W),LT.ORANGE.M.M.,R62 |
1 | ||
| 81481-B1130D1 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),LT.ORANGE.M.M.,R62 |
1 | ||
| 81481-B1130D0 |
KGC3#,NGC30..G,X D−OPT(35W),RED,R40 |
1 | ||
| 81481-B1130J0 |
KGC3#,NGC30..G,X D−OPT(35W),LT.BLUE ME.OP.,B57 |
1 | ||
| 81481-B1130C0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),BLACK M.M.,X07 |
1 | ||
| 81481-B1130J0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),LT.BLUE ME.OP.,B57 |
1 | ||
| 81481-B1130A0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),WHITE,W09 |
1 | ||
| 81481-B1130A1 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),WHITE PEARL.MC.,W16 |
1 | ||
| 81481-B1130B0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),SILVER ME.,S28 |
1 | ||
| 81481-B1130K0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 81481-B1130E0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),BEIGE.ME.,T25 |
1 | ||
| 81481-B1130D0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),RED,R40 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-B1130B0 |
KGC3#,NGC30..G,X D−OPT(35W),SILVER ME.,S28 |
1 | ||
| 81482-B1130D0 |
KGC3#,NGC30..G,X D−OPT(35W),RED,R40 |
1 | ||
| 81482-B1130J0 |
KGC3#,NGC30..G,X D−OPT(35W),LT.BLUE ME.OP.,B57 |
1 | ||
| 81482-B1130A1 |
KGC3#,NGC30..G,X D−OPT(35W),WHITE PEARL.MC.,W16 |
1 | ||
| 81482-B1130A0 |
KGC3#,NGC30..G,X D−OPT(35W),WHITE,W09 |
1 | ||
| 81482-B1130C0 |
KGC3#,NGC30..G,X D−OPT(35W),BLACK M.M.,X07 |
1 | ||
| 81482-B1130E0 |
KGC3#,NGC30..G,X D−OPT(35W),BEIGE.ME.,T25 |
1 | ||
| 81482-B1130D1 |
KGC3#,NGC30..G,X D−OPT(35W),LT.ORANGE.M.M.,R62 |
1 | ||
| 81482-B1130A0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),WHITE,W09 |
1 | ||
| 81482-B1130D1 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),LT.ORANGE.M.M.,R62 |
1 | ||
| 81482-B1130K0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 81482-B1130A1 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),WHITE PEARL.MC.,W16 |
1 | ||
| 81482-B1130D0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),RED,R40 |
1 | ||
| 81482-B1130B0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),SILVER ME.,S28 |
1 | ||
| 81482-B1130K0 |
KGC3#,NGC30..G,X D−OPT(35W),GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 81482-B1130C0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),BLACK M.M.,X07 |
1 | ||
| 81482-B1130E0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),BEIGE.ME.,T25 |
1 | ||
| 81482-B1130J0 |
KGC3#,NGC30..G,X D−OPT(ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ),LT.BLUE ME.OP.,B57 |
1 | ||
| Common parts | ||||
| 90041-68102 | ||||
| 90041-79134 | ||||
| 91631-G0616 | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 7501 | ||||
| 8102 | ||||
| 8718 | ||||

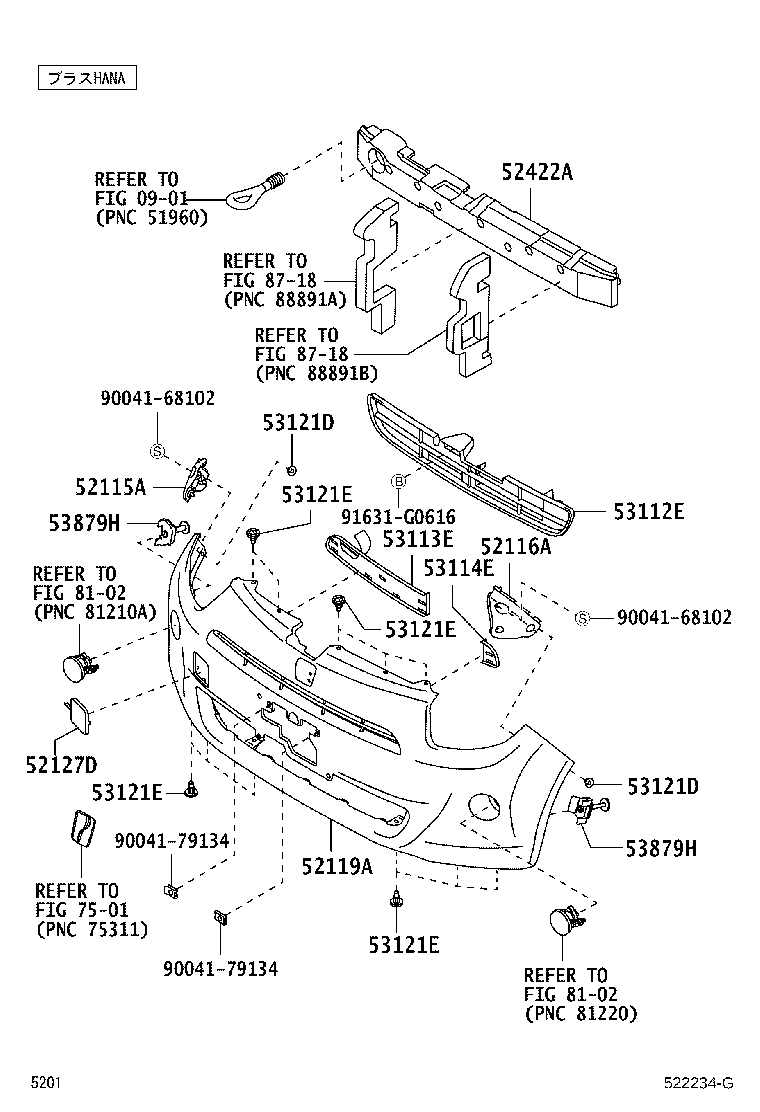

(1002-1404)HANA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-B1050 |
KGC3#,NGC30 |
1 | ||
| 52115-B1050 |
KGC3#,NGC30 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-B1050 |
KGC3#,NGC30 |
1 | ||
| 52116-B1050 |
KGC3#,NGC30 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-B1190A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52119-B1190C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52119-B1200B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52119-B1190A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1190B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52119-B1190D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52119-B1190J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1190K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1200G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52119-B1200D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52119-B1200J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1190E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52119-B1200E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52119-B1200C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52119-B1190D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52119-B1190A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1200D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52119-B1190A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52119-B1200A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1190B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52119-B1190E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52119-B1190J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1200C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52119-B1190D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52119-B1200A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52119-B1200K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1190C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52119-B1200D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52119-B1200J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52119-B1200E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52119-B1200D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52119-B1200K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1190K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52119-B1200G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52119-B1200D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52119-B1190D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-B1180C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52127-B1170D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52127-B1170C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52127-B1170A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1170J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1170B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52127-B1170E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52127-B1180A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52127-B1180D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52127-B1180D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52127-B1170A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52127-B1180J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1180B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52127-B1170A0 |
KGC3#,NGC30..G,X WHITE,W09 |
1 | ||
| 52127-B1170C0 |
KGC3#,NGC30..G,X BLACK M.M.,X07 |
1 | ||
| 52127-B1170D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1170K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1170D1 |
KGC3#,NGC30..G,X LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180C0 |
KGC3#,NGC30..HANA BLACK M.M.,X07 |
1 | ||
| 52127-B1180G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52127-B1170J0 |
KGC3#,NGC30..G,X LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1170D0 |
KGC3#,NGC30..G,X RED,R40 |
1 | ||
| 52127-B1180K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1180A0 |
KGC3#,NGC30..HANA WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180E0 |
KGC3#,NGC30..HANA BEIGE.ME.,T25 |
1 | ||
| 52127-B1170E0 |
KGC3#,NGC30..G,X BEIGE.ME.,T25 |
1 | ||
| 52127-B1180B0 |
KGC3#,NGC30..HANA SILVER ME.,S28 |
1 | ||
| 52127-B1170B0 |
KGC3#,NGC30..G,X SILVER ME.,S28 |
1 | ||
| 52127-B1180K0 |
KGC3#,NGC30..HANA GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1170K0 |
KGC3#,NGC30..G,X GRAYISH PURPLE ME.OP.,P12 |
1 | ||
| 52127-B1180D2 |
KGC3#,NGC30..HANA LT.ORANGE.M.M.,R62 |
1 | ||
| 52127-B1180J0 |
KGC3#,NGC30..HANA LT.BLUE ME.OP.,B57 |
1 | ||
| 52127-B1180D1 |
KGC3#,NGC30..HANA DK.RED.MC,R54 |
1 | ||
| 52127-B1180G0 |
KGC3#,NGC30..HANA LT.GREEN.ME.,G50 |
1 | ||
| 52127-B1170A1 |
KGC3#,NGC30..G,X WHITE PEARL.MC.,W16 |
1 | ||
| 52127-B1180D0 |
KGC3#,NGC30..HANA RED,R40 |
1 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 52422-B1040 |
KGC3#,NGC30 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-B1140 |
KGC3#,NGC30..HANA |
1 | ||
| 53112-B1140 |
KGC3#,NGC30..HANA |
1 | ||
| 53112-B1130 |
KGC3#,NGC30..G,X |
1 | ||
| 53112-B1130 |
KGC3#,NGC30..G,X |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 53113-B1080 |
KGC3#,NGC30..HANA |
1 | ||
| 53113-B1080 |
KGC3#,NGC30..HANA |
1 | ||
| 53113-B1070 |
KGC3#,NGC30..G,X |
1 | ||
| 53114E - GRILLE, RADIATOR, UPPER | ||||
| 53114-B1050 |
KGC3#,NGC30..HANA |
1 | ||
| 53114-B1050 |
KGC3#,NGC30..HANA |
1 | ||
| 53121D - CLIP(FOR FRONT BUMPER), NO.2 | ||||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 53121D - CLIP(FOR FRONT BUMPER), NO.2 | ||||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 90044-67555 |
KGC3#,NGC30 |
2 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 90044-68320 |
KGC3#,NGC30 |
11 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| 53879-28010 |
KGC3#,NGC30 |
2 | ||
| Common parts | ||||
| 90041-68102 | ||||
| 90041-79134 | ||||
| 91631-G0616 | ||||
| Linked diagrams | ||||
| 0901 | ||||
| 7501 | ||||
| 8102 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
