KGC30-AHEBK (2012)

Toyota Passo

Production Jun 2012 - Apr 2014
Engine 1KRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1002-1404)KGC3#

Click highlighted areas on diagram

C0B

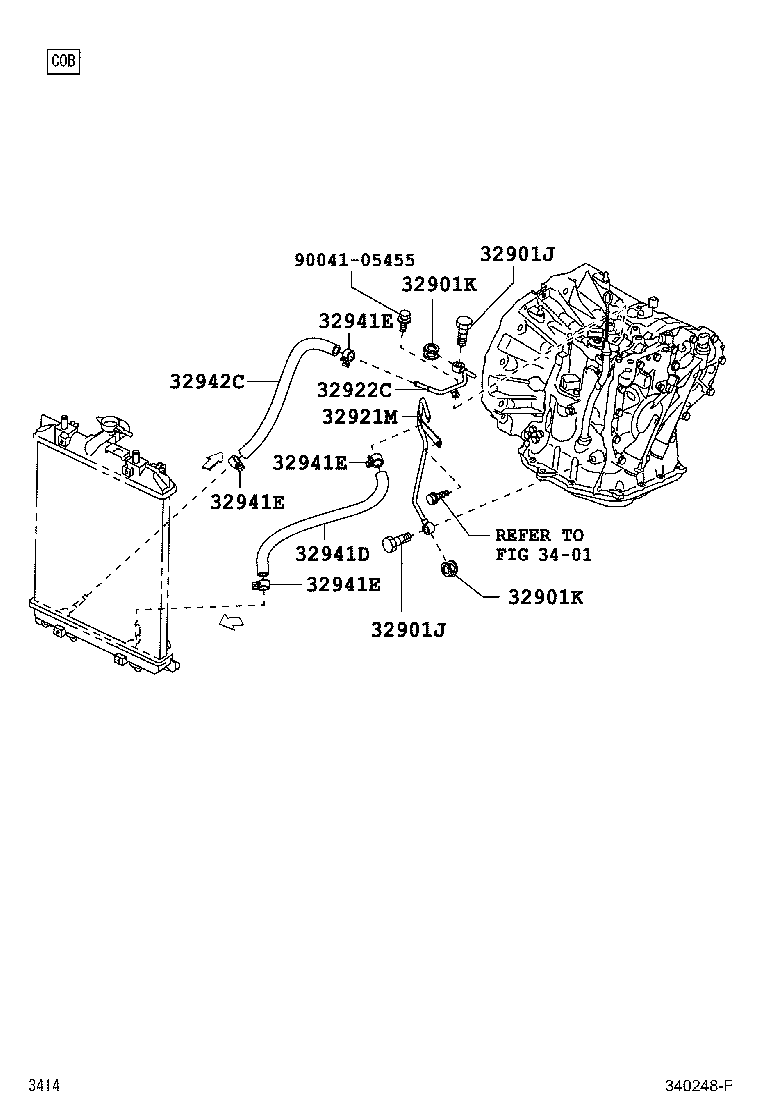

diagram 32901J 32901J 32901K 32901K 32921M 32922C 32941D 32941E 32941E 32941E 32941E 32942C 3401 9004105455
Part # Description Qty Price
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081

KGC3#

 2
90044-01081

KGC3#

 2
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081

KGC3#

 2
90044-01081

KGC3#

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

KGC3#

 2
90044-30326

KGC3#

 2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329

KGC3#

 2
90044-30326

KGC3#

 2
32921M - TUBE, OIL COOLER INLET, NO.1
32904-B1030

KGC3#

 1
32904-B1031

KGC3#

 1
32922C - TUBE, OIL COOLER OUTLET, NO.1
32905-B1060

KGC3#

 1
32905-B1060

KGC3#

 1
32941D - HOSE, OIL COOLER INLET
32941-B1051

KGC3#

 1
32941-B1050

KGC3#

 1
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

KGC3#

 4
90044-67576

KGC3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

KGC3#

 4
90044-67576

KGC3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

KGC3#

 4
90044-67576

KGC3#

 4
32941E - CLIP(FOR OIL COOLER TUBE)
90044-67576

KGC3#

 4
90044-67576

KGC3#

 4
32942C - HOSE, OIL COOLER OUTLET, NO.1
32942-B1050

KGC3#

 1
32942-B1050

KGC3#

 1
Common parts
90041-05455
Linked diagrams
3401
