KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)1KRFE

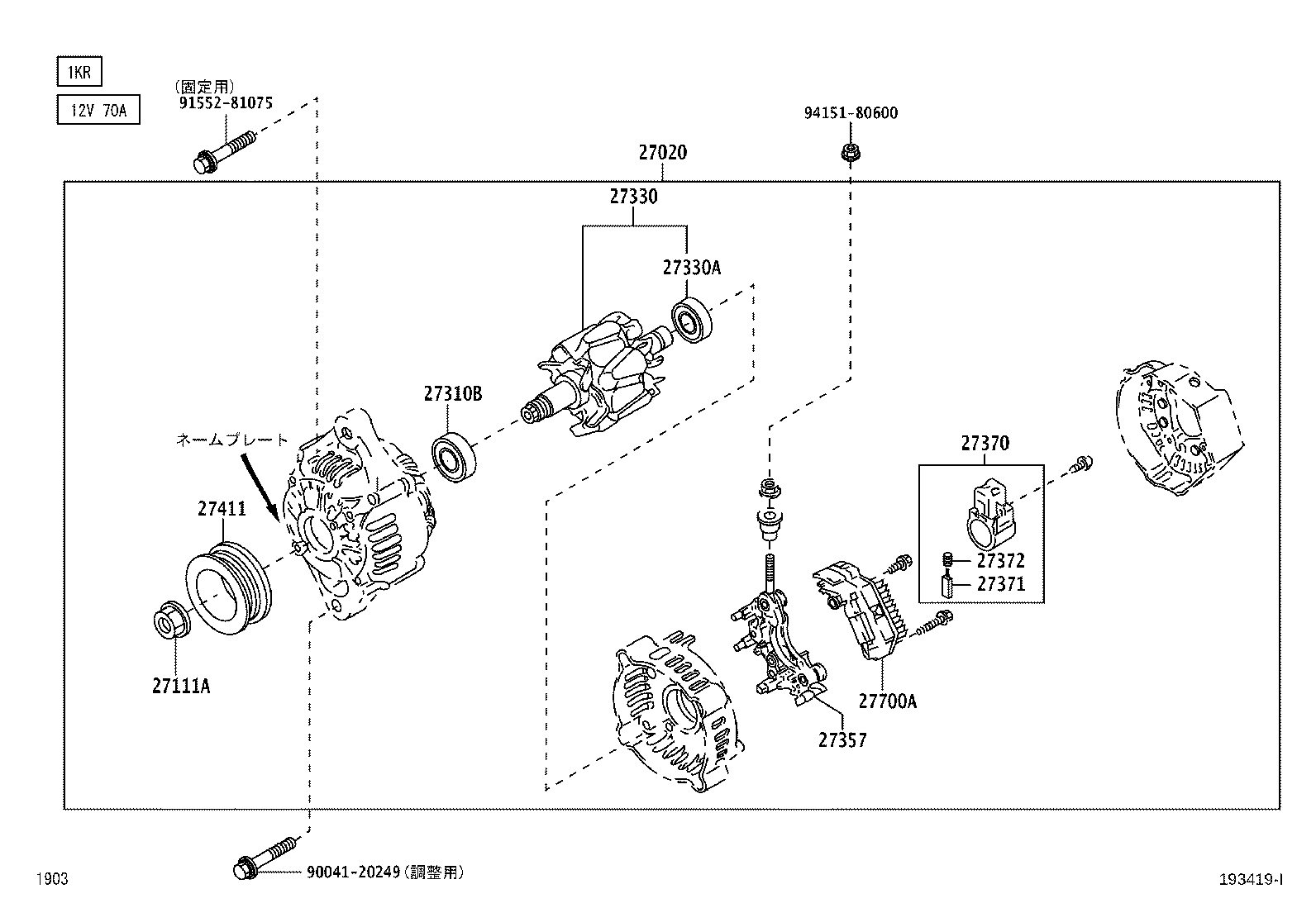

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-B1101 |
1KRFE..KGC3# 12V 70A |
1 | ||
| 27060-B1100 |
1KRFE..KGC3# 12V 70A |
1 | ||
| 27060-B1100 |
1KRFE..KGC3# 12V 70A |
1 | ||
| 27111A - NUT, ALTERNATOR | ||||
| 90099-05171 |
1KRFE..KGC3# |
1 | ||
| 90099-05171 |
1KRFE..KGC3# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27791-87707 |
1KRFE..KGC3# |
1 | ||
| 9004C-37003 |
1KRFE..KGC3# ﾈｰﾑﾌﾟﾚｰﾄ:橙色 |
1 | ||
| 9004C-37002 |
1KRFE..KGC3# ﾈｰﾑﾌﾟﾚｰﾄ:青色 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-87716 |
1KRFE..KGC3# |
1 | ||
| 27330-87716 |
1KRFE..KGC3# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 27791-87708 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 27791-87708 |
1KRFE,1NRFE..KGC3#,NGC30 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-87712 |
1KRFE..KGC3# |
1 | ||
| 27357-87712 |
1KRFE..KGC3# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-87205 |
1KRFE..KGC3# |
1 | ||
| 27370-87205 |
1KRFE..KGC3# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-87501 |
1KRFE..KGC3# |
2 | ||
| 27371-87501 |
1KRFE..KGC3# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-87501 |
1KRFE..KGC3# |
2 | ||
| 27372-87501 |
1KRFE..KGC3# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-B1010 |
1KRFE..KGC3# |
1 | ||
| 27411-B1010 |
1KRFE..KGC3# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-B2030 |
1KRFE..KGC3# |
1 | ||
| 27700-B2030 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 90041-20249 | ||||
| 91552-81075 | ||||
| 94151-80600 | ||||
