KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)1KRFE

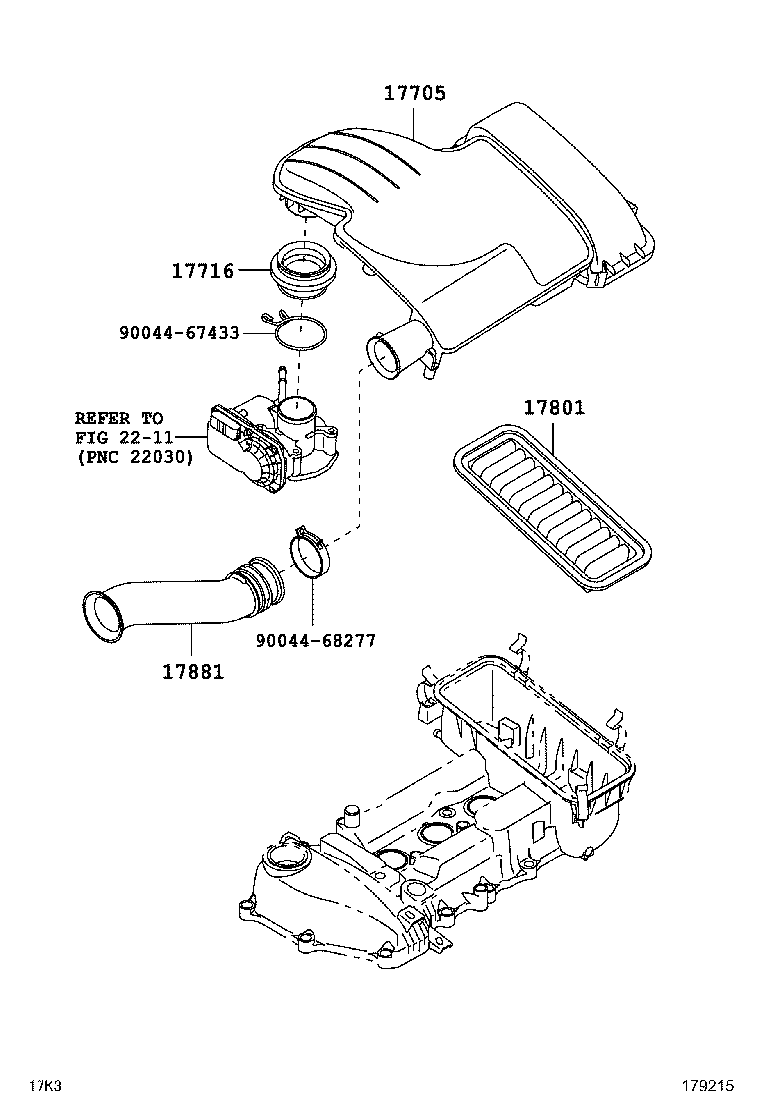

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-B1080 |
1KRFE..KGC3# |
1 | ||
| 17705-B1080 |
1KRFE..KGC3# |
1 | ||
| 17716 - SUPPORT,AIR CLEANER CAP | ||||
| 17716-B1010 |
1KRFE..KGC3# |
1 | ||
| 17716-B1010 |
1KRFE..KGC3# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23030 |
1KRFE..KGC3# |
1 | ||
| 17801-23030 |
1KRFE..KGC3# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-B1120 |
1KRFE..KGC3# |
1 | ||
| 17881-B1120 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 90044-67433 | ||||
| 90044-68277 | ||||
| Linked diagrams | ||||
| 2211 | ||||
