KGC30-AHEBK (2012)
Toyota Passo
Production
Jun 2012
-
Apr 2014
Engine
1KRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1002-1404)1KRFE

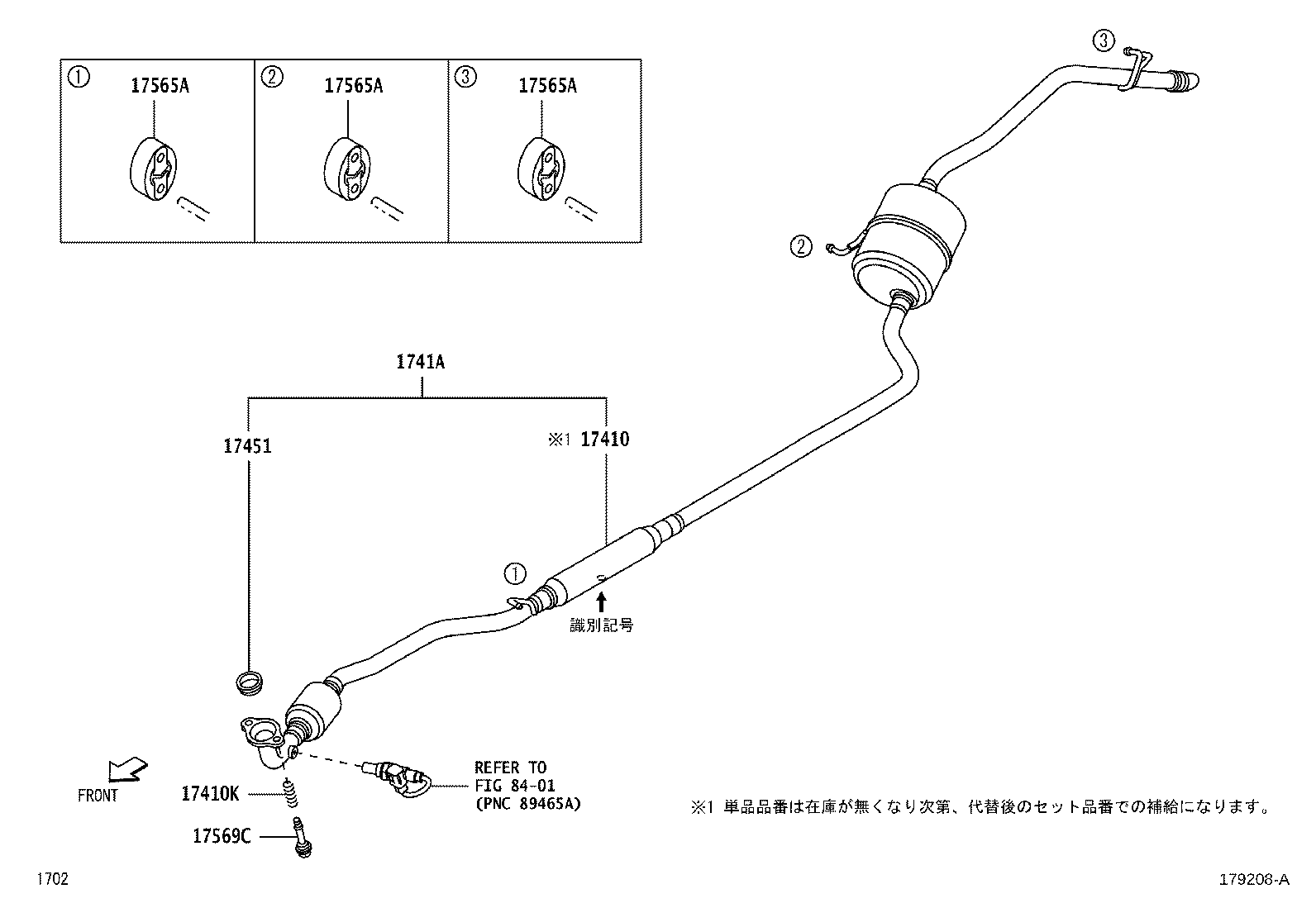

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-B1251 |
1KRFE..KGC3# 識別記号 = A |
1 | ||
| 17410-B1251 |
1KRFE..KGC3# |
1 | ||
| 17410K - SPRING, EXHAUST PIPE | ||||
| 17152-97201 |
1KRFE,1NRFE..KGC3#,NGC30 |
2 | ||
| 17152-97201 |
1KRFE,1NRFE..KGC3#,NGC30 |
2 | ||
| 1741A - PIPE SET, EXHAUST | ||||
| 17410-B9670 |
1KRFE..KGC3# |
1 | ||
| 17410-B9670 |
1KRFE..KGC3# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-B1021 |
1KRFE..KGC3# |
1 | ||
| 17451-B1021 |
1KRFE..KGC3# |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17567-B2010 |
1KRFE,1NRFE..KGC3#,NGC30 |
3 | ||
| 17569C - BOLT, EXHAUST PIPE SUPPORT | ||||
| 17569-97201 |
1KRFE,1NRFE..KGC3#,NGC30 |
2 | ||
| 17569-97201 |
1KRFE,1NRFE..KGC3#,NGC30 |
2 | ||
| Linked diagrams | ||||
| 8401 | ||||
