KGC30-AHEBK (2012)
Toyota Passo

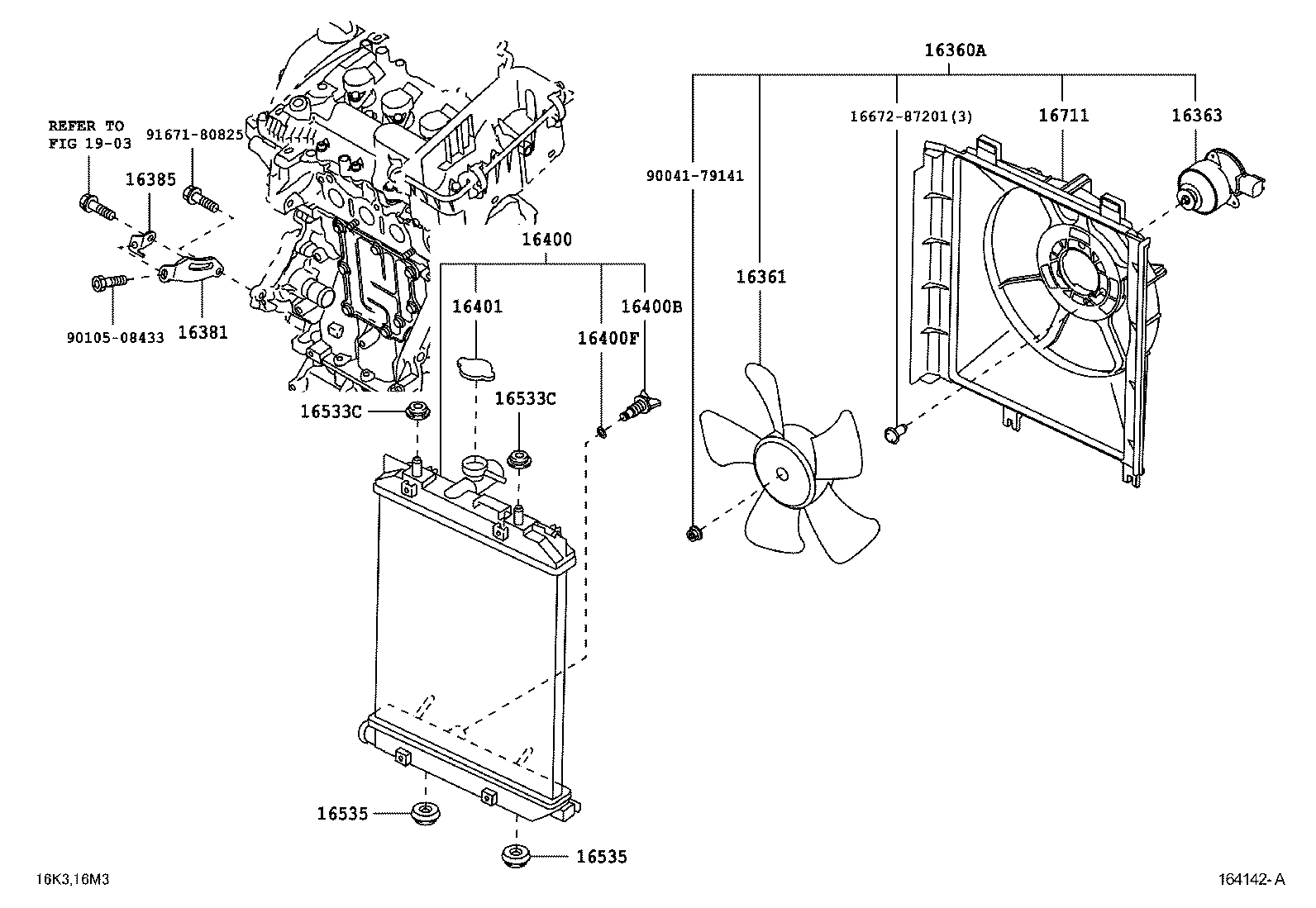

ILLUST NO. 1 OF 2(1002-1404)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B1171 |
1KRFE..KGC3# |
1 | ||
| 16360-B1171 |
1KRFE..KGC3# |
1 | ||
| 16361 - FAN | ||||
| 16361-B1070 |
1KRFE..KGC3# |
1 | ||
| 16361-B1070 |
1KRFE..KGC3# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B1040 |
1KRFE..KGC3# |
1 | ||
| 16363-B1040 |
1KRFE..KGC3# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-B1050 |
1KRFE..KGC3# |
1 | ||
| 16381-B1060 |
1KRFE..KGC3# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-40011 |
1KRFE..KGC3# |
1 | ||
| 16385-40011 |
1KRFE..KGC3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B1300 |
1KRFE..KGC3# |
1 | ||
| 16400-B1300 |
1KRFE..KGC3# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1KRFE..KGC3# |
1 | ||
| 16417-21280 |
1KRFE..KGC3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
1KRFE..KGC3# |
1 | ||
| 16442-97201 |
1KRFE..KGC3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-97202 |
1KRFE..KGC3# |
1 | ||
| 16401-97202 |
1KRFE..KGC3# |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
1KRFE..KGC3# |
2 | ||
| 90044-80621 |
1KRFE..KGC3# |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
1KRFE..KGC3# |
2 | ||
| 90044-80621 |
1KRFE..KGC3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
1KRFE..KGC3# |
2 | ||
| 90044-80592 |
1KRFE..KGC3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
1KRFE..KGC3# |
2 | ||
| 90044-80592 |
1KRFE..KGC3# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-B1070 |
1KRFE..KGC3# |
1 | ||
| 16711-B1070 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 90041-79141 | ||||
| 90105-08433 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||

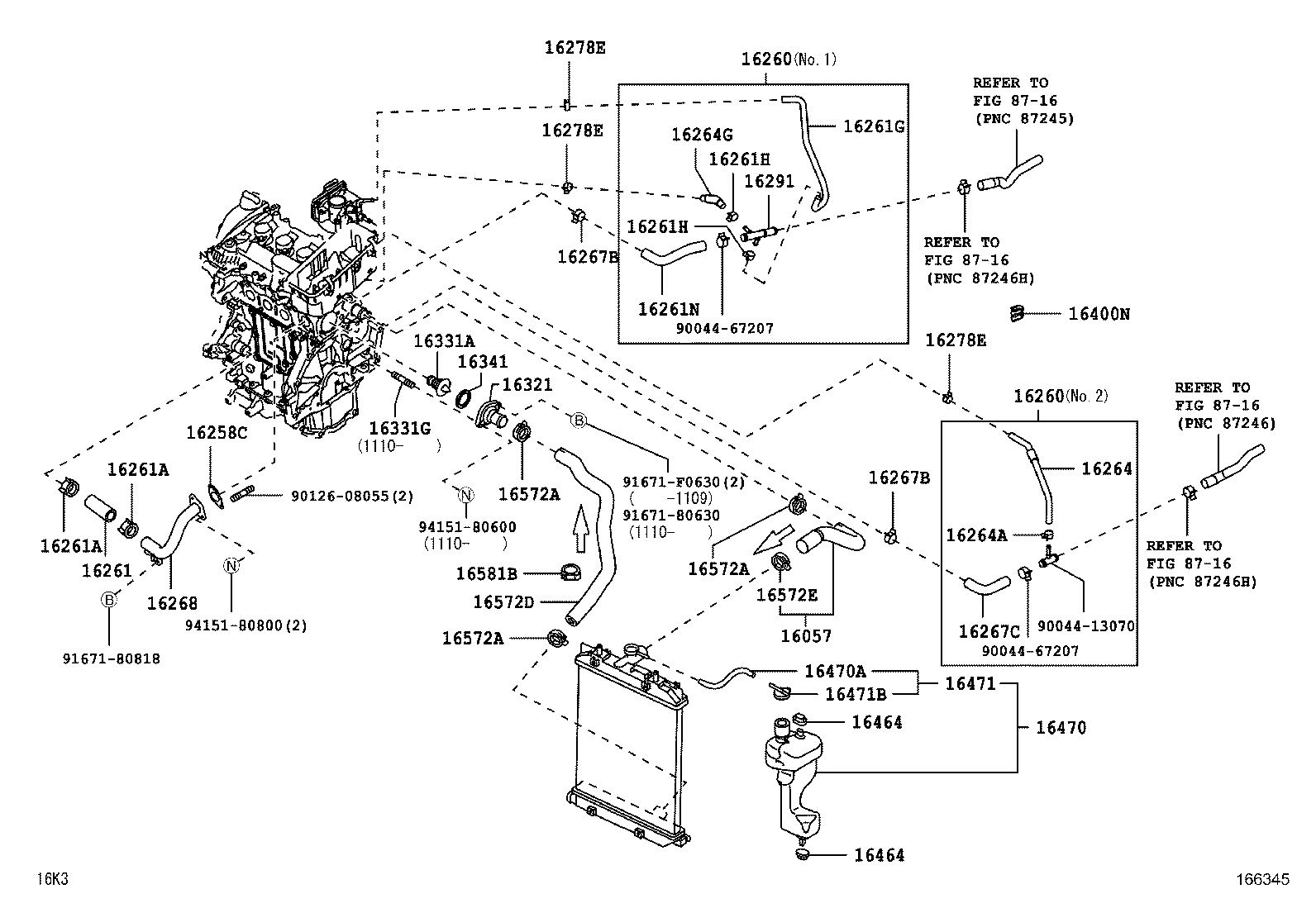

ILLUST NO. 2 OF 2(1002-1404)1KRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057 - HOSE SUB-ASSY, RADIATOR | ||||
| 16057-B1050 |
1KRFE..KGC3# |
1 | ||
| 16057-B1050 |
1KRFE..KGC3# |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-40020 |
1KRFE..KGC3# |
1 | ||
| 16258-40020 |
1KRFE..KGC3# |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B1020 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16260-B1030 |
1KRFE..KGC3# NO.2 |
1 | ||
| 16260-B1020 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16260-B1030 |
1KRFE..KGC3# NO.2 |
1 | ||
| 16260-B1110 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-B1020 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16260-B1030 |
1KRFE..KGC3# NO.2 |
1 | ||
| 16260-B1020 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16260-B1030 |
1KRFE..KGC3# NO.2 |
1 | ||
| 16260-B1110 |
1KRFE..KGC3# NO.1 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-40111 |
1KRFE..KGC3# |
1 | ||
| 16261-40111 |
1KRFE..KGC3# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KGC3# |
2 | ||
| 90466-30001 |
1KRFE..KGC3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-30001 |
1KRFE..KGC3# |
2 | ||
| 90466-30001 |
1KRFE..KGC3# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-B1190 |
1KRFE..KGC3# |
1 | ||
| 16261-B1190 |
1KRFE..KGC3# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
1KRFE..KGC3# |
2 | ||
| 90044-67301 |
1KRFE..KGC3# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67301 |
1KRFE..KGC3# |
2 | ||
| 90044-67301 |
1KRFE..KGC3# |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B1150 |
1KRFE..KGC3# |
1 | ||
| 16261-B1150 |
1KRFE..KGC3# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B1030 |
1KRFE..KGC3# |
1 | ||
| 16264-B1030 |
1KRFE..KGC3# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-67301 |
1KRFE..KGC3# |
1 | ||
| 90044-67301 |
1KRFE..KGC3# |
1 | ||
| 16264G - HOSE, WATER BY-PASS, NO.3 | ||||
| 16261-B1180 |
1KRFE..KGC3# |
1 | ||
| 16261-B1180 |
1KRFE..KGC3# |
1 | ||
| 16261-B1320 |
1KRFE..KGC3# |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KRFE..KGC3# |
2 | ||
| 96136-42501 |
1KRFE..KGC3# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1KRFE..KGC3# |
2 | ||
| 96136-42501 |
1KRFE..KGC3# |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16261-B1140 |
1KRFE..KGC3# |
1 | ||
| 16261-B1140 |
1KRFE..KGC3# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-40010 |
1KRFE..KGC3# |
1 | ||
| 16268-40010 |
1KRFE..KGC3# |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 90044-67301 |
1KRFE..KGC3# |
3 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-B1020 |
1KRFE..KGC3# |
1 | ||
| 16291-B1020 |
1KRFE..KGC3# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-40010 |
1KRFE..KGC3# |
1 | ||
| 16321-40010 |
1KRFE..KGC3# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03134 |
1KRFE..KGC3# |
1 | ||
| 90916-03134 |
1KRFE..KGC3# |
1 | ||
| 16331G - BOLT, STUD(FOR WATER INLET) | ||||
| 92132-80625 |
1KRFE..KGC3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
1KRFE..KGC3# |
1 | ||
| 16341-35010 |
1KRFE..KGC3# |
1 | ||
| 16400N - CLAMP, NO.2 | ||||
| 90044-64775 |
1KRFE..KGC3# |
1 | ||
| 90044-64775 |
1KRFE..KGC3# |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
1KRFE..KGC3# |
2 | ||
| 16464-97201 |
1KRFE..KGC3# |
2 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
1KRFE..KGC3# |
2 | ||
| 16464-97201 |
1KRFE..KGC3# |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B1050 |
1KRFE..KGC3# |
1 | ||
| 16470-B1050 |
1KRFE..KGC3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B1030 |
1KRFE..KGC3# |
1 | ||
| 16472-B1030 |
1KRFE..KGC3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B1040 |
1KRFE..KGC3# |
1 | ||
| 16405-B1040 |
1KRFE..KGC3# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16471-87402 |
1KRFE..KGC3# |
1 | ||
| 16471-87402 |
1KRFE..KGC3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 90044-66014 |
1KRFE..KGC3# |
3 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B1060 |
1KRFE..KGC3# |
1 | ||
| 16572-B1060 |
1KRFE..KGC3# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-67482 |
1KRFE..KGC3# |
1 | ||
| 90044-67482 |
1KRFE..KGC3# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90044-64833 |
1KRFE..KGC3# |
1 | ||
| 90044-64833 |
1KRFE..KGC3# |
1 | ||
| Common parts | ||||
| 90044-13070 | ||||
| 90044-67207 | ||||
| 90126-08055 | ||||
| 91671-80630 | ||||
| 91671-80818 | ||||
| 91671-F0630 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8716 | ||||
